Instruments - Analog or Digital Cluster Inoperative

9227cadillac01

Bulletin No. T-92-91
File in Group 8
Number 149
Corp. Ref. No. 218305
Date April, 1992


SUBJECT:
INOPERATIVE ANALOG OR DIGITAL CLUSTER

MODELS AFFECTED:
1992 ELDORADOS AND SEVILLES


Some 1992 Eldorados and Sevilles may experience an inoperative analog or digital cluster.

This condition may be caused by loose ground G304 which is located in the left-hand kick panel. If this ground is loose, the cluster could be damaged as a result of operating other components sharing this ground (such as: power window switch, LH outside mirror, power mirror switch, shift interlock solenoid, and LH door flood light).

To repair this condition perform the following procedure:

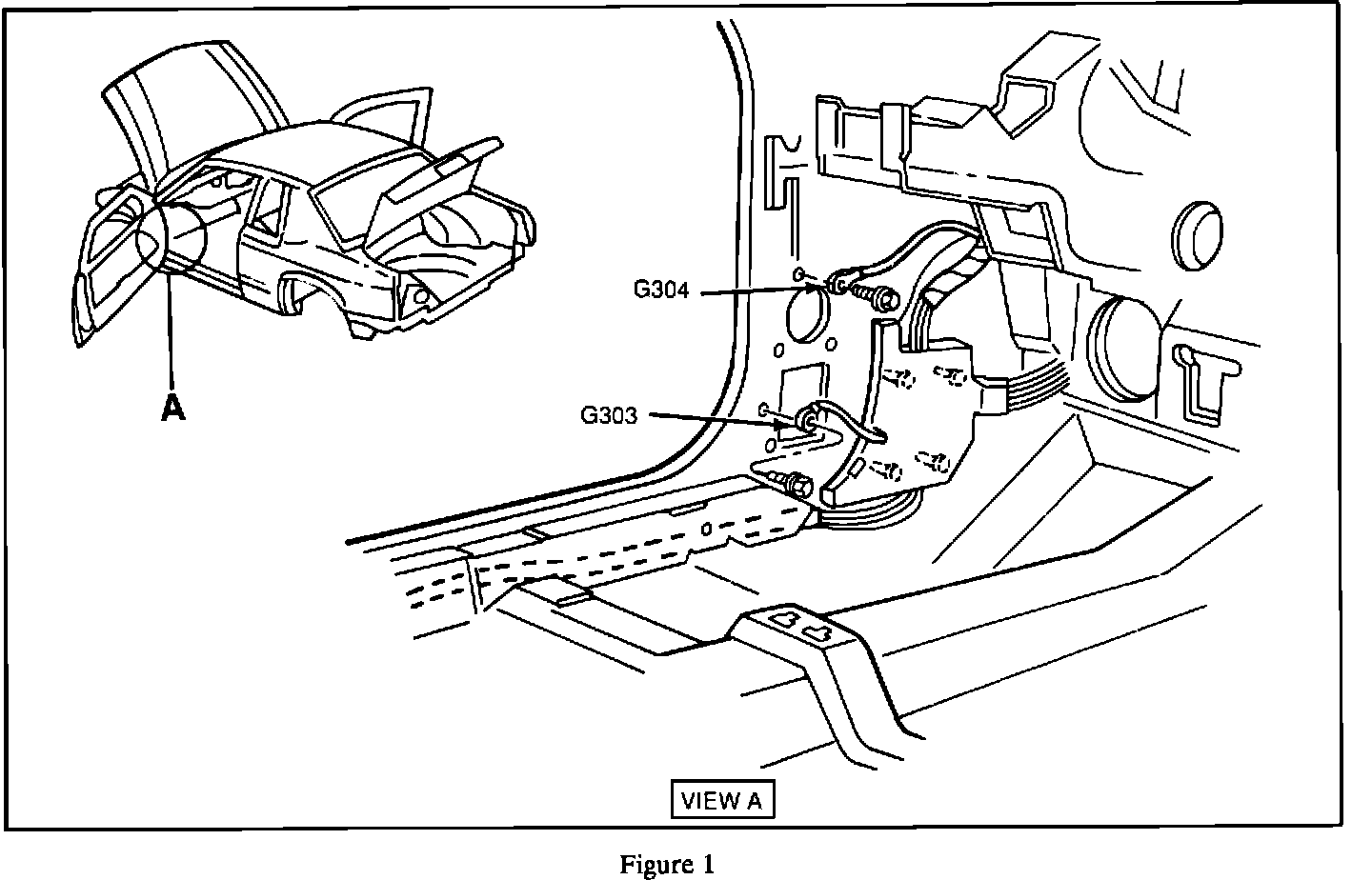

1. Check for good terminal connection at ground G304. Refer to Figure 1 for G304 location.

2. If ground G304 is loose/damaged, repair and tighten the ground bolt to 9.0 N-m (6.6 lbs.ft.) and exchange the cluster using the procedure found in Dealer Service Information Bulletin 92-I-1.

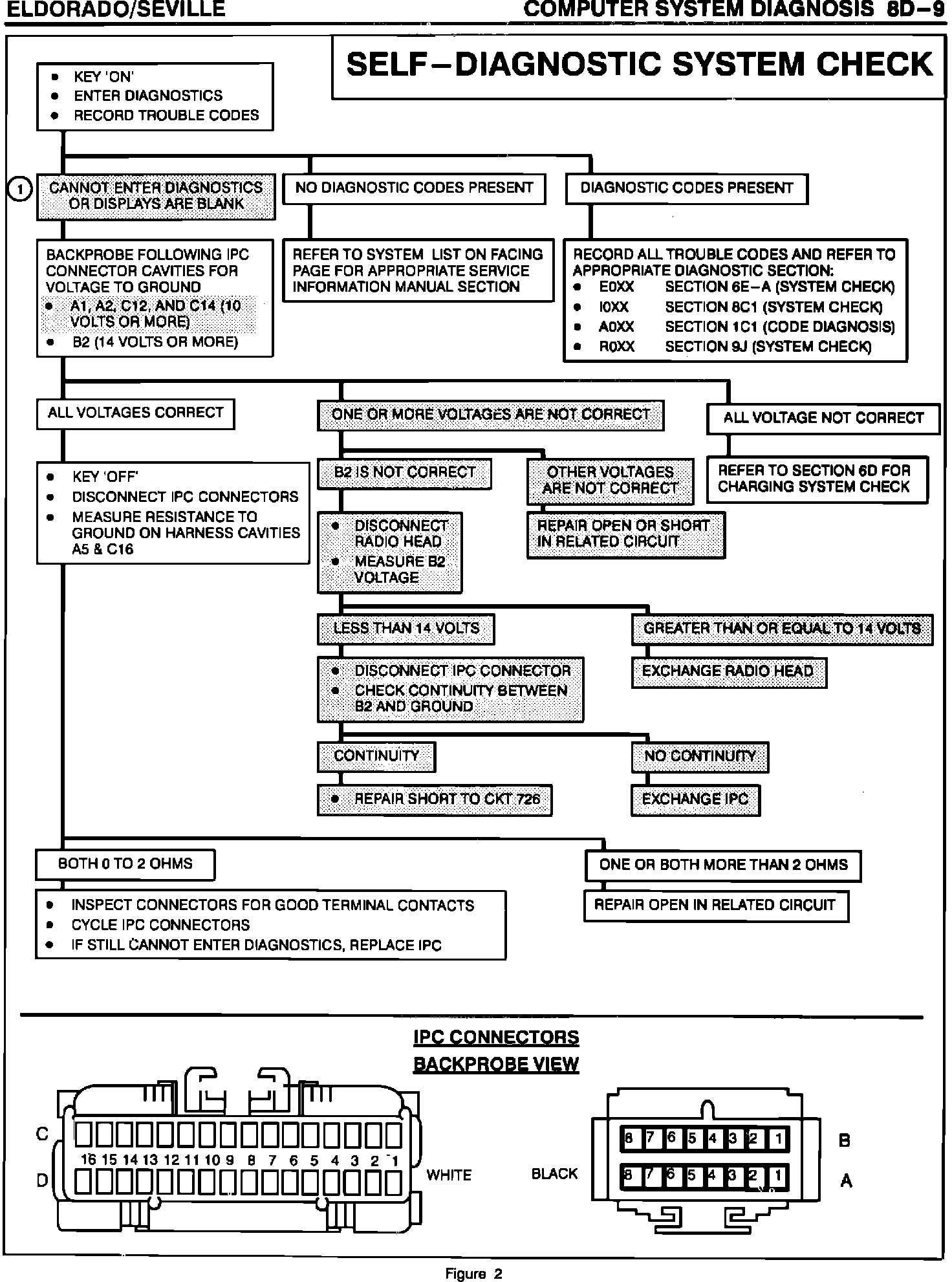

3. If ground G304 is tight, follow trouble tree diagnosis in Section 8D-9 of the Service Information Manual. Refer to Figure 2.

For warranty purposes use Labor Operation T6645 at .6 hour.
