Home >> Cadillac >> 1996 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Switch >> Driver's Seat Switch

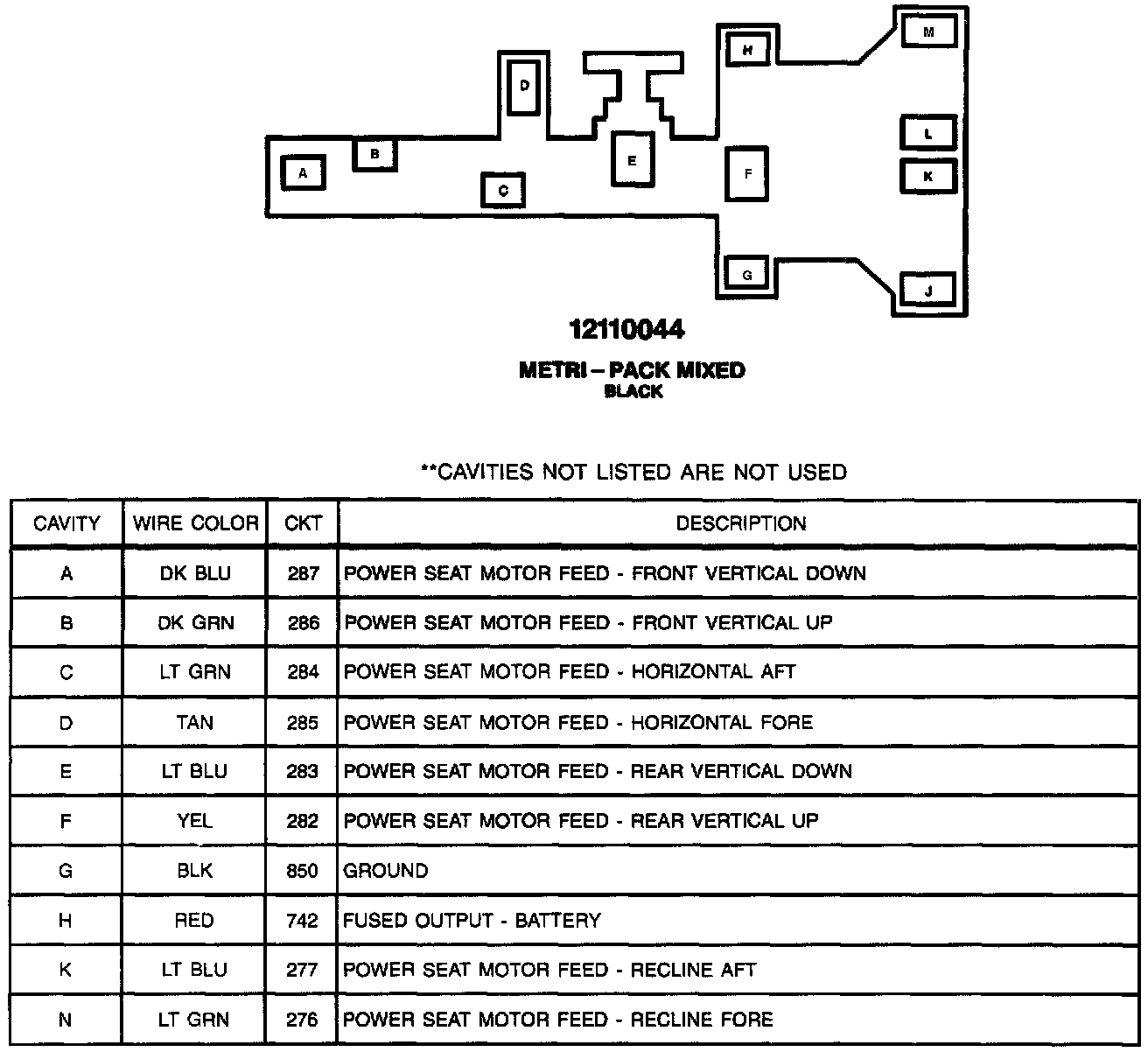

Driver's Seat Switch

Driver's Seat Switch:
