Power Mirror Motor: Service and Repair

REMOVAL PROCEDURE

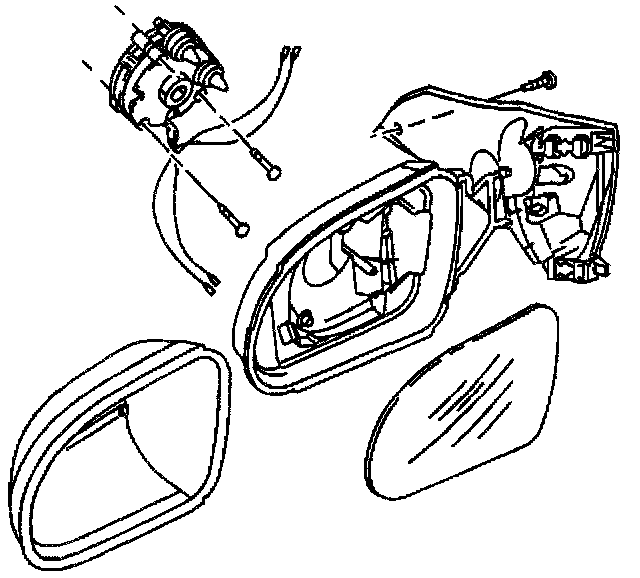

Motor Replacement - Power Mirror: Removal Procedure:

1. Remove the mirror lens.
2. Disconnect the outside rearview motor connector.
3. Remove the motor screws.
4. Remove the motor.

INSTALLATION PROCEDURE

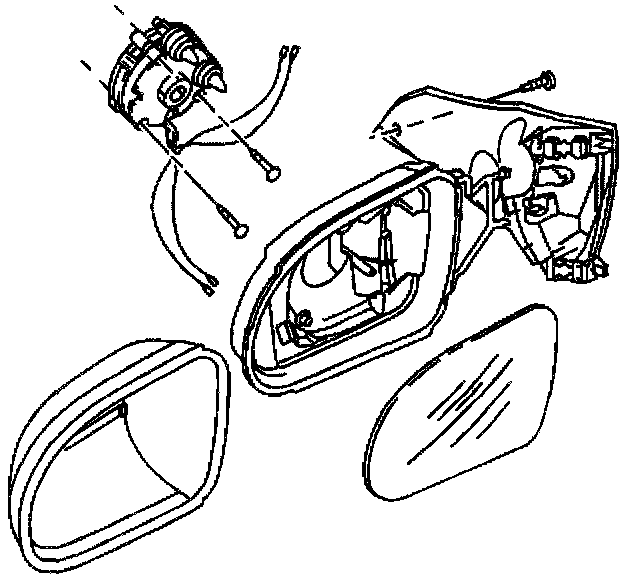

Motor Replacement - Power Mirror: Installation Procedure:

1. Install the motor.

2. Install the motor screws.

Tighten
Tighten outside rearview motor screws until fully seated but not stripped.

3. Connect the motor connector.
4. Install the mirror lens.
