Home >> Cadillac >> 1997 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Component Fluid Passage Locations >> Adapter Case - Center Support Side

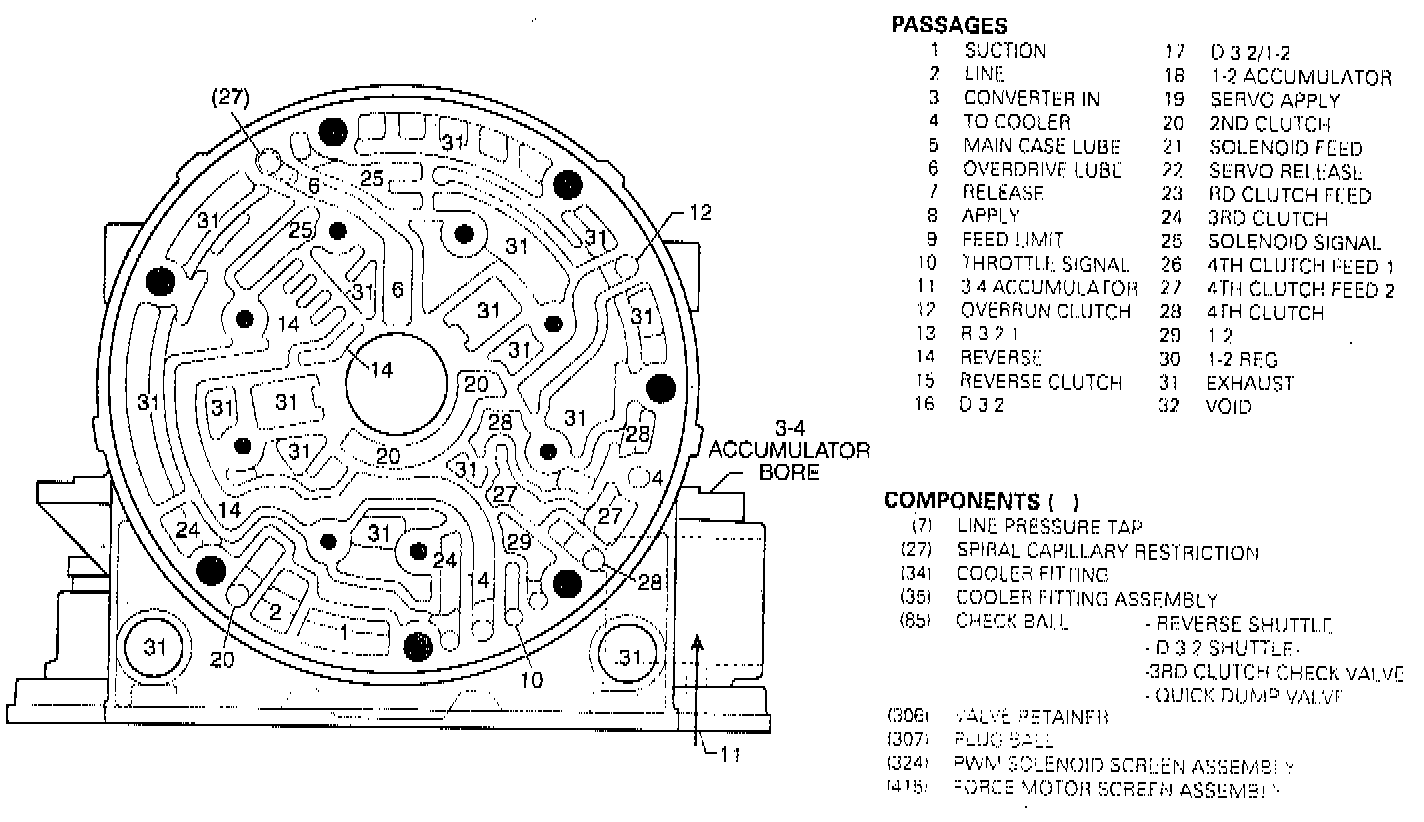

Adapter Case - Center Support Side
