Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1997
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Component Fluid Passage Locations
>>

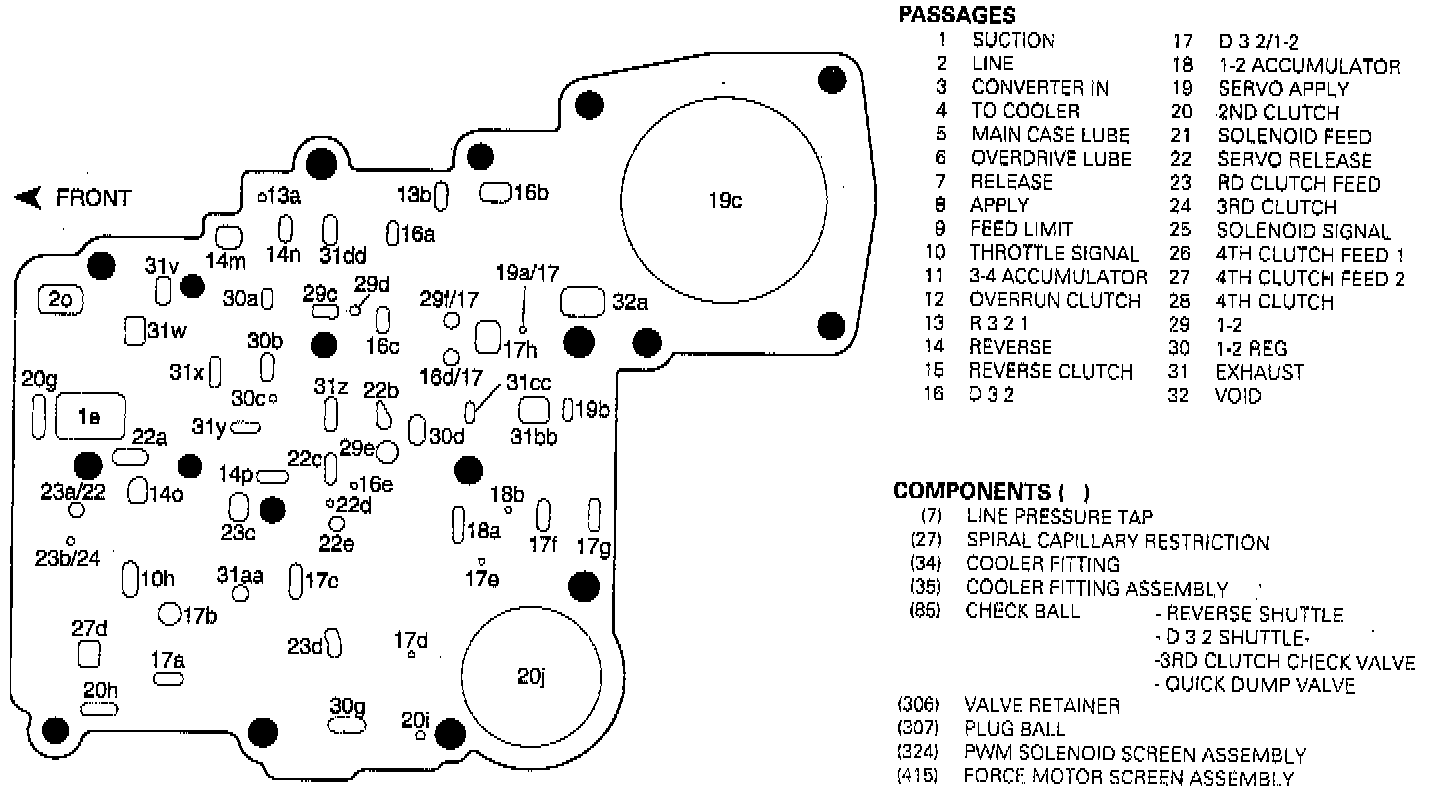

Transfer Plate - Main Case/Valve Body
Transfer Plate - Main Case/Valve Body
