Heating and Air Conditioning: Locations

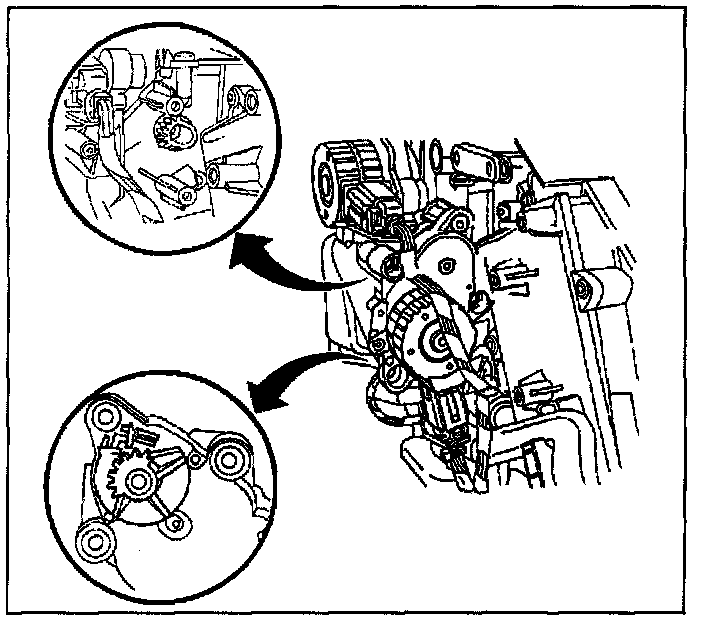

AIR DOOR ACTUATOR LOCATIONS




DEFROSTER VALVE ACTUATOR
Behind the RH side of the I/P, part of the HVAC module.





INSIDE AIR VALVE ACTUATOR
Behind the RH side of the I/P, mounted to the HVAC module above the heater core tubes.





MODE (FLOOR) VALVE ACTUATOR
Behind the RH side of the I/P, mounted to the HVAC module above the heater core tubes.

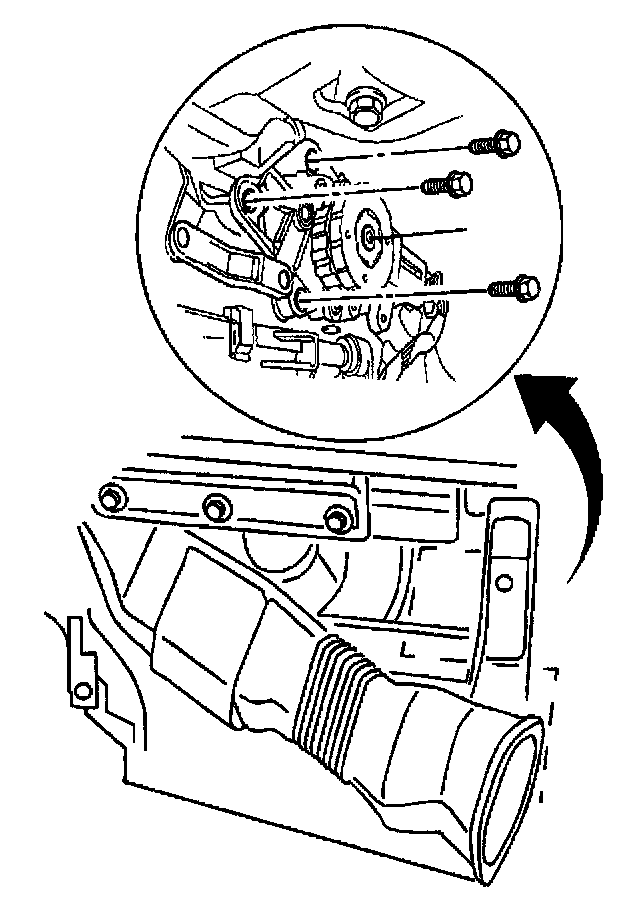

Driver Side Air Mix Actuator:

TEMPERATURE VALVE ACTUATOR (LH)
Behind the LH side of the I/P, mounted to the lower part of the HVAC module.

Passenger Side Air Mix Actuator:

TEMPERATURE VALVE ACTUATOR (RH)
Behind the RH side of the I/P, mounted to the lower part of the HVAC module.
