Disassembly and Reassembly

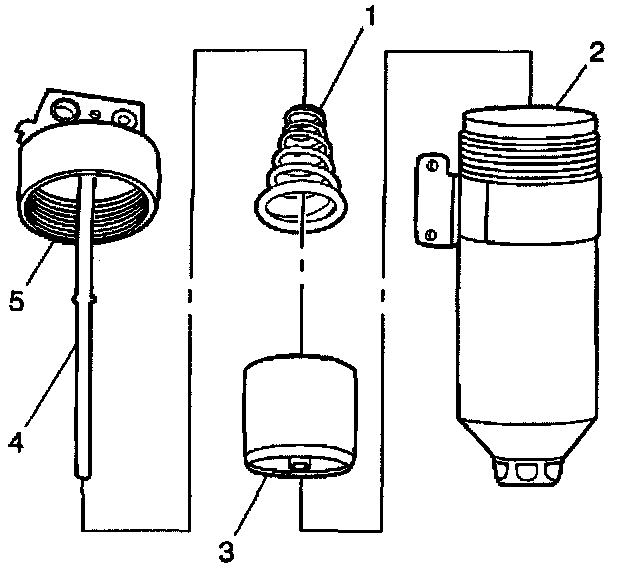

DISASSEMBLEDisassemble the following receiver/dehydrator components:
1. The desiccant filter housing (2)
2. The desiccant filter (3)
3. The spring (1)
4. The tube (4)
5. The desiccant filter housing top (5)
6. The O-ring seal
ASSEMBLE
Assemble the following receiver/dehydrator components:
1. A new O-ring seal

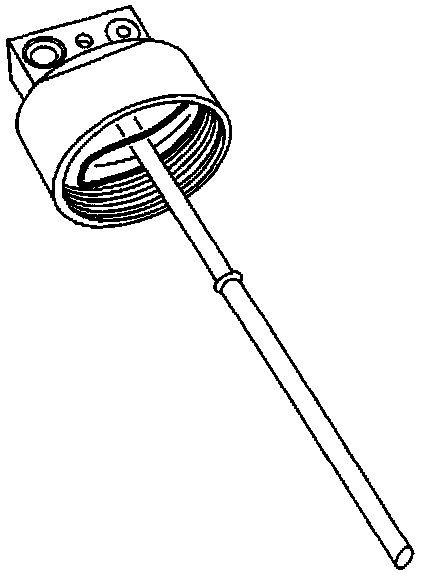

2. The desiccant filter housing top (5)
3. The tube (4)
4. The spring (1)
5. The desiccant filter (3)
6. The desiccant filter housing (2). Tighten the desiccant filter housing top to 100 Nm (74 lb. ft).
