Lubricant Level Check

Perform the following steps to check the lubricant level:
1. Ensure the vehicle is level.
2. Clean the area around the rear axle housing filler plug.

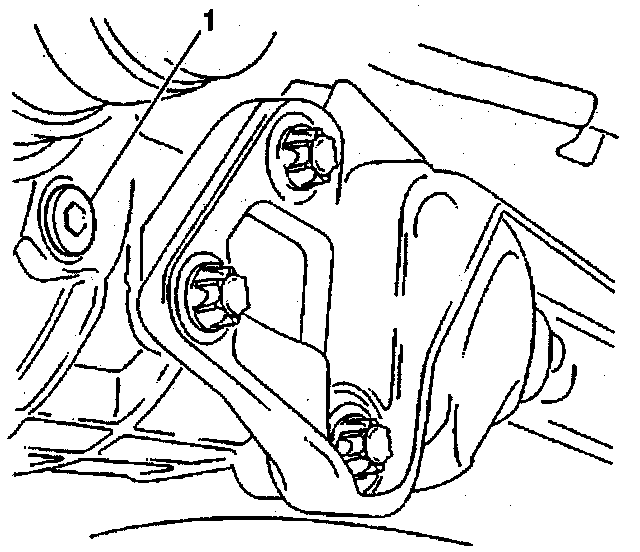

3. Remove the rear axle housing filler plug (1) from the passenger side of the rear axle differential.
4. The lubricant level is to be maintained at the bottom edge of the filler plug hole WHEN COLD. Use only the recommended lubricant as specified in LUBRICATION SPECIFICATIONS.
5. Install the rear axle housing filler plug (1) into the rear axle differential.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

- Tighten the rear axle housing filler plug (1) to 22 Nm (15 ft. lbs.).
