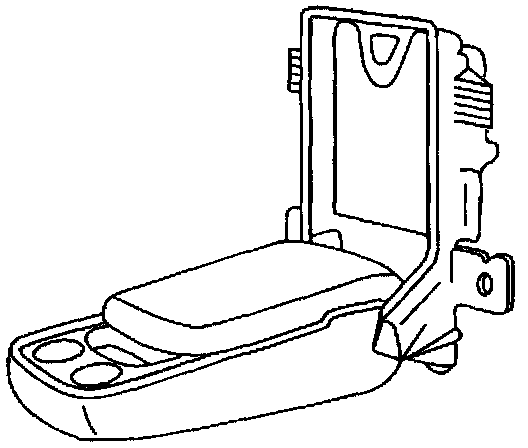

Pass Through Access Boor Replacement

REMOVAL PROCEDURE

Pass Through Access Boor Replacement: Removal Procedure:

1. Remove the seat back.
2. Remove the fasteners holding the pass-through pocket to the seat back.
3. Remove the pass-through door and cable assembly

INSTALLATION PROCEDURE

Pass Through Access Boor Replacement: Installation Procedure:

1. Position the pass-through door assembly onto the seat back.
2. Install the fasteners to retain the pass-through pocket to the seat back.
3. Install the seat back.
