Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
>>
UX8
UX8

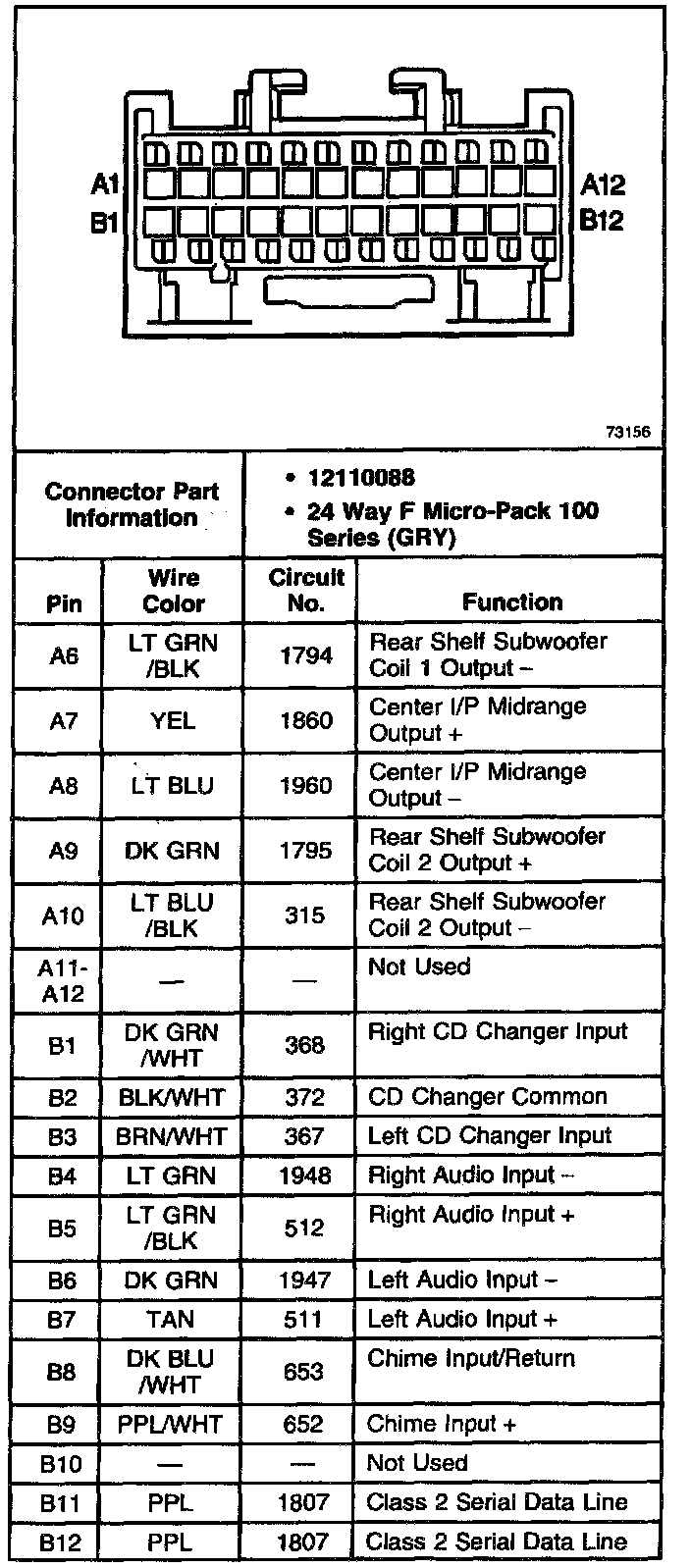

Radio Amplifier (UX8): C1 (Part 2 of 2):
Radio Amplifier (UX8): C1 (Part 1 of 2):

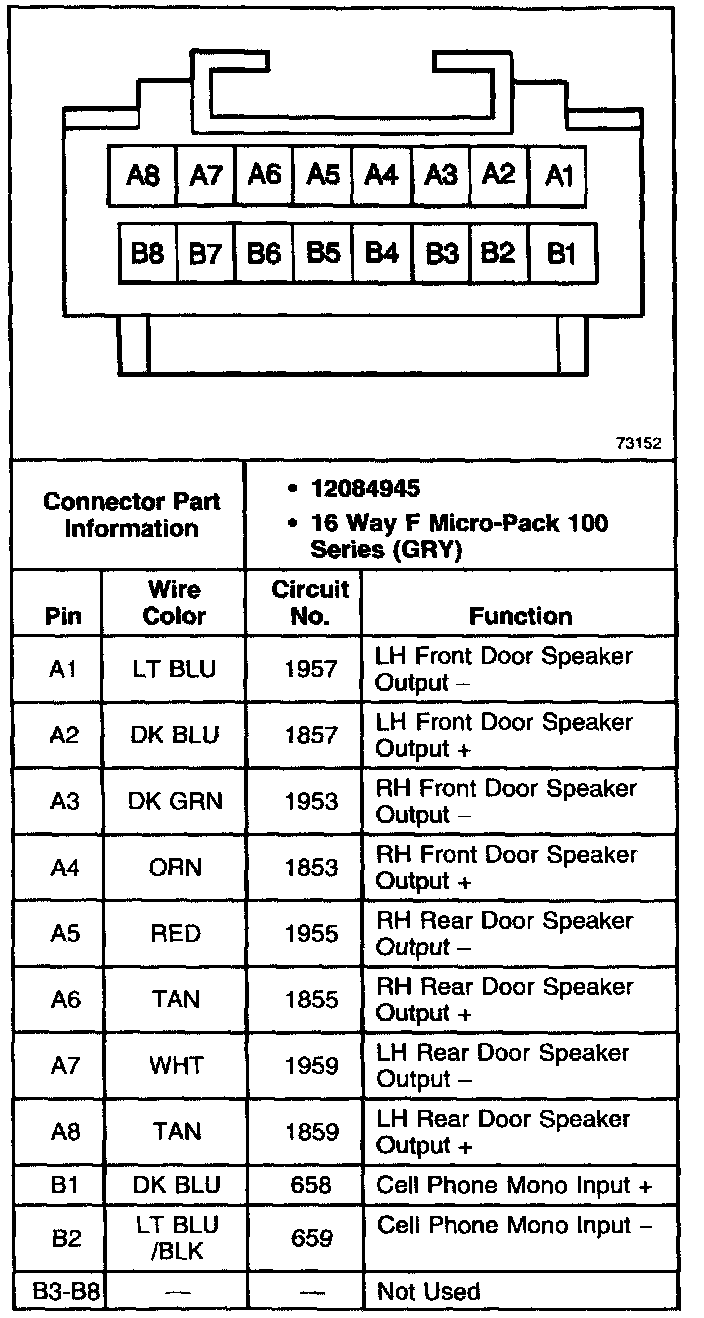

Radio Amplifier (UX8): C2:
Radio Amplifier (UX8): C3:
