Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> SIR Tilt Column - Power Tilt

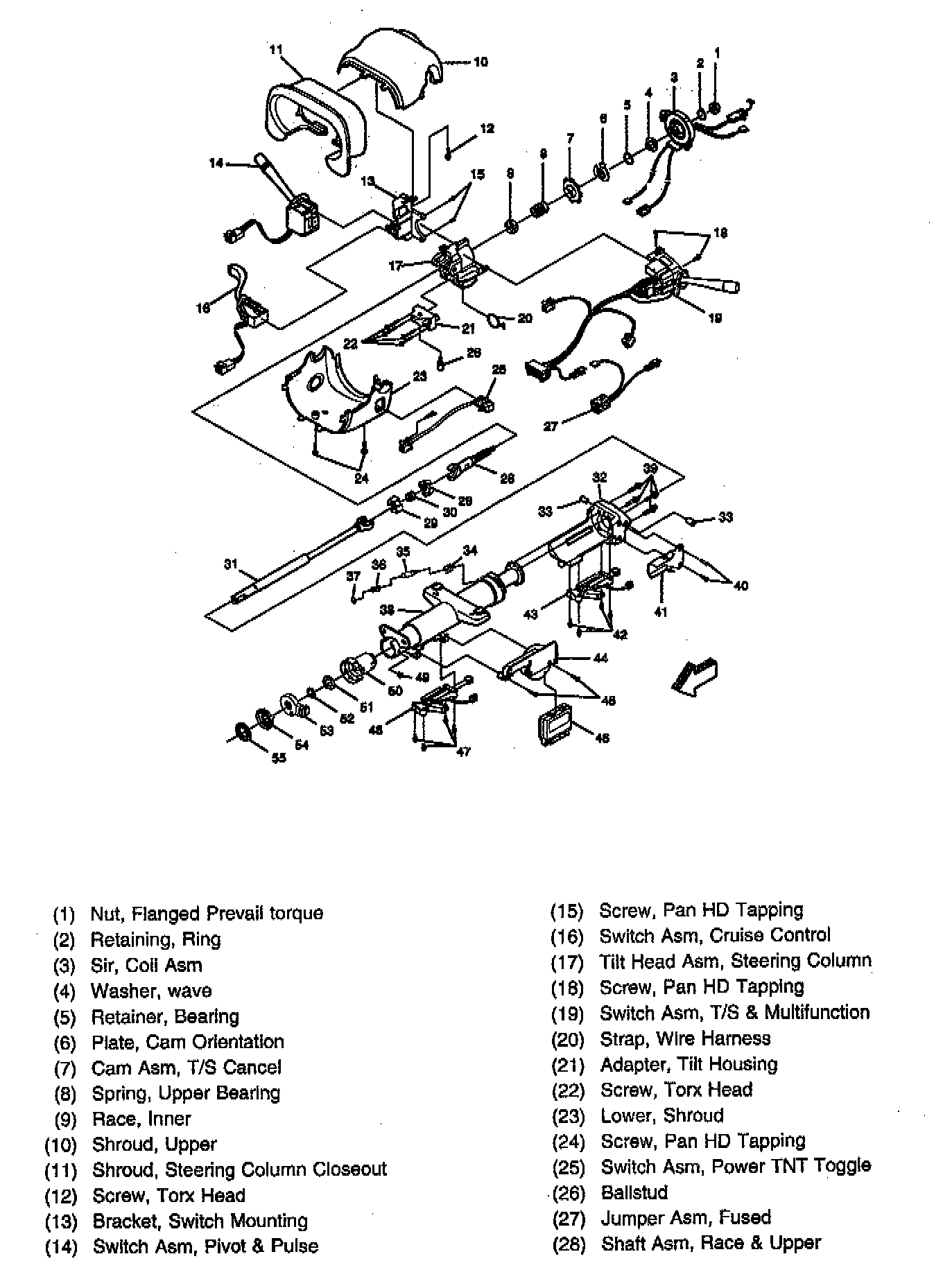

SIR Tilt Column - Power Tilt

Part 1 Of 2:



Part 2 Of 2:
