Turn Signal Flasher: Service and Repair

HAZARD LAMP AND TURN SIGNAL LAMP FLASHER REPLACEMENT

Removal Procedure
The hazard and the turn signal flashers are part of the Hazard Switch assembly. If the hazard flasher or the turn signal flasher needs to be replace, it will require replacement of the Hazard Control Switch. Service and Repair






1. Remove the instrument panel right accessory trim plate.
Refer to Instrument Panel Accessory Trim Plate Replacement - Right Side. Right

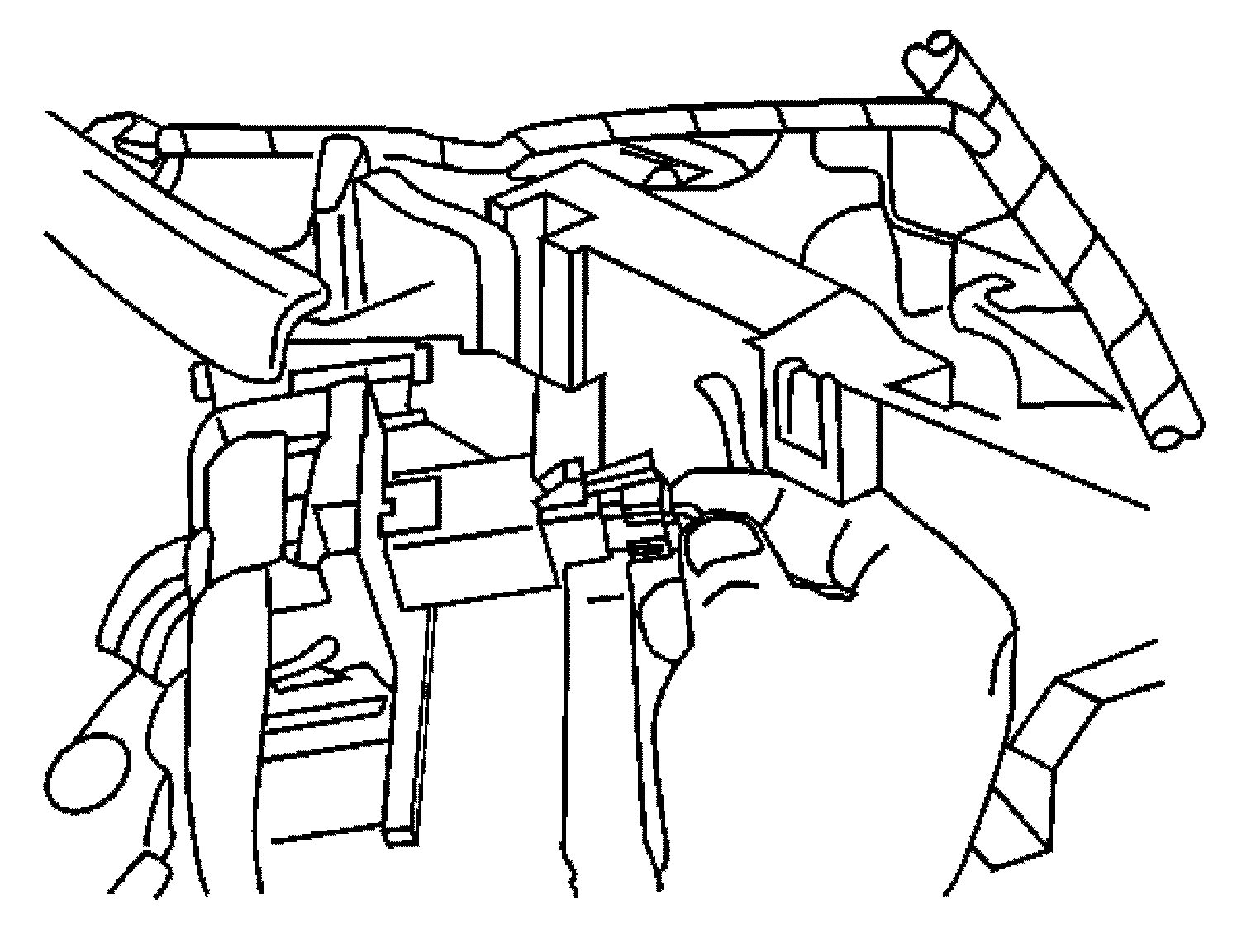

2. Disconnect the electrical connector.

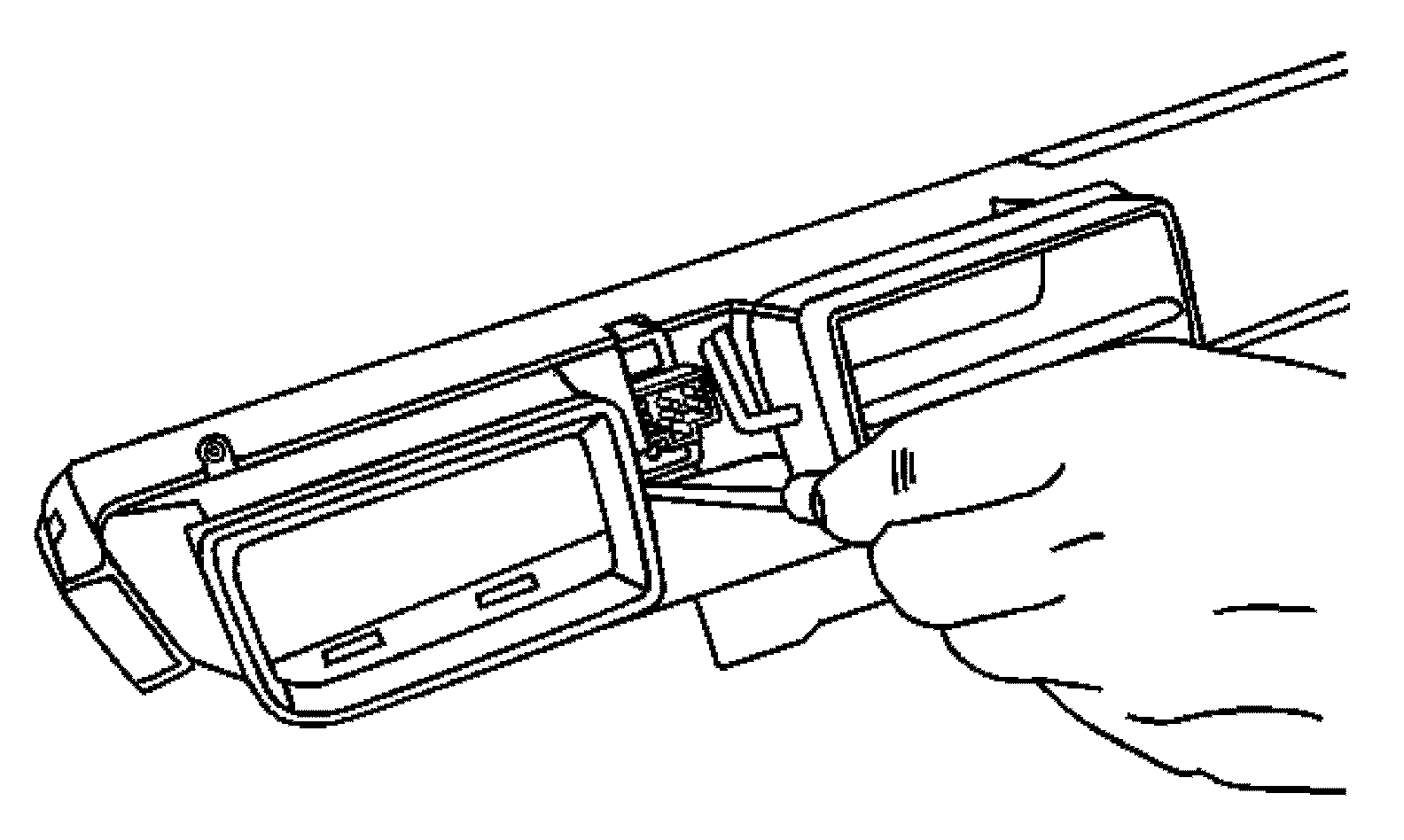

3. Remove the hazard switch by releasing the locking tabs.






4. Remove the hazard switch.

Installation Procedure

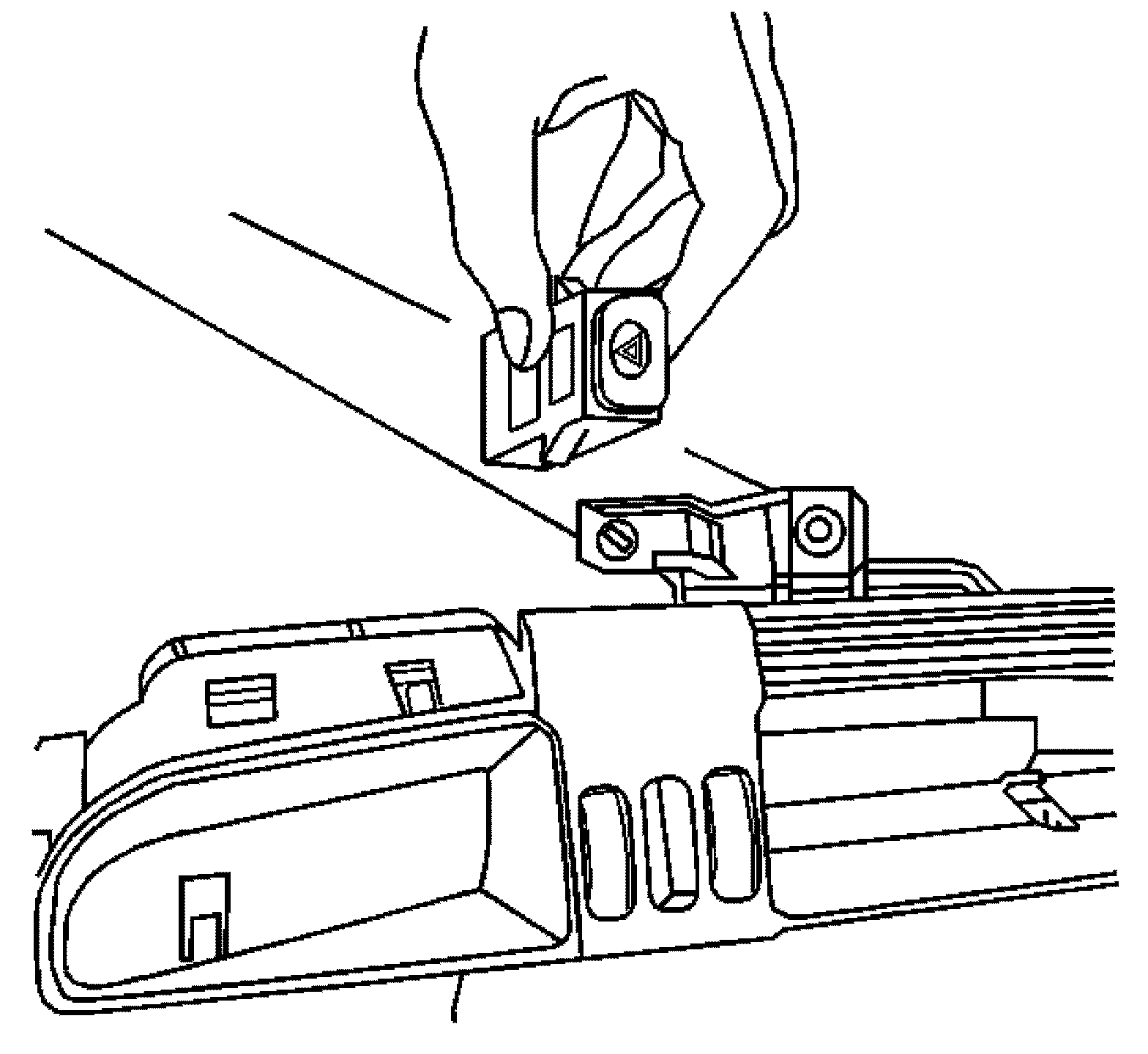

1. Press the hazard switch into the bezel until the locking tabs lock.






2. Connect the hazard switch electrical connector.

3. Install the instrument panel right accessory trim plate.
