Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> Door Window Regulator Motor, RH Front

Door Window Regulator Motor, RH Front

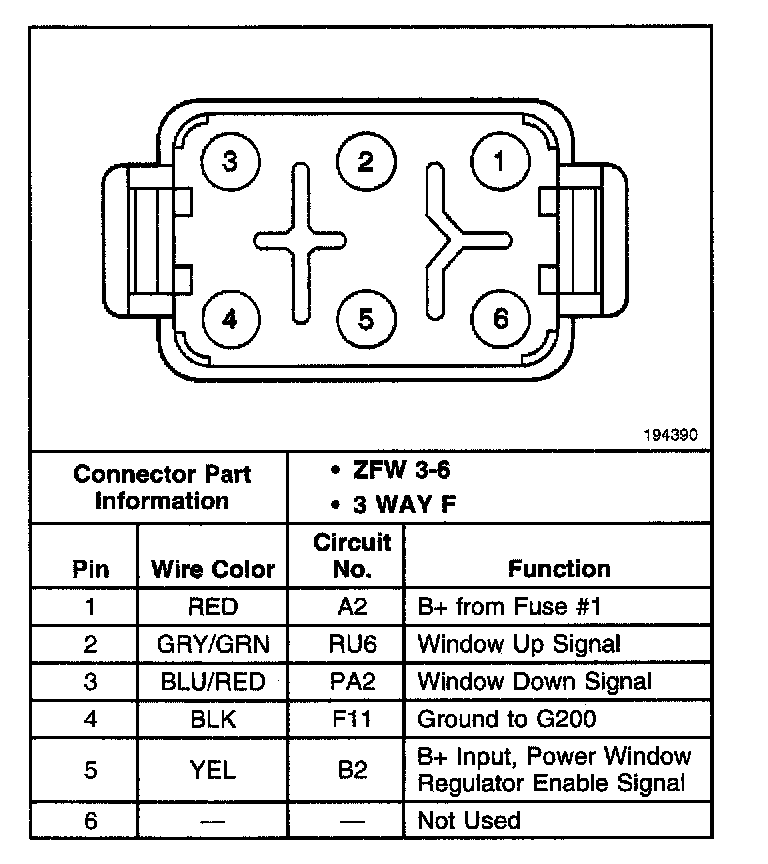

RH Front Side Door Window Regulator Motor:
