Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Locations

Housing Assembly HVAC: Locations

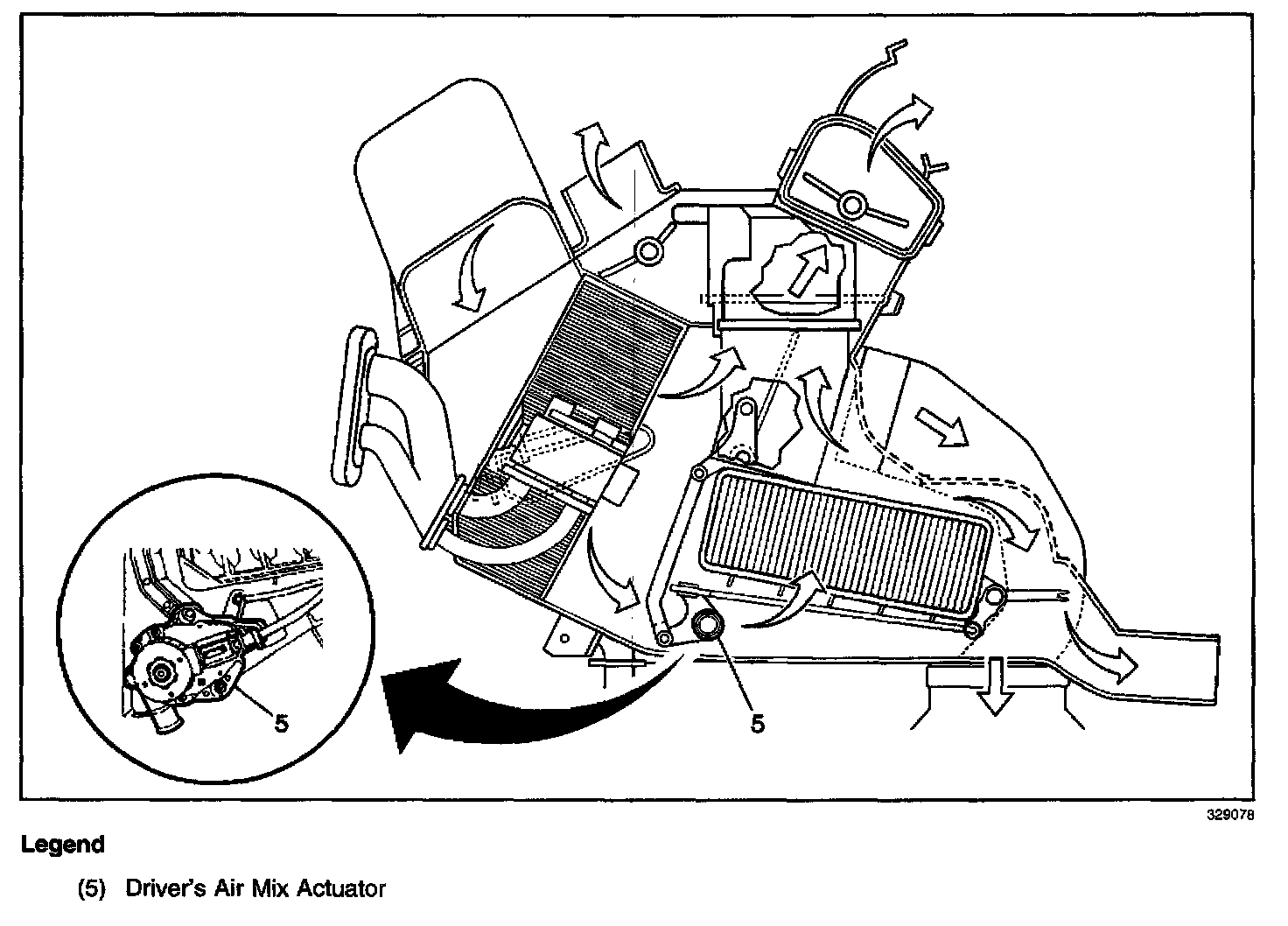

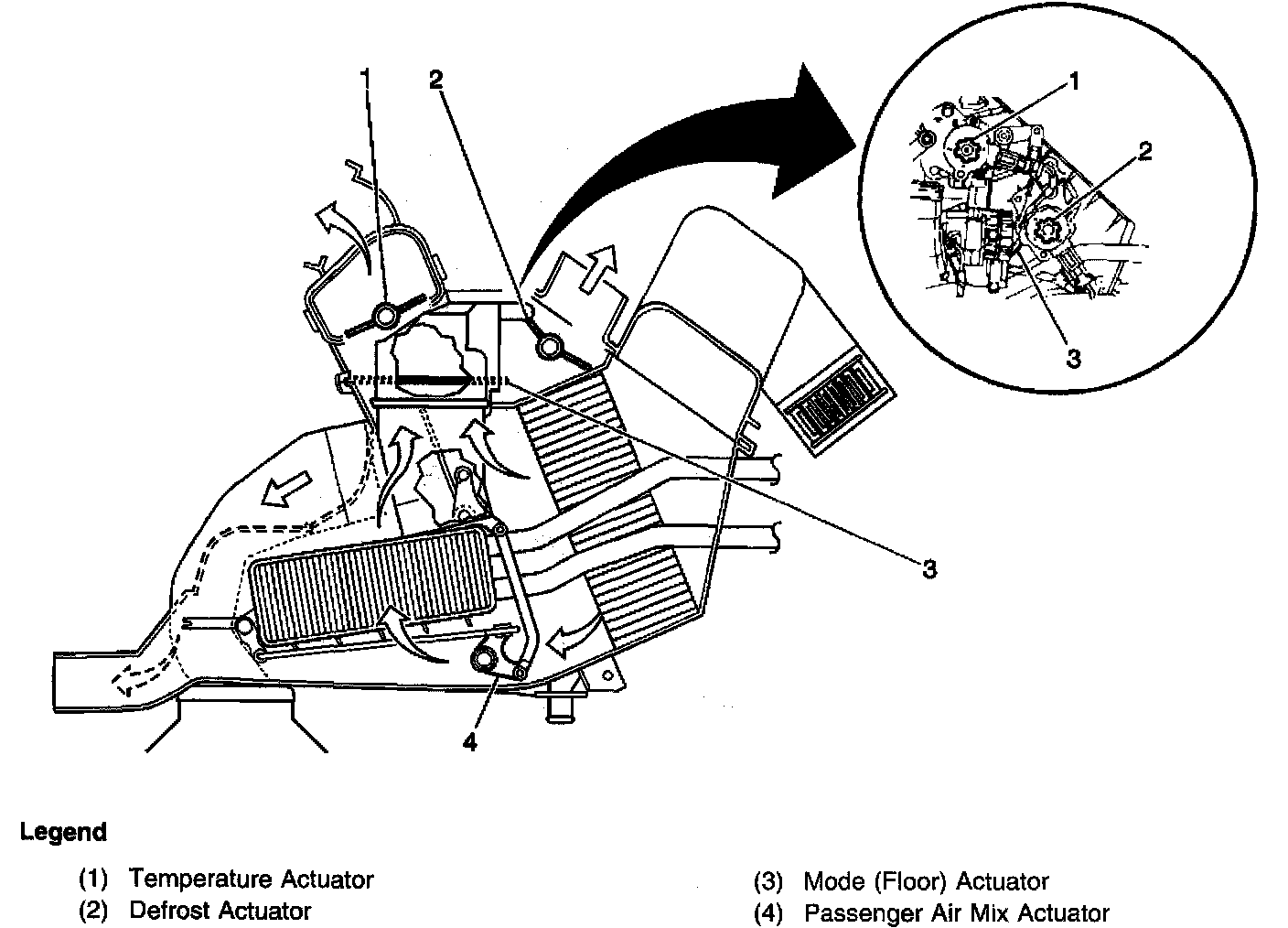

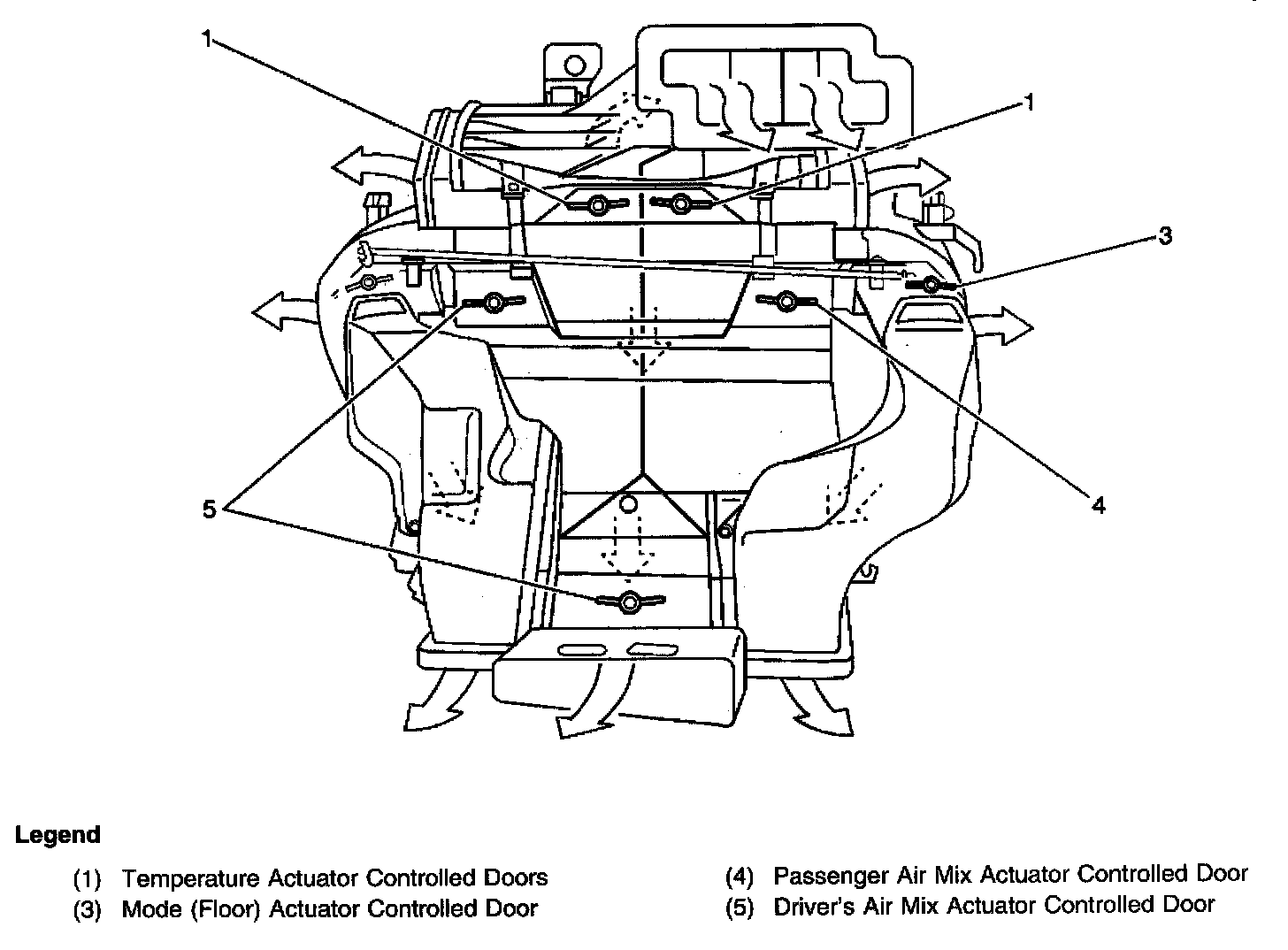

HVAC Air Distribution (LH View):
