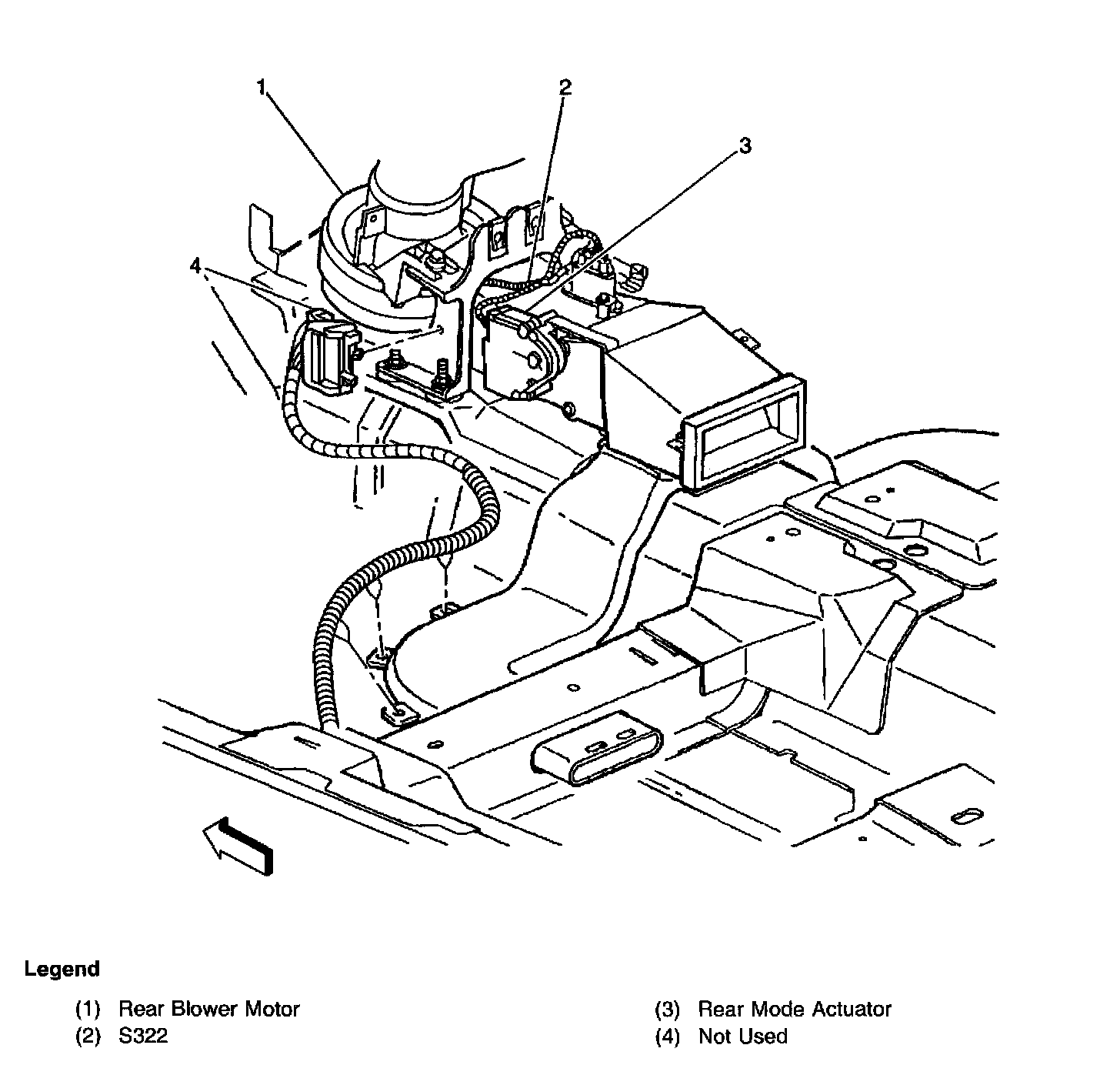

Mode Actuator, Rear

Passenger Compartment, Below The Center Of The IP:





Center front of the passenger compartment, under the front of the console near the rear blower motor
