Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Rear >> LH Rear

LH Rear

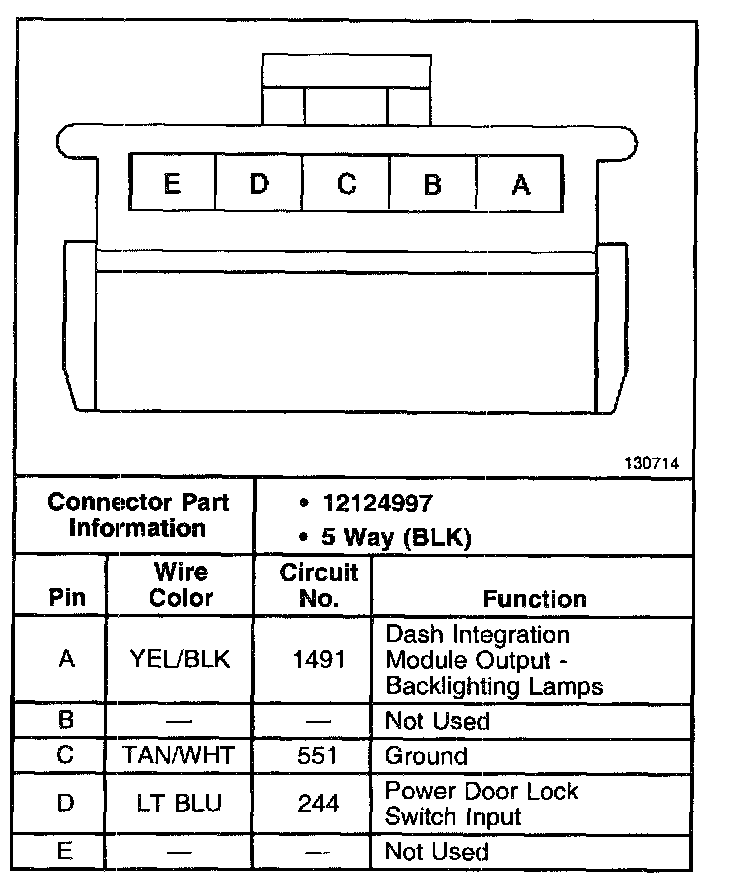

LH Rear Power Door Lock Switch:
