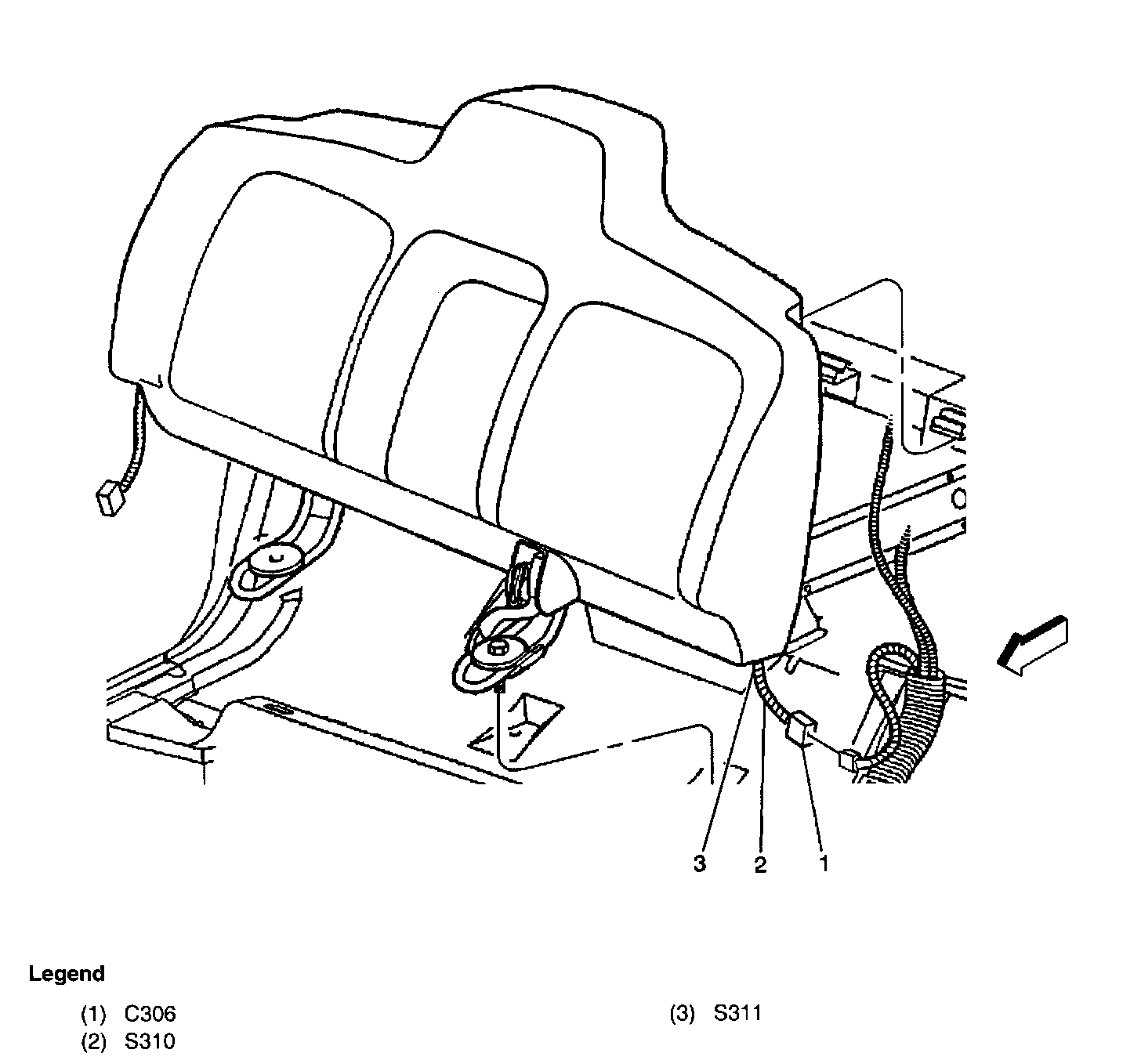

S310

Passenger Compartment, Under The Rear Seat:





Rear heated seat back harness, under the rear seat approximately 11.5 cm (4.5 in) from the C306 connector
