Case: Locations

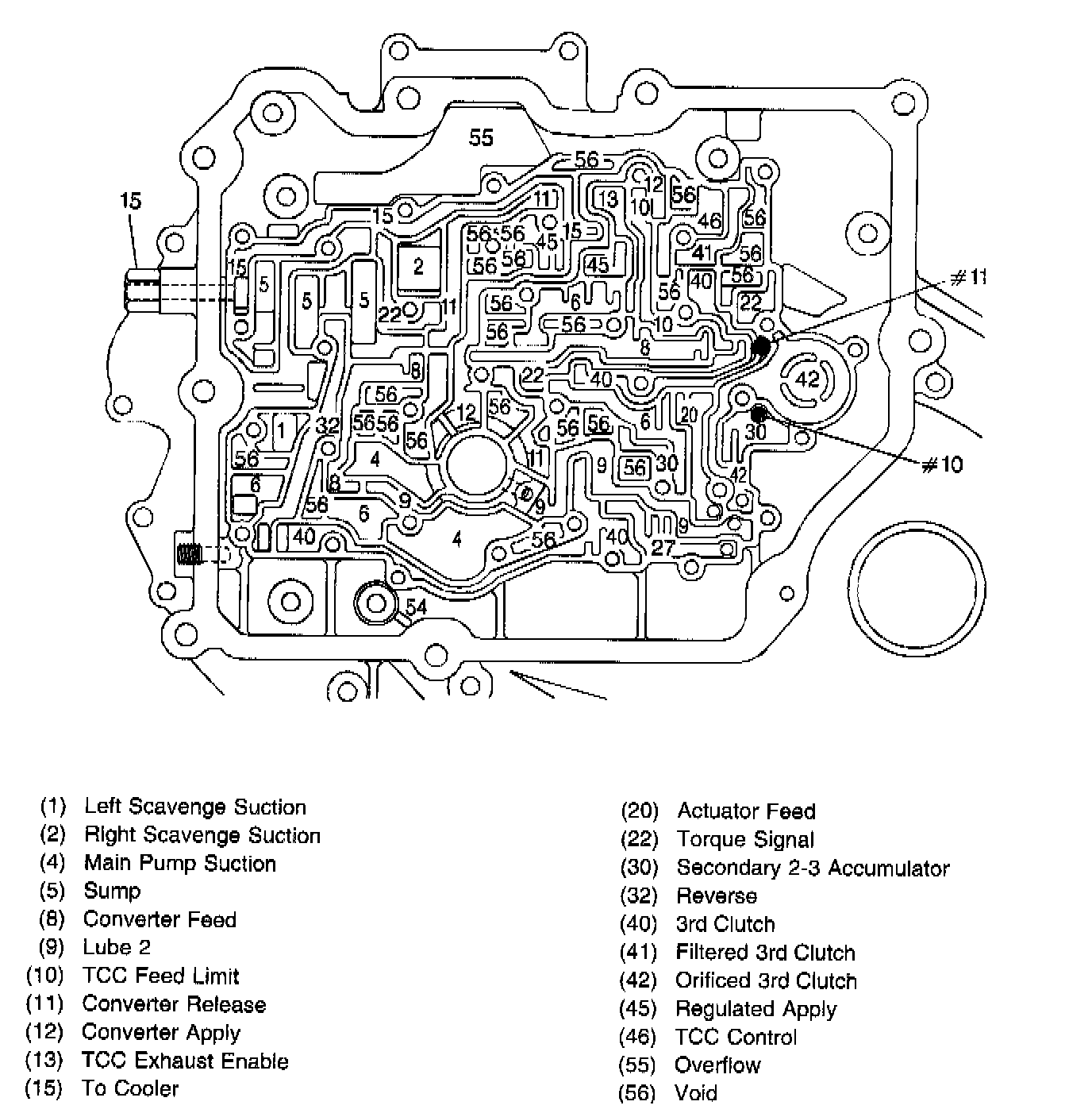

Case Cover Fluid Passages (Secondary Pump Body and Upper Control Valve Body Side)

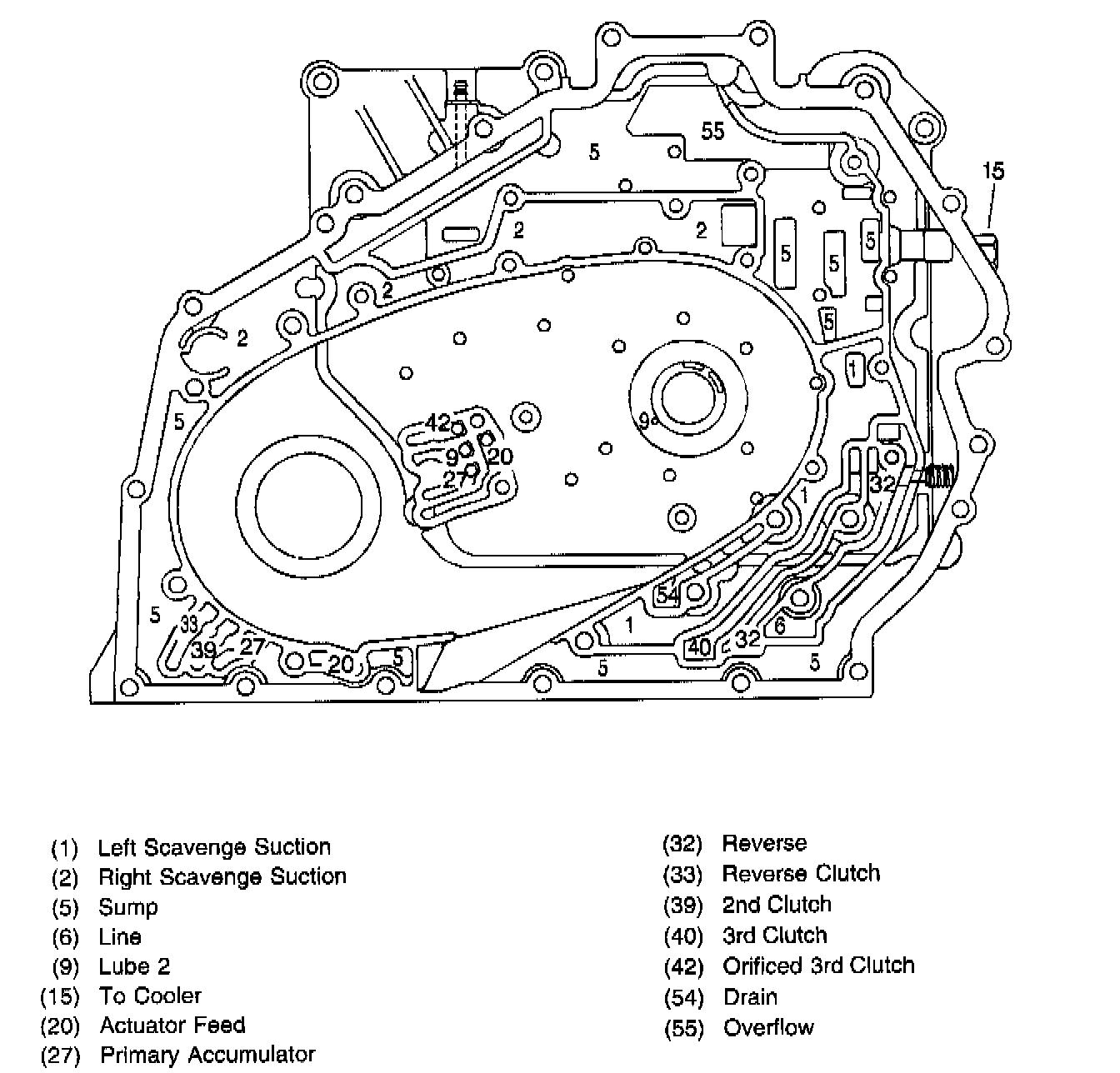

Case Cover Fluid Passages (Case Side)
