BATT, ECM Housing, Fan CNTRL Relays and HTR Water AUX Pump
BATT, ECM Housing, Fan CNTRL Relays and HTR Water AUX Pump

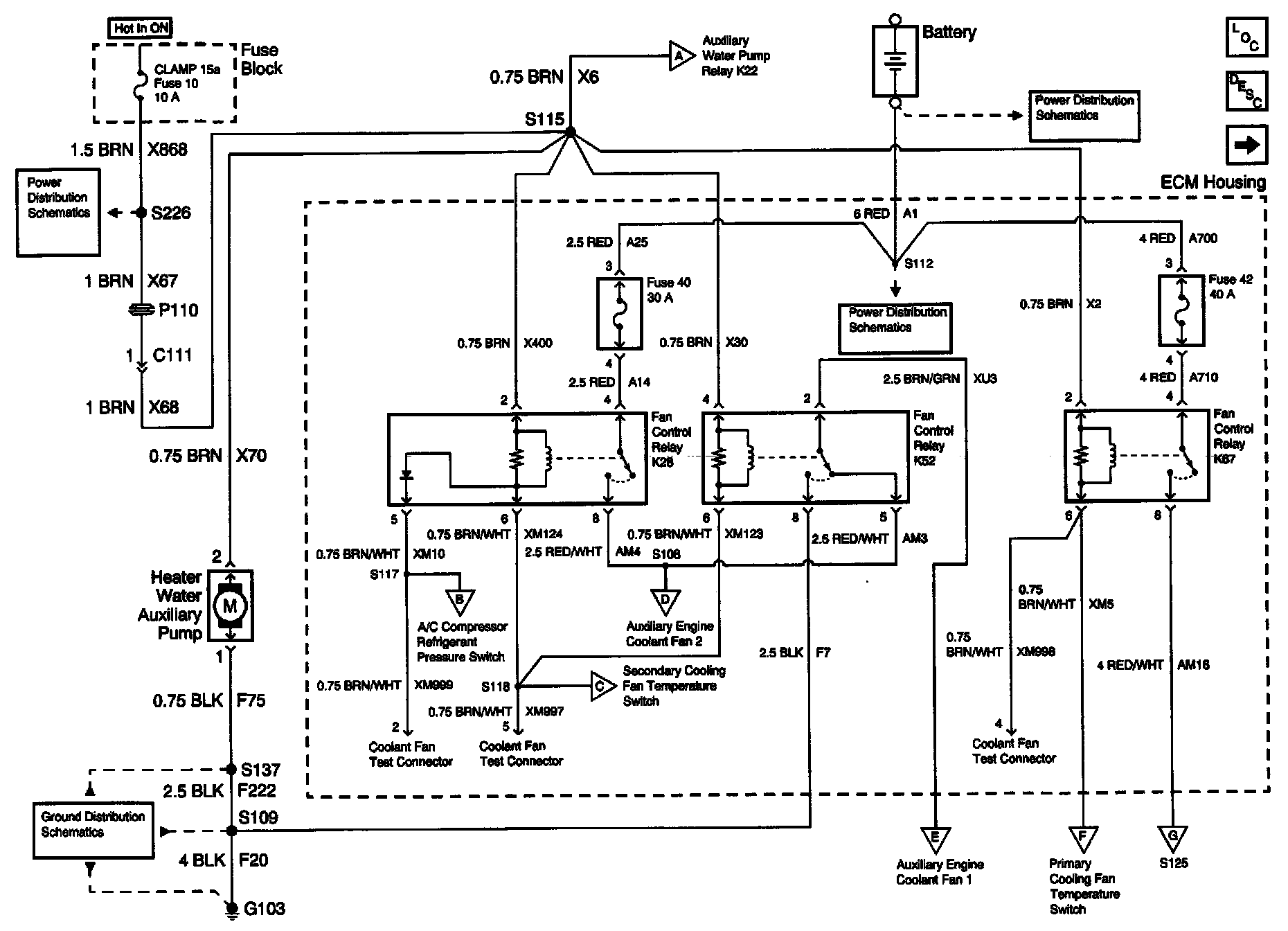

Cooling Fan Schematics: Battery, ECM Housing, Fan Control Relays And Heater Water Axiliary Pump:
