Side Window

REMOVAL PROCEDURE

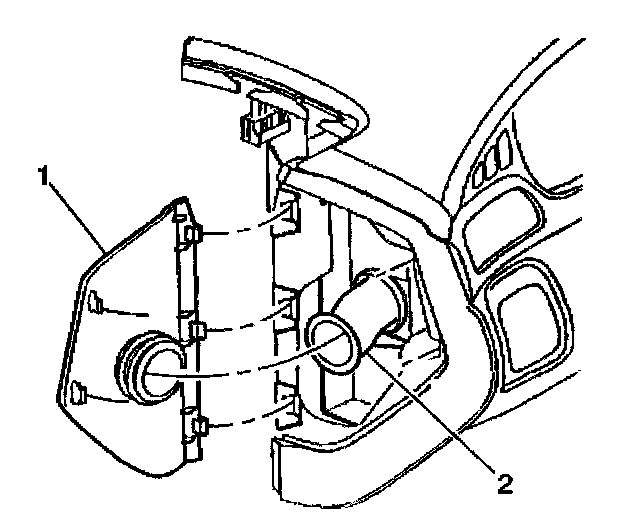

1. Remove the endcap (1).
2. Grasp the side air outlet (2) and pull the outlet outward in order to remove it.

INSTALLATION PROCEDURE




1. Align the side air outlet (2) and push the outlet onto the cross car duct until the outlet is fully seated.
2. Install the endcap (1).
