Home >> Cadillac >> 2000 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Heating and Air Conditioning >> Evaporator Core >> Testing and Inspection

Evaporator Core: Testing and Inspection

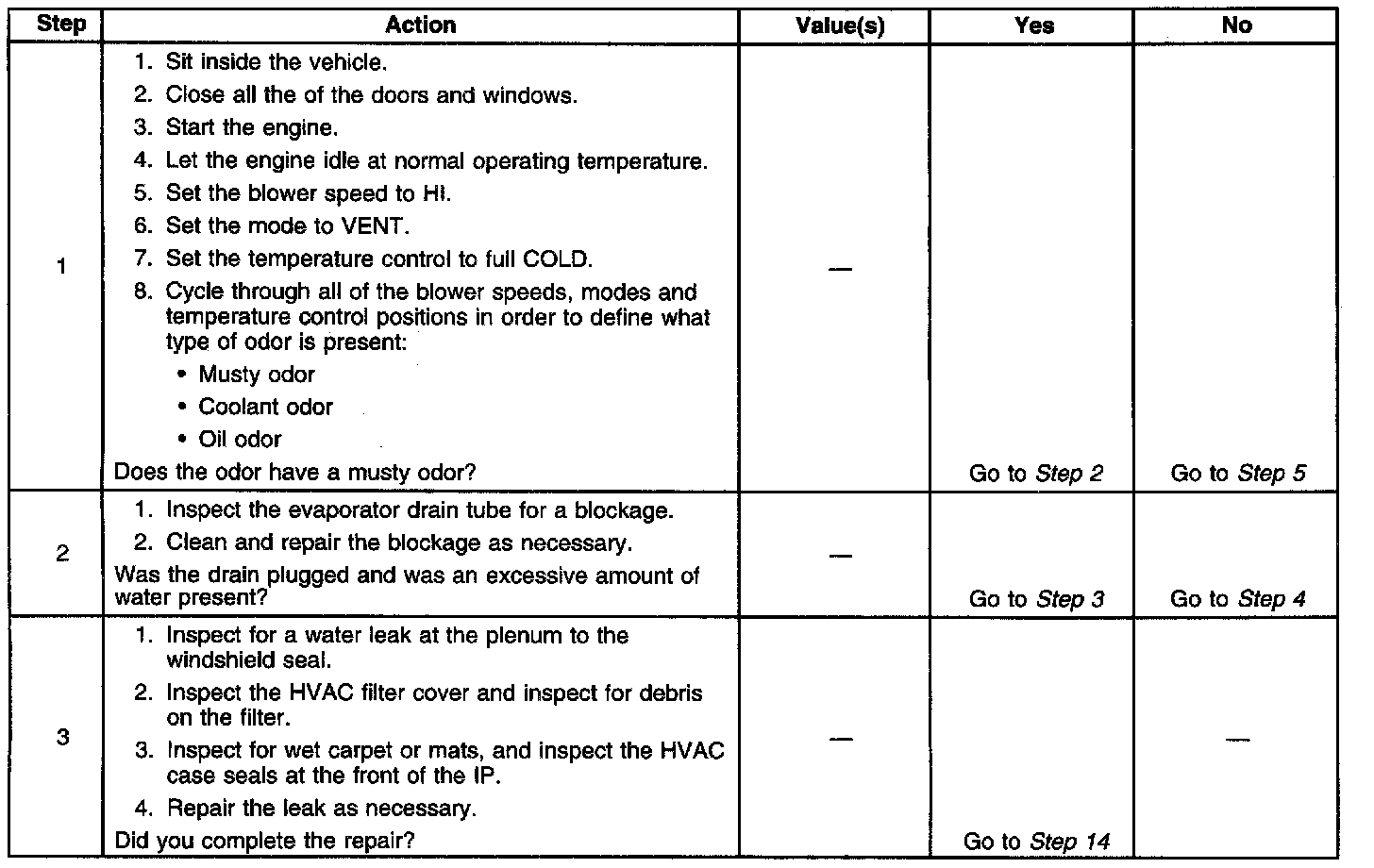

Steps 1-3:

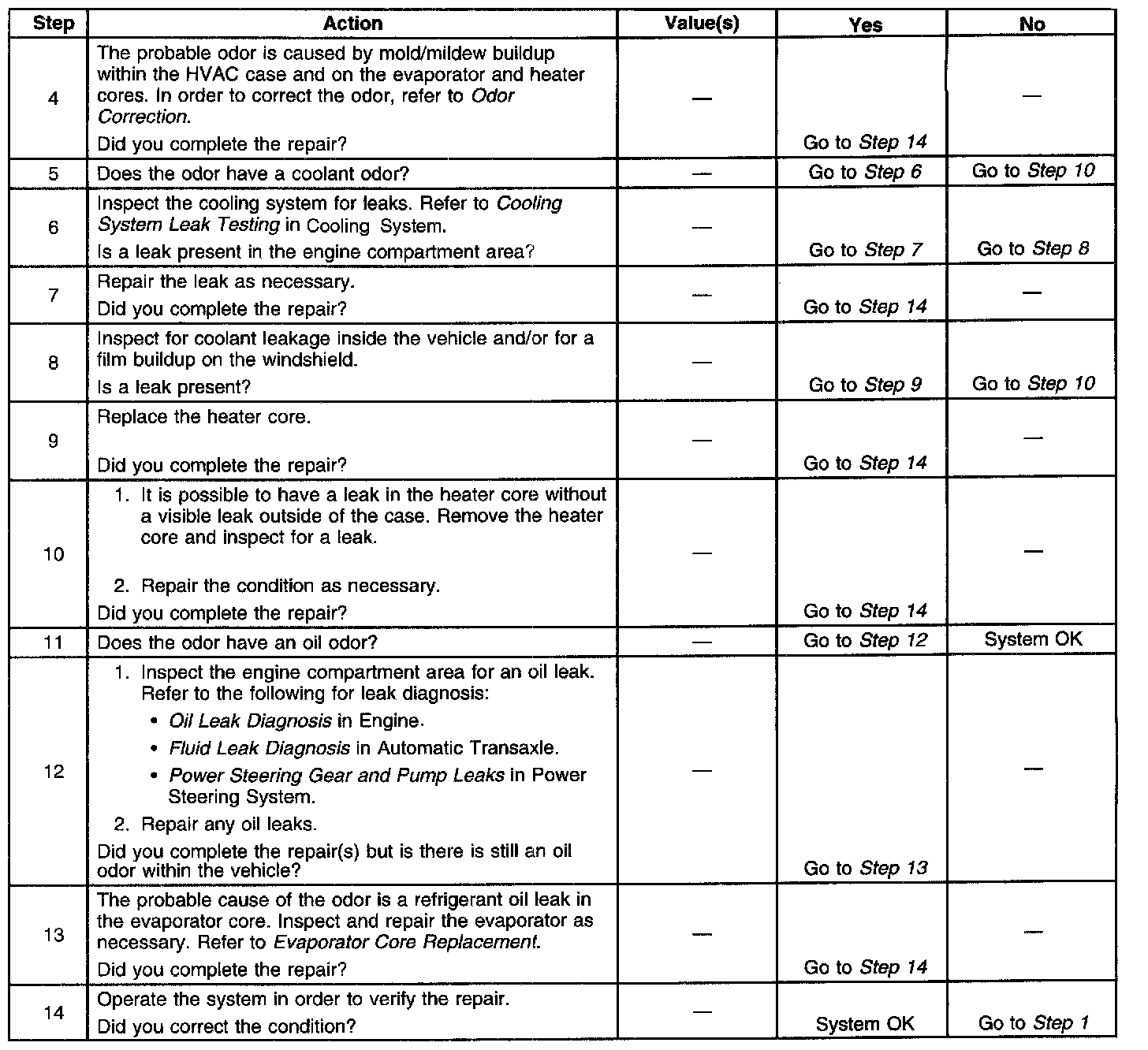

Steps 4-14:
