License Plate Frame: Service and Repair

Front License Plate Mount Trim Cover Replacement

Removal Procedure

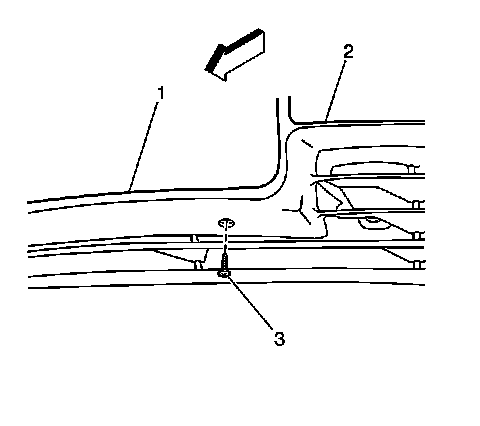

1. Remove the fasteners (3) securing the front license pocket cover (1) to the front bumper fascia (2).

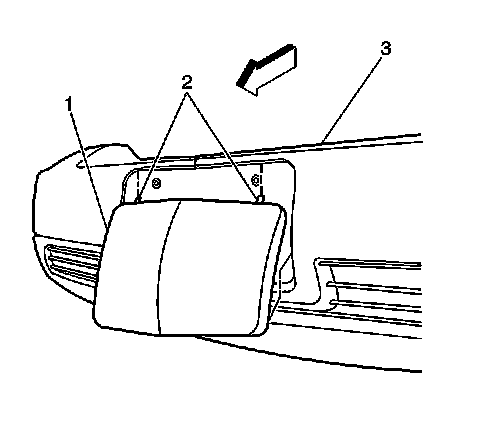

2. Pull the bottom of the front license pocket cover (1) outward and down to disengage the tabs (2) at the top of the cover.
3. Remove the front license pocket cover (1) from the front bumper fascia (3).



Installation Procedure





1. Install the front license pocket cover (1) to the front bumper fascia (3).
2. Position the tabs (2) on the front license pocket cover (1) in the front bumper fascia (3).




3. Install the fasteners (3) in order to secure the front license pocket cover (1) to the front bumper fascia (2).
