Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2000
>>
Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
Vehicle Interface Unit (VIU) C1
Vehicle Interface Unit (VIU) C1

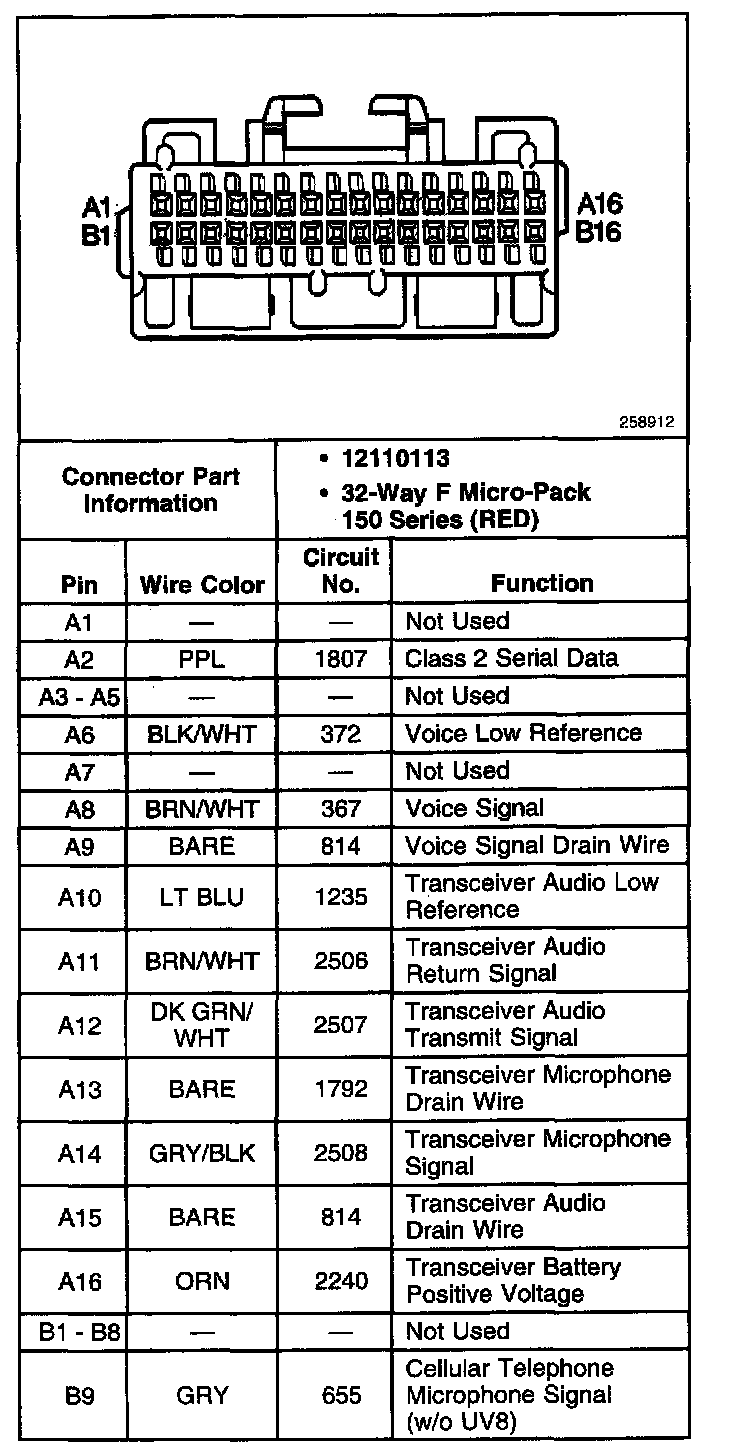

Vehicle Interface Unit (VIU) C1 (Part 1 Of 2):

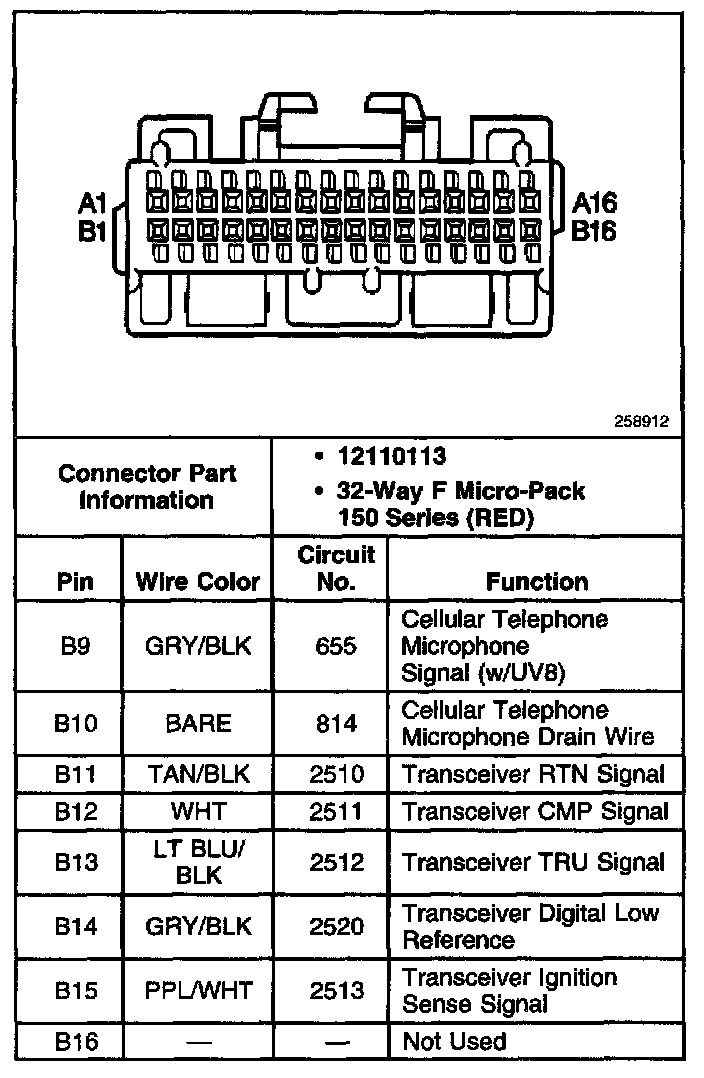

Vehicle Interface Unit (VIU) C1 (Part 2 Of 2):
