Home >> Cadillac >> 2000 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance and Parking Assist Systems >> Corner Object Sensor, LH Rear

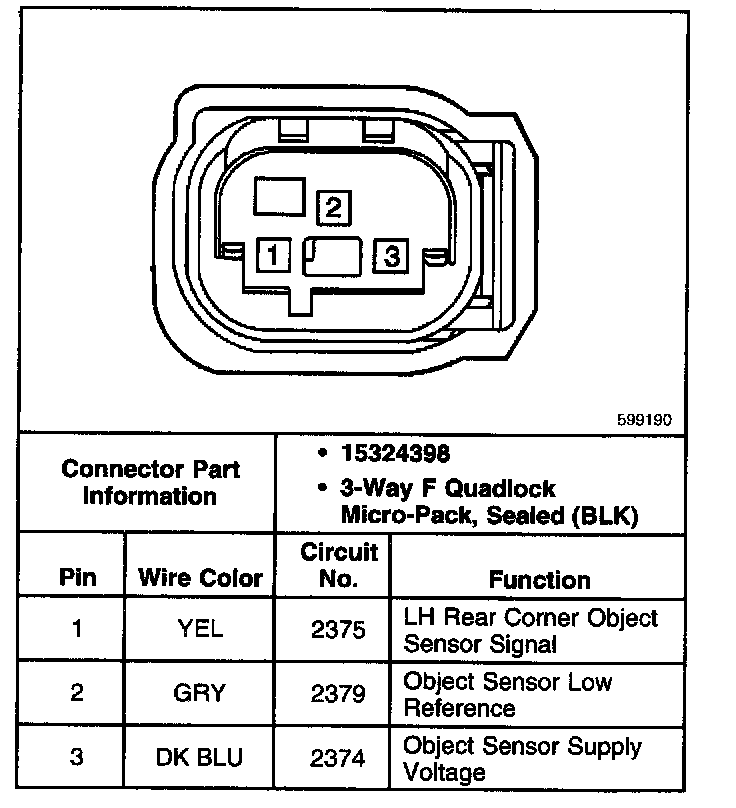

Corner Object Sensor, LH Rear

Corner Object Sensor, LH Rear:
