Home
>>
Cadillac
>>
2000
>>
Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>

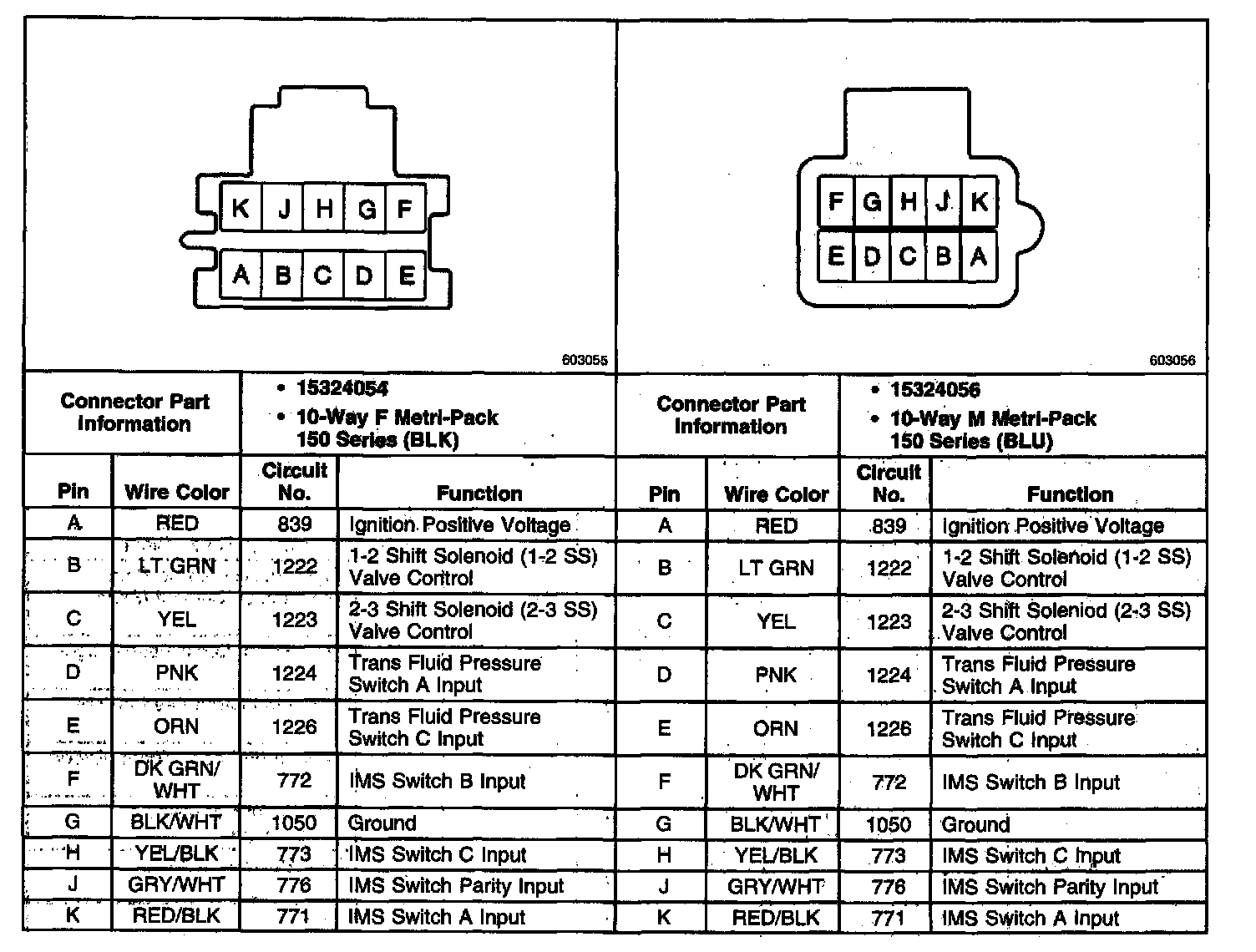

In Line Connector C115
In Line Connector C115
In Line Connector C115:
