Home >> Cadillac >> 2000 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Tensioner >> Driver Belt Pretensioner/SRS Side Inflator Module

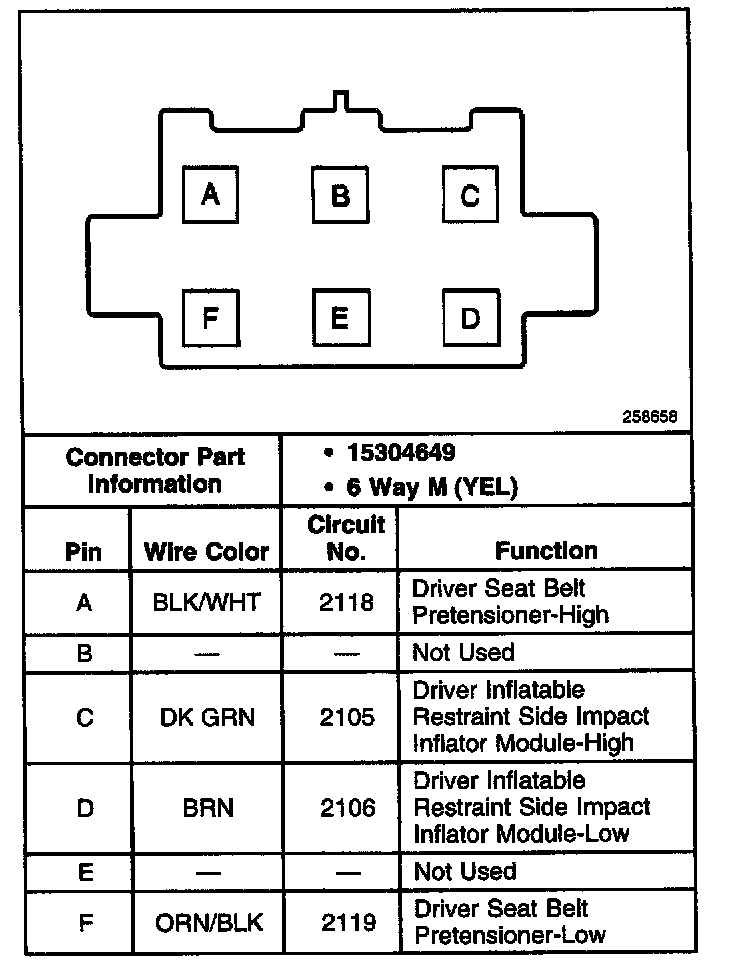

Driver Belt Pretensioner/SRS Side Inflator Module

Driver Seat Belt Pretensioner And Inflatable Restraint Side Impact Inflator Module:
