Cadillac
>>
2000
>>
Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Navigation System
>>
PWR And GRD
PWR And GRD

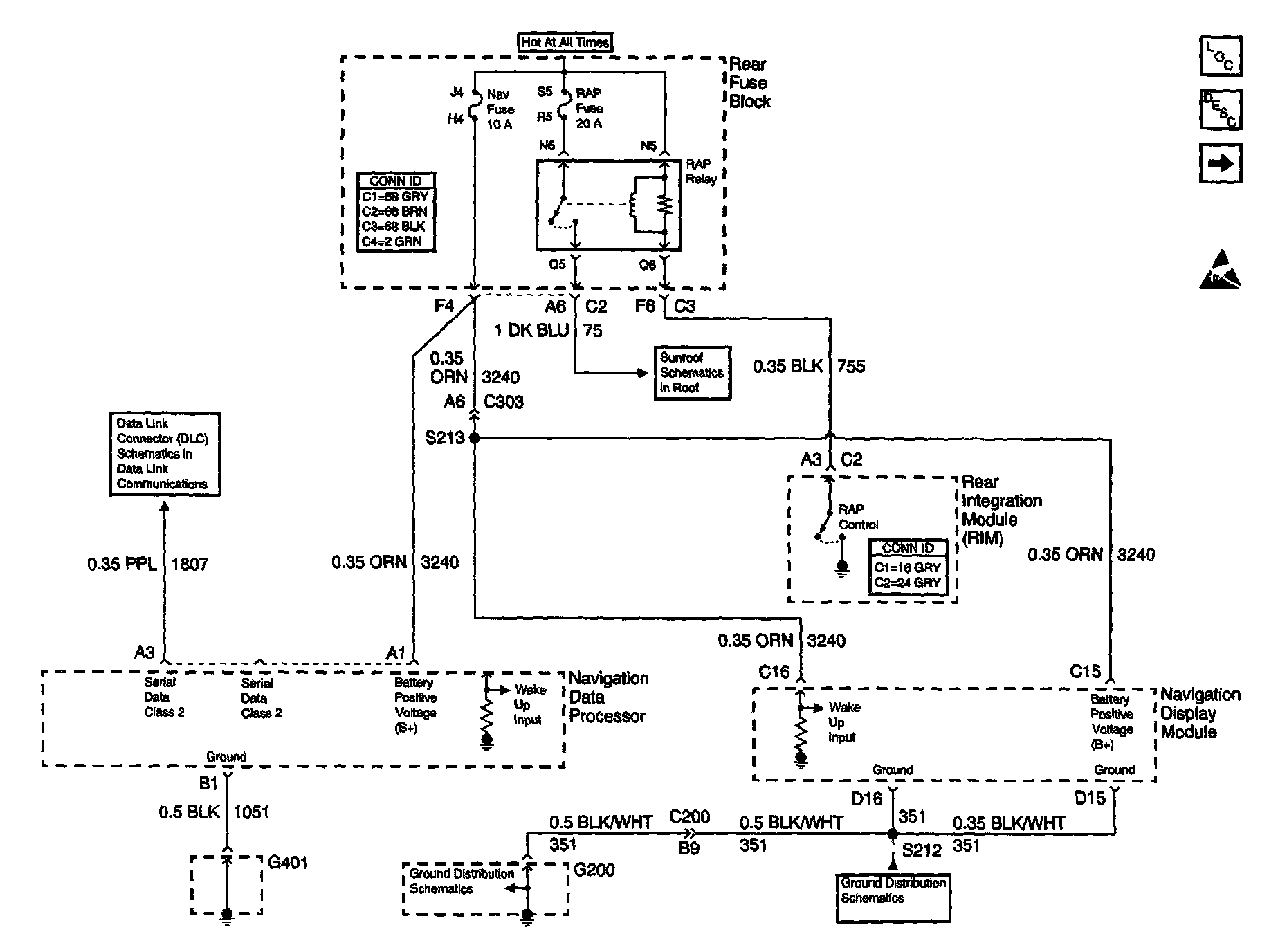

Navigation System Schematics: PWR And GRD:
