A/C Relay, A/C Pressure Sensor, CVRSS and EBCM
A/C Relay, A/C Pressure Sensor, CVRSS and EBCM

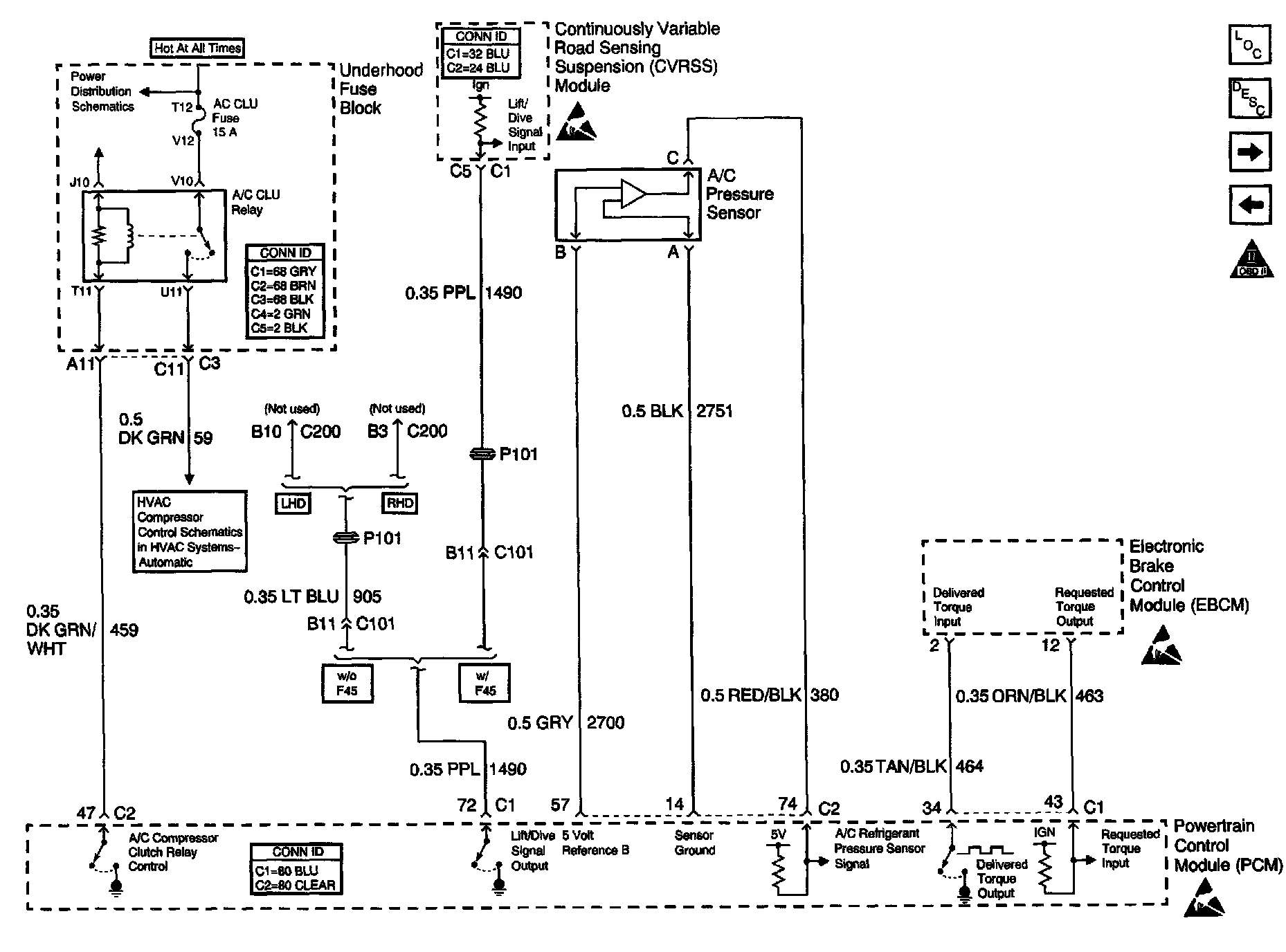

Engine Controls Schematics: A/C Pressure Sensor, CVRSS and EBCM:
