Class 2 Serial Data, MIL, DLC, UART
>>
Data Link Connector Power and Ground
>>
RH Drive
RH Drive

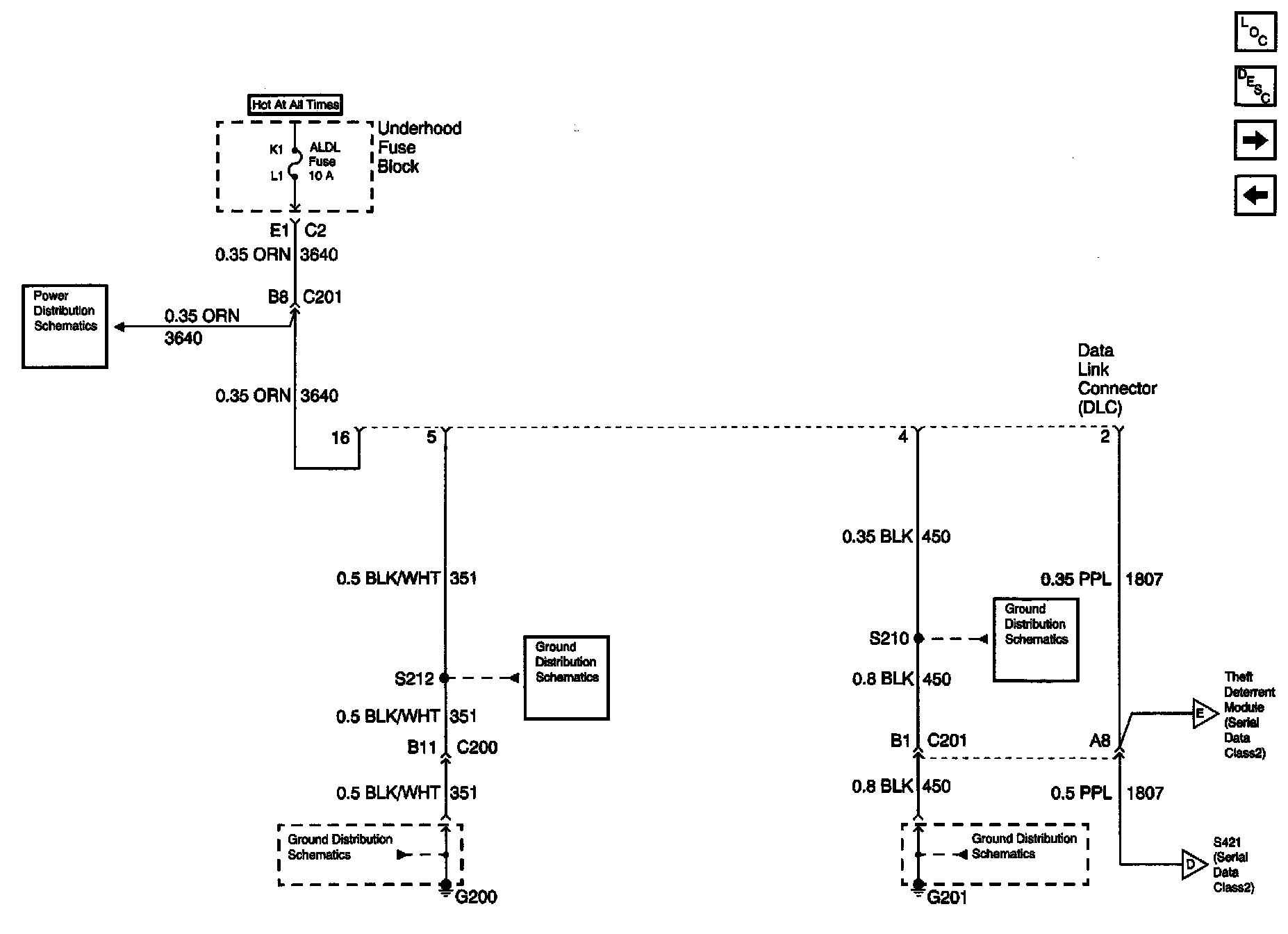

Data Link Connector (DLC) Schematics: Data Link Connector Power and Ground (RH Drive):
