Fuel Pump and Engine Oil Pressure Switch

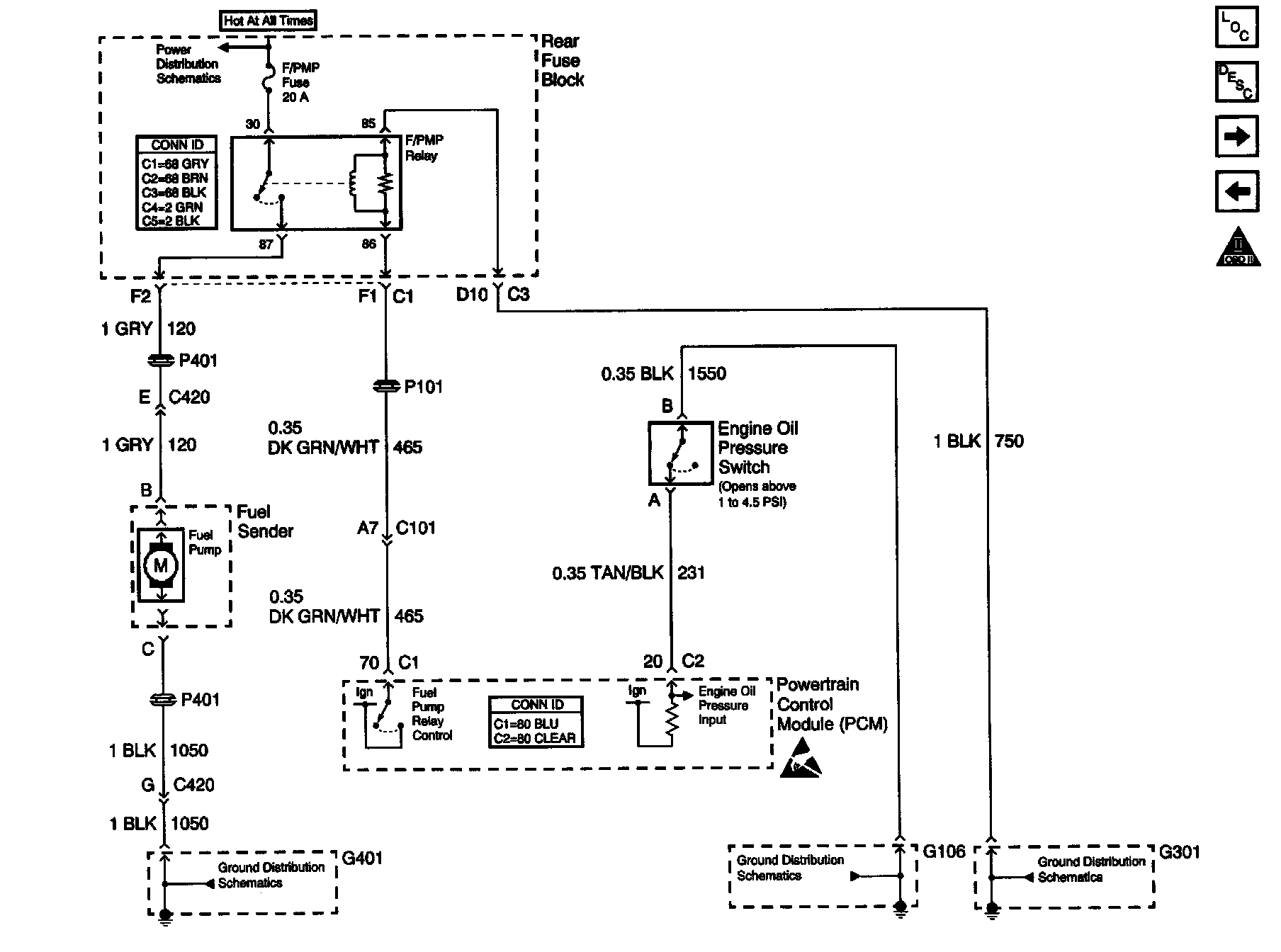

Engine Controls Schematics: Fuel Pump and Engine Oil Pressure Switch:
