Operation CHARM: Car repair manuals for everyone.
Home >> Cadillac >> 2000 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Lumbar Support Schematics >> With Memory Seats

With Memory Seats

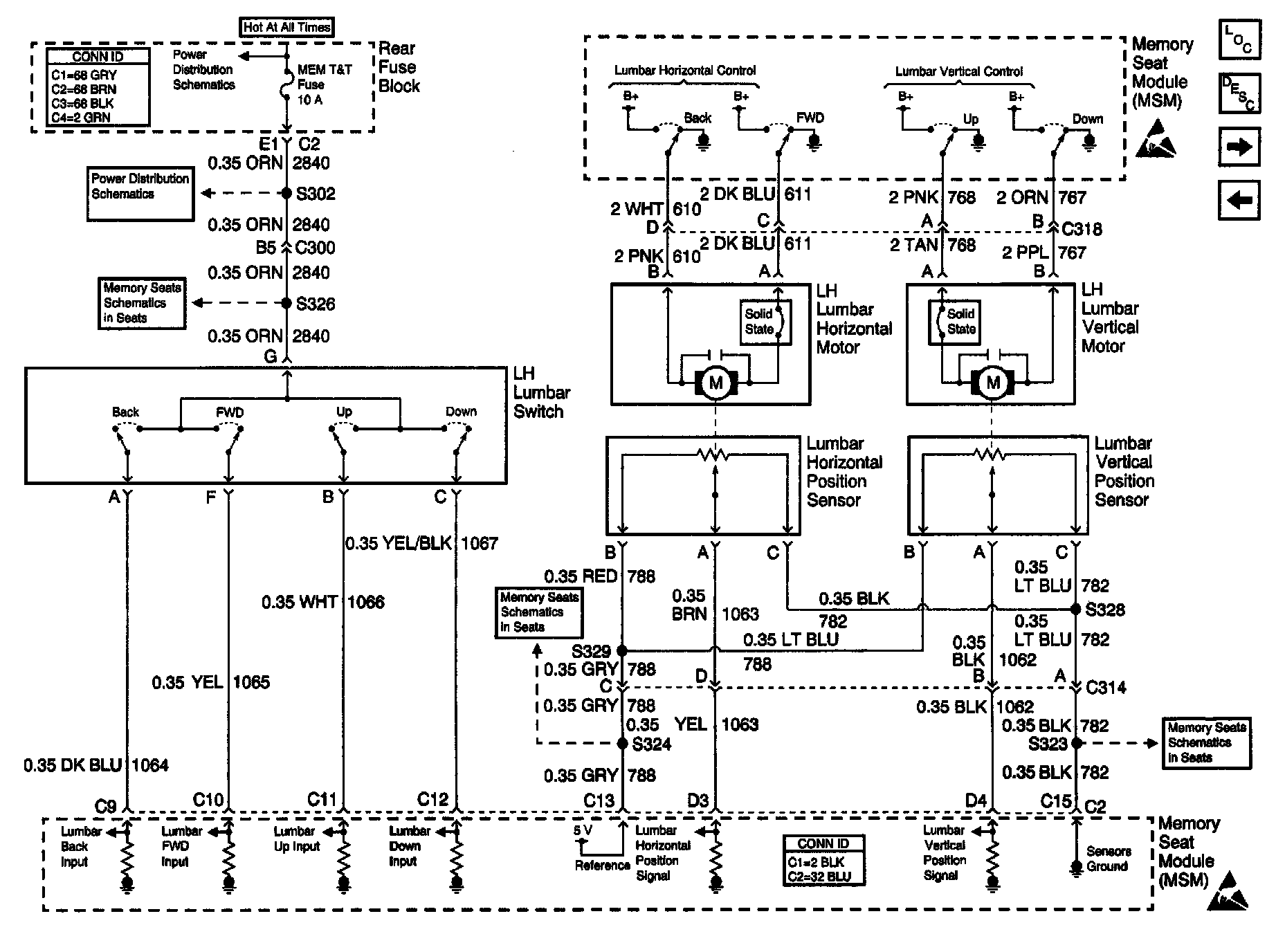

Lumbar Support Schematics: With Memory Seats:
