Suction Hose Replacement
SUCTION HOSE REPLACEMENTREMOVE PROCEDURE
TOOLS REQUIRED
J 39500-B A/C Refrigerant Recovery, Recycling and Recharging System
1. Recover the refrigerant from the system.

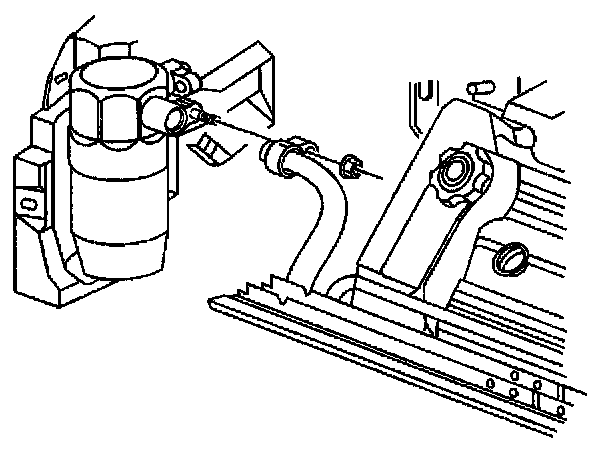

2. Remove the suction hose retaining nut from the accumulator.
3. Remove the suction hose from the accumulator.
4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
5. Remove the front air deflector.

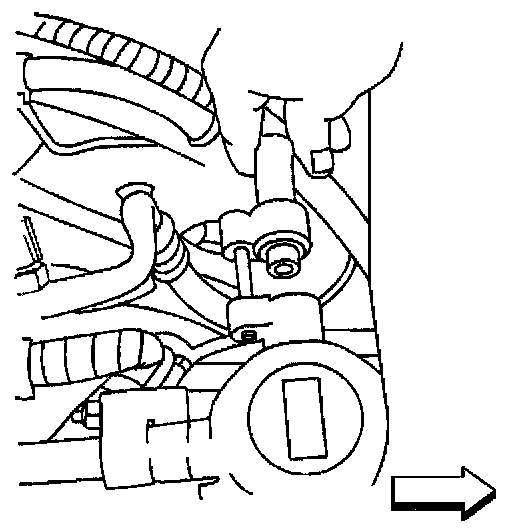

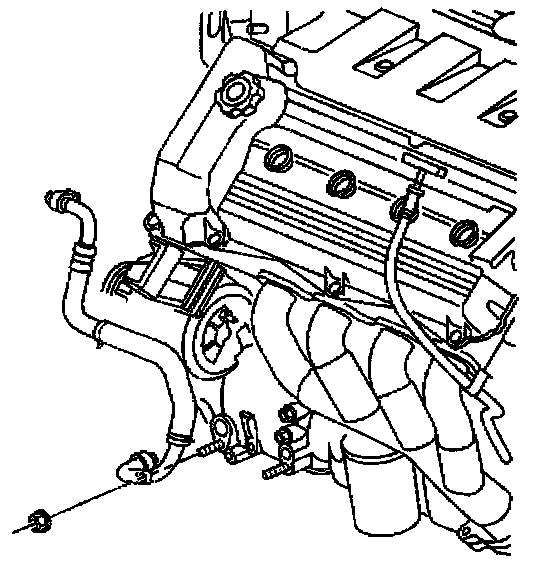

6. Disconnect the suction hose from the compressor.
7. Remove the suction hose.
INSTALLATION PROCEDURE
TOOLS REQUIRED
J 39400-A Electronic Halogen Leak Detector
1. Install the suction hose.
NOTE: Refer to Fastener Notice in Service Precautions.

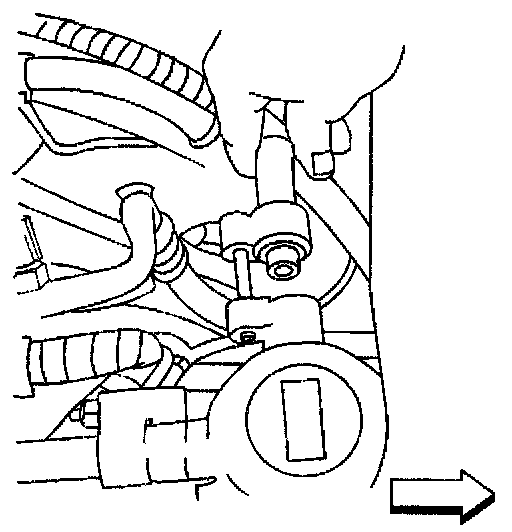

2. Connect the suction hose to the compressor.
Tighten
Tighten the suction hose to 20 N.m (15 lb ft).
3. Lower the vehicle.

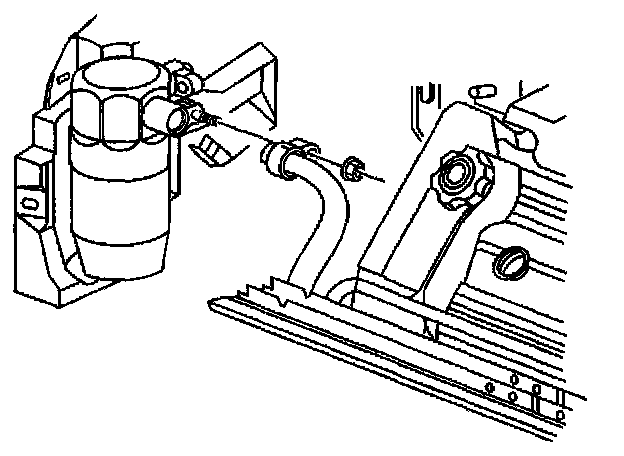

4. Install the suction hose to the accumulator.
5. Install the suction hose retaining nut.
NOTE: Refer to Fastener Notice in Service Precautions. Handling of Refrigerant Lines and Fittings
Tighten
Tighten the suction hose to 20 N.m (15 lb ft).
6. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging. Service and Repair
7. Leak test the A/C system. Refer to Leak Testing. Leak Testing - HVAC System - Automatic
8. Install the front air deflector.
