RHD

Removal Procedure
1. Install a drain pan under the vehicle.

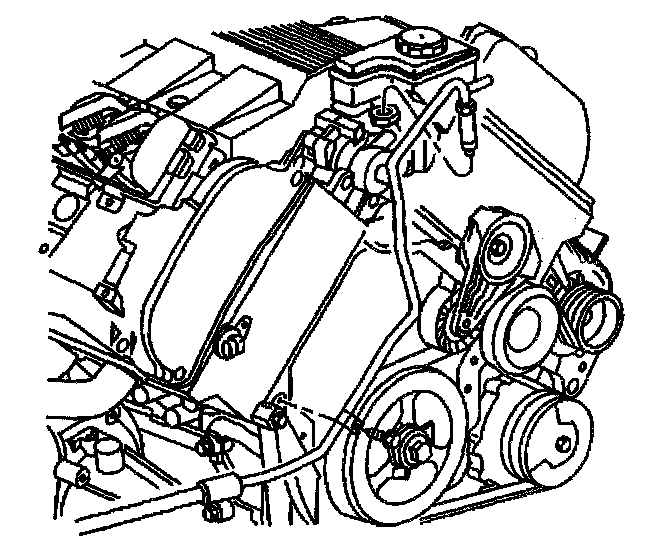

2. Disconnect the power steering pressure hose from the power steering pump.
3. Raise and Support the vehicle. Refer to Vehicle Lifting.
4. Remove the RH tire and wheel. Refer to Tire and Wheel Removal and Installation.
5. Remove the RH fascia extension panel. Refer to Fascia Extension Replacement - Front in Body and Frame.

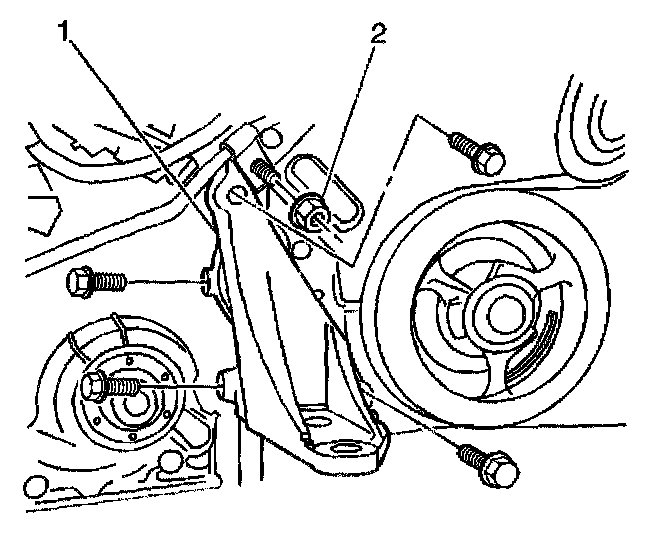

6. Remove the power steering pressure hose bracket retaining nut (2) at the cylinder head.

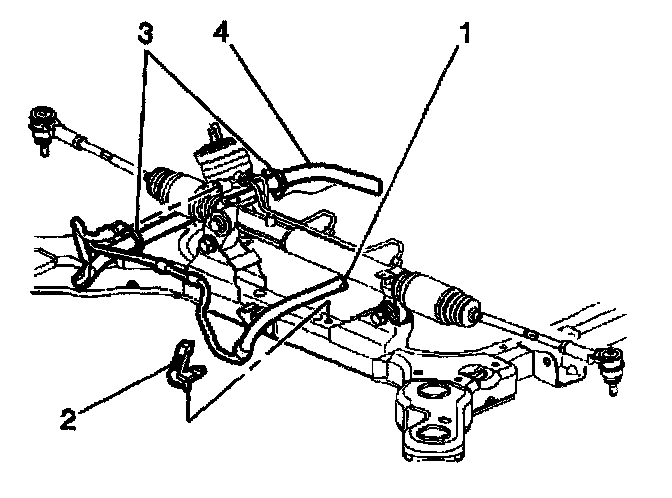

7. Disconnect the power steering pressure hose from the power steering gear.
8. Remove the power steering pressure hose from the vehicle.

Installation Procedure





1. Install the power steering pressure hose to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

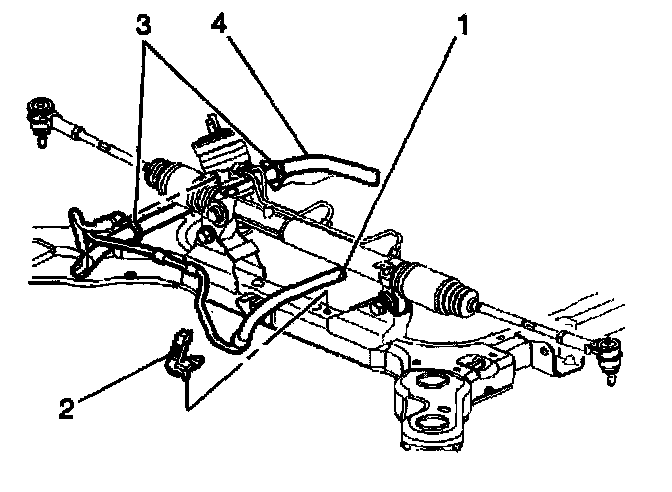

2. Install the power steering pressure hose (1) to the power steering gear.
Tighten the power steering pressure hose to power steering gear to 27 Nm (20 ft. lbs.).





3. Install the power steering pressure hose bracket and retaining nut to the cylinder head.
Tighten power steering pressure hose bracket retaining nut (2) to cylinder head to 9 Nm (8 inch lbs.).
4. Install the fascia extension panel. Refer to Fascia Extension Replacement - Front in Body and Frame.
5. Install the RH tire and wheel. Refer to Tire and Wheel Removal and Installation.
6. Lower the vehicle.

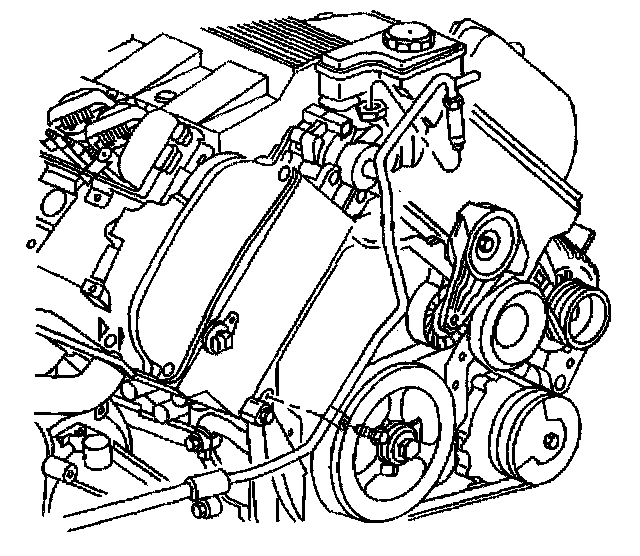

7. Install the power steering pressure hose to the power steering pump.
Tighten the power steering pressure hose to power steering pump to 27 Nm (20 ft. lbs.).
8. Remove the drain pan from under the vehicle.
9. Bleed the power steering system. Refer to Bleeding the Power Steering System.
