Automatic Transmission Mount Replacement - RearRemoval Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Support the engine assembly with a suitable jack.

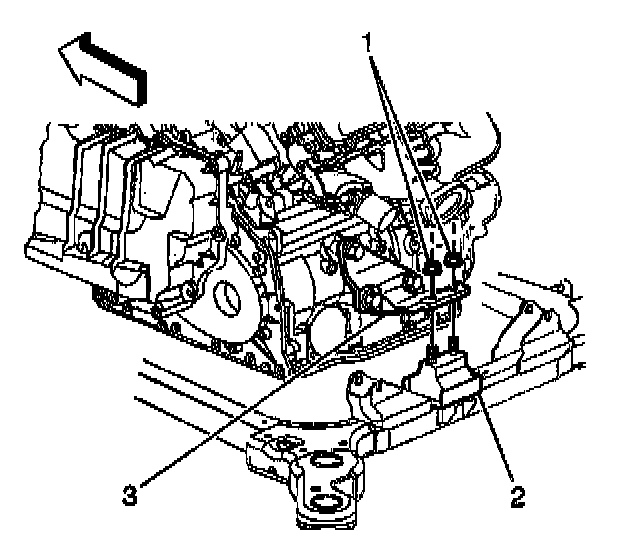

3. Remove the nuts (1) securing the transmission mount (2) to the transmission mount bracket (3).
4. Raise the jack allowing the engine assembly to lift from the engine frame slightly.

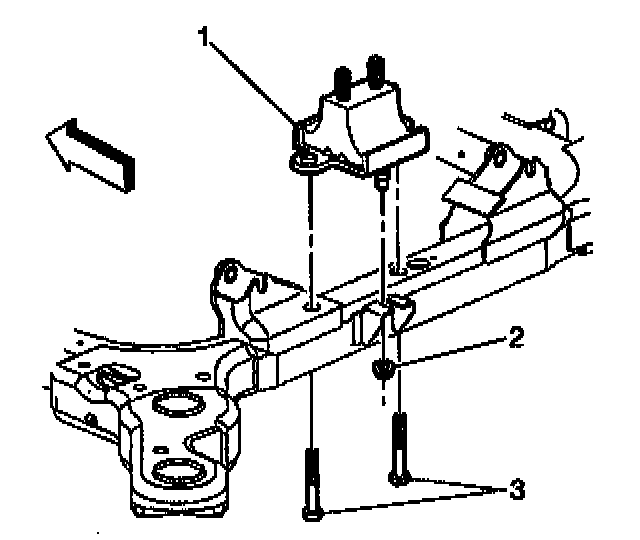

5. Remove the bolts (3) securing the mount to the frame.
6. Remove the 1 nut (2) securing the mount to the frame.
7. Remove the mount (1).
Installation Procedure
1. Install the mount (1).
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the mount attaching bolts (3) and nut (2) securing the mount to the frame.
Tighten the bolts and nut to 70 Nm (52 ft. lbs.).
3. Lower the transmission in position.
4. Install the nuts (1) to the mount (2) and mount bracket (3).
Tighten the mount nut to 75 Nm (55 ft. lbs.).
5. Remove the engine assembly support jack.
6. Lower the vehicle.
