Outlet Hose

Radiator Hose Replacement - Outlet

Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure
1. Drain the cooling system.

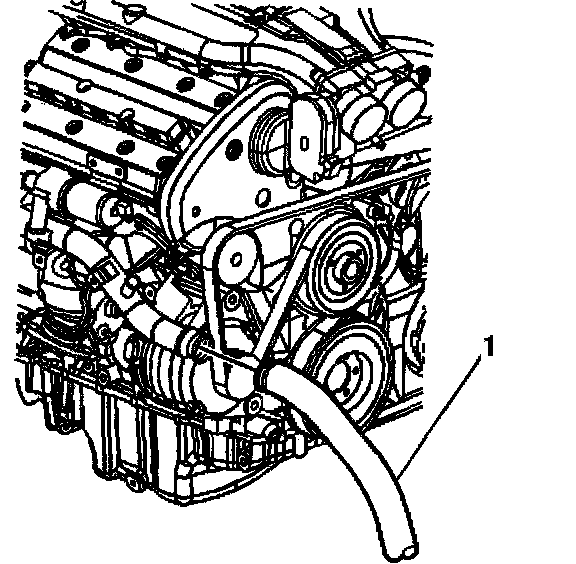

2. Position the J 38185 to the clamp in order to remove the outlet radiator hose (1) from the cooling pipe.
3. Raise the vehicle. Refer to Vehicle Lifting.
Vehicle Lifting

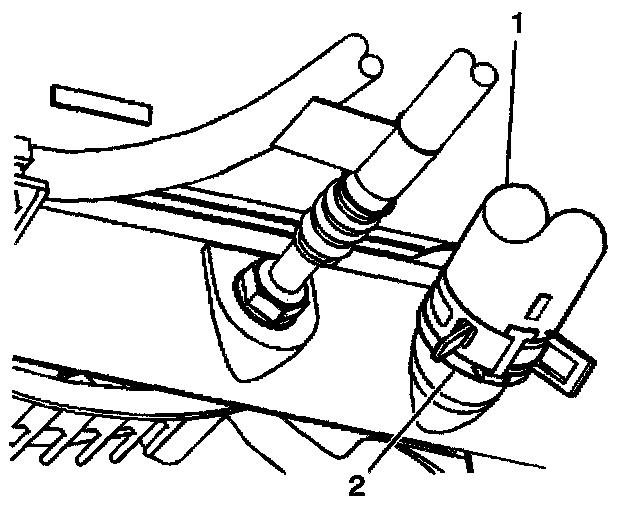

4. Position the J 37097-A to the clamp (2) in order to remove the outlet radiator hose (1) from the radiator.
5. Remove the outlet radiator hose from the vehicle.



Installation Procedure
1. Position the radiator hose into the vehicle.

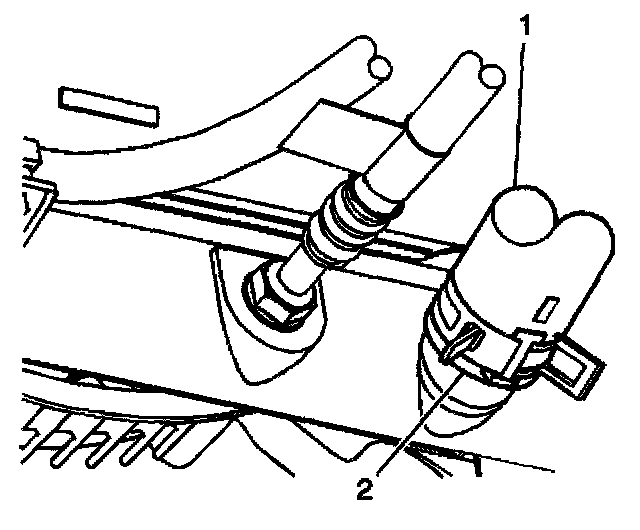

2. Position the J 38185 to the clamp (2) in order to connect the outlet radiator hose (1) to the radiator.
3. Install the air deflector.

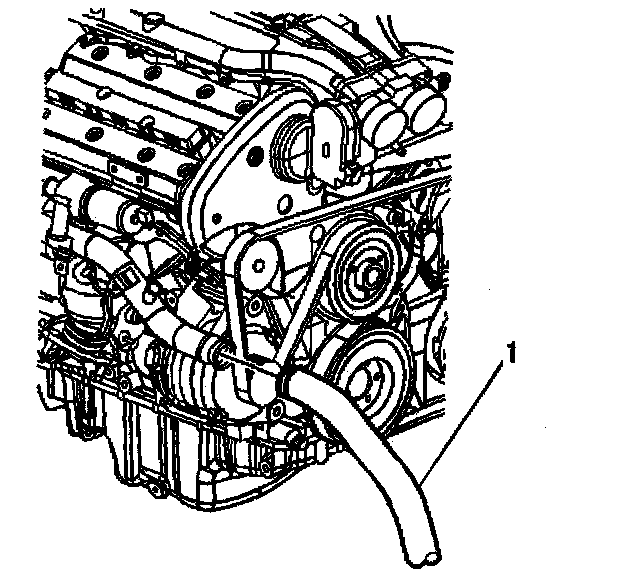

4. Position the J 38185 to the clamp in order to connect the outlet radiator hose (1) to the cooling pipe.
5. Fill the cooling system.
