Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Fluid - A/T >> Testing and Inspection >> Transmission Fluid Level and Condition Check

Transmission Fluid Level and Condition Check

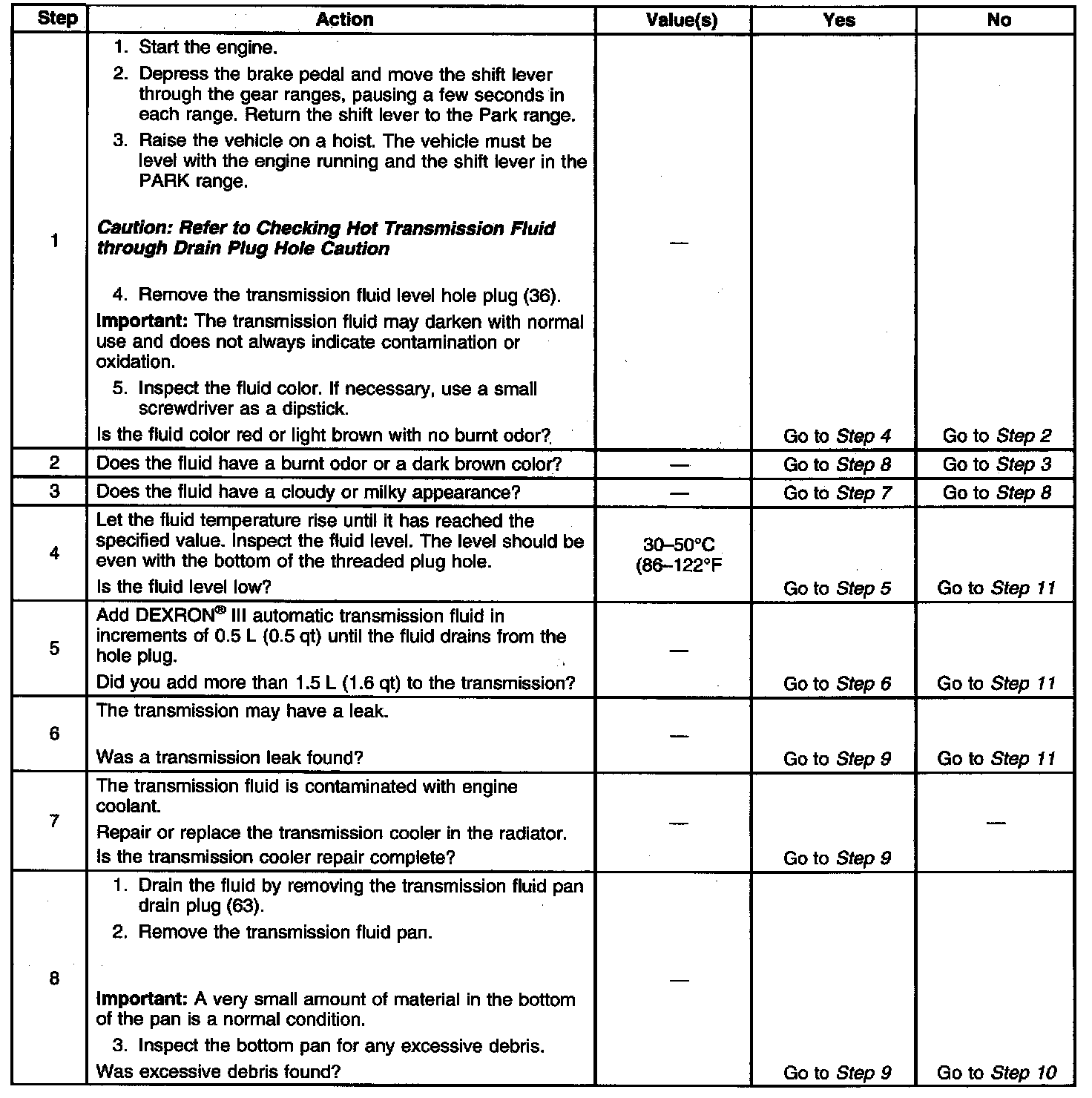

Steps 1-8:

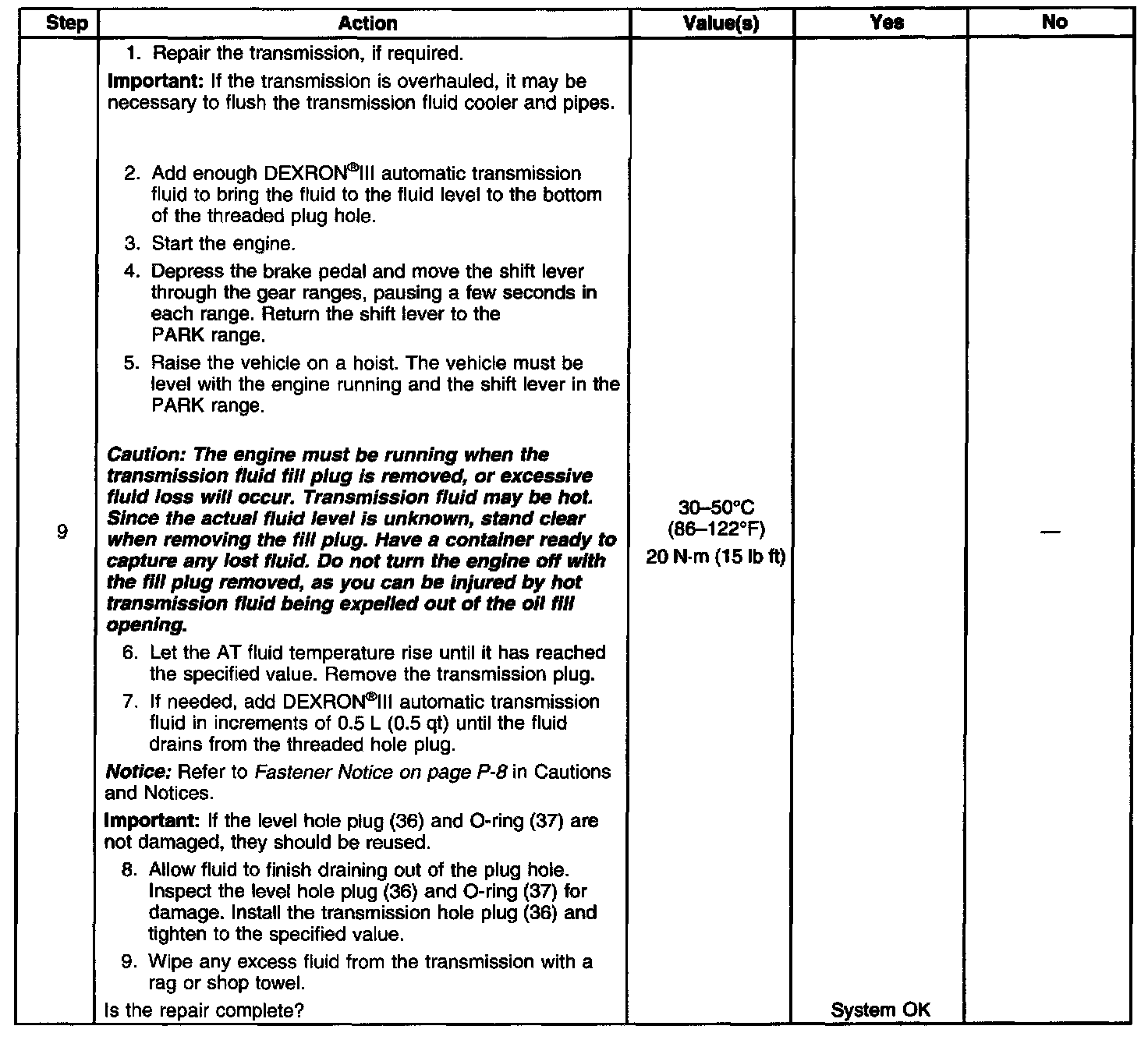

Step 9:

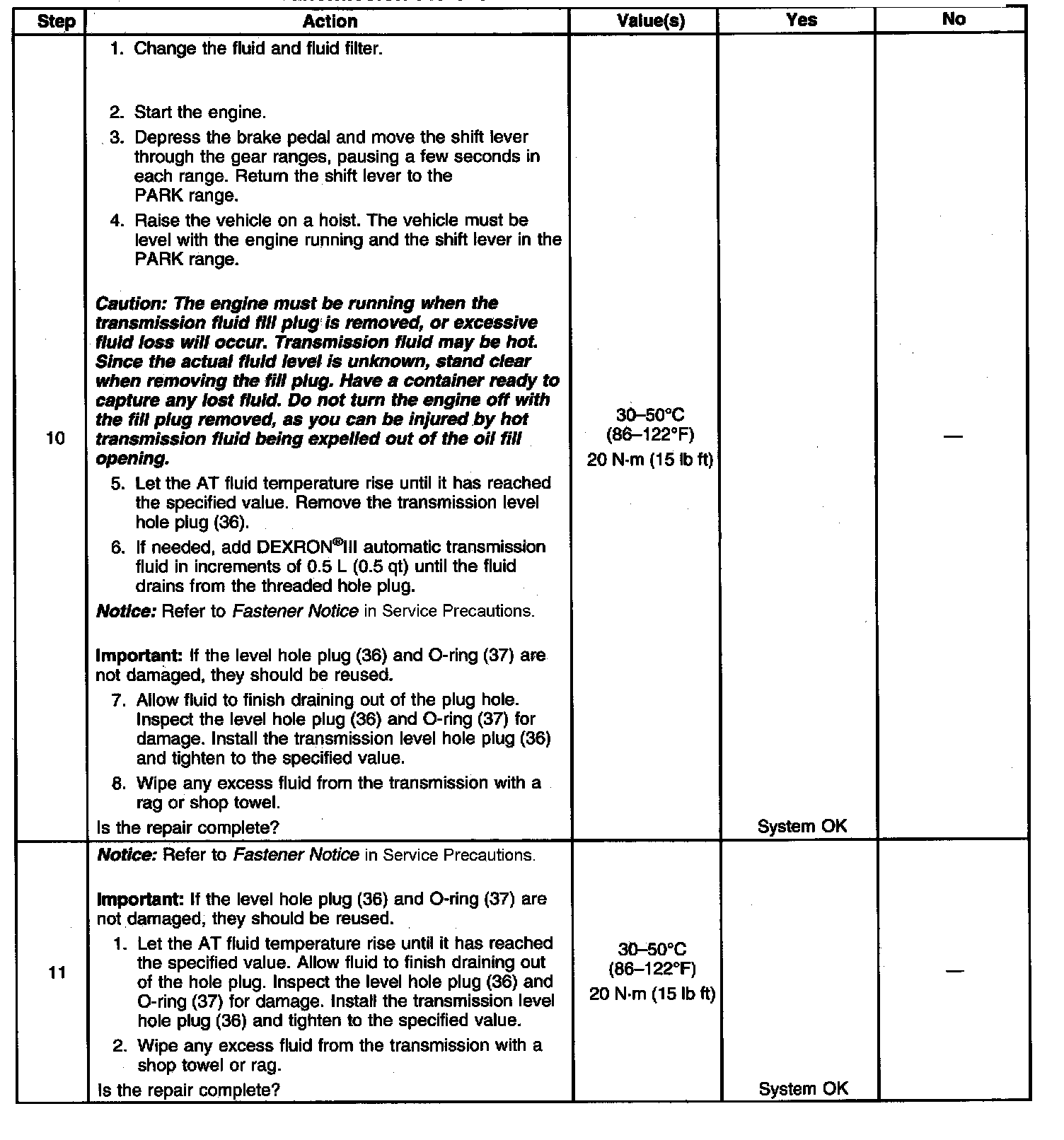

Steps 10-11:
