Air Injection Vacuum Control Solenoid Valve: Locations

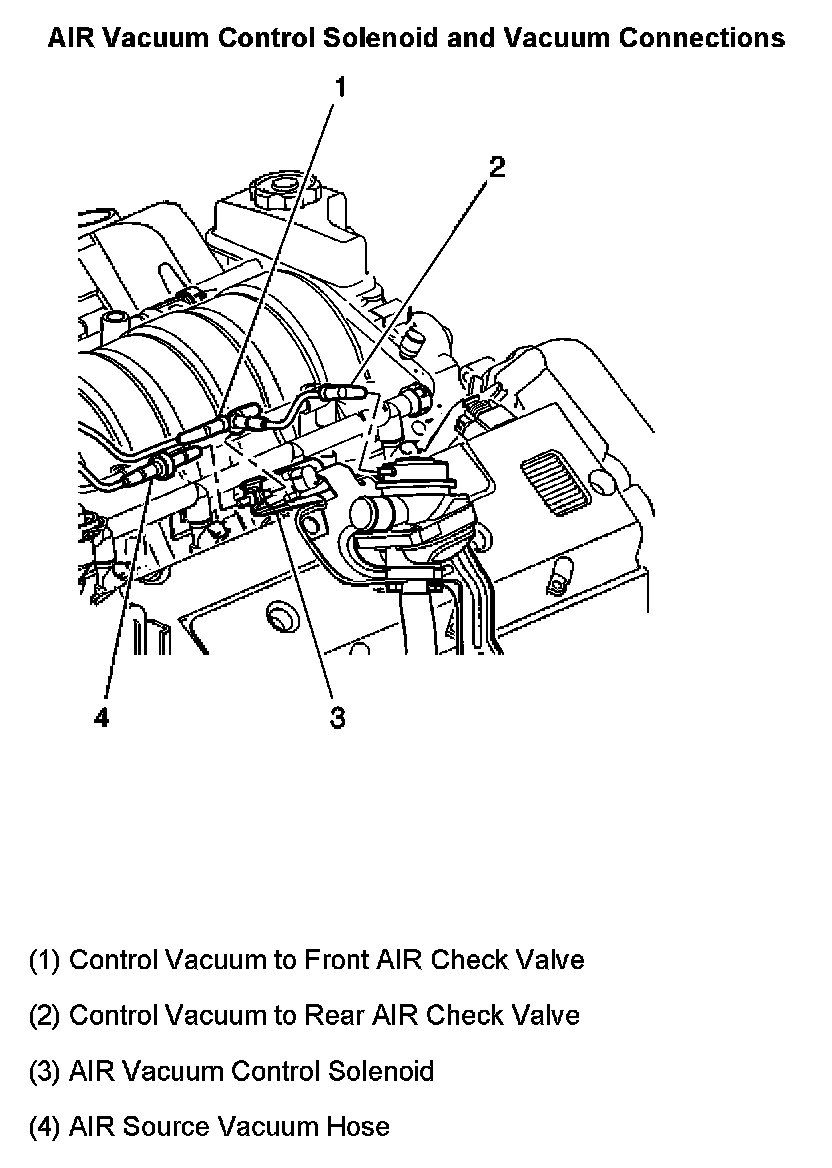

AIR Vacuum Control Solenoid And Vacuum Connections:
