Automatic Transmission Mount Bracket Replacement- Left

Automatic Transmission Mount Bracket Replacement- Left
Removal Procedure
1. Raise and support the vehicle.
2. Support the powertrain assembly with a suitable jack.

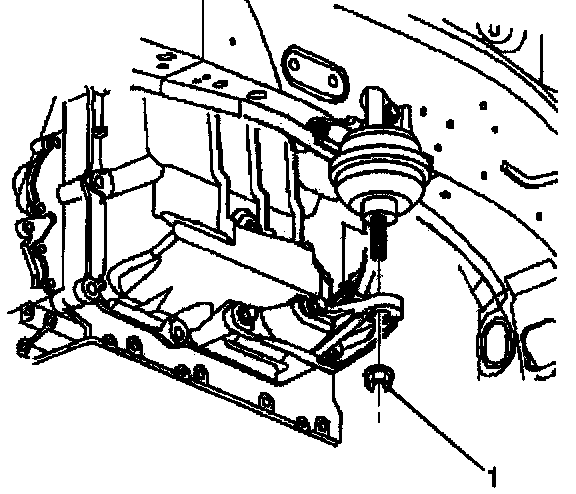

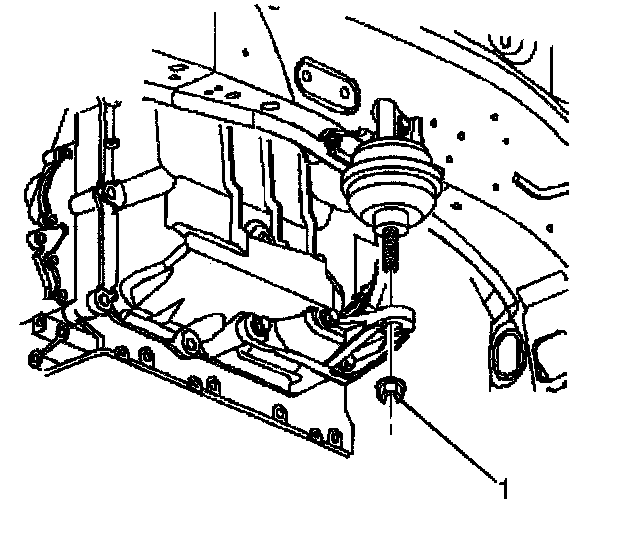

3. Remove the nut (1) securing the transmission mount to the transmission mount bracket.
4. Lower the jack allowing the engine to lower slightly.

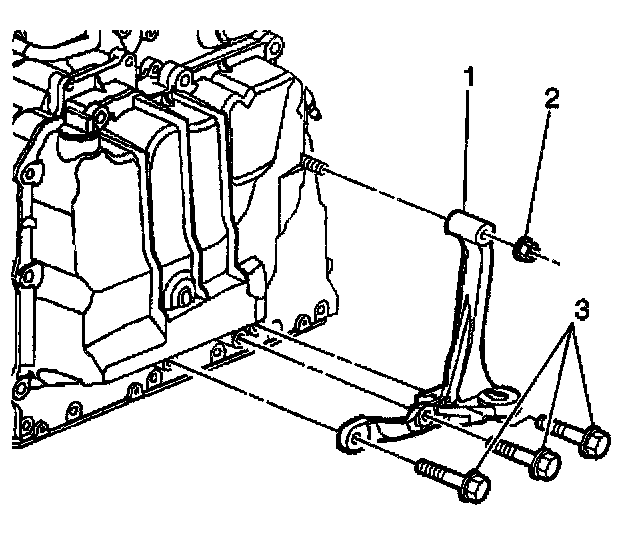

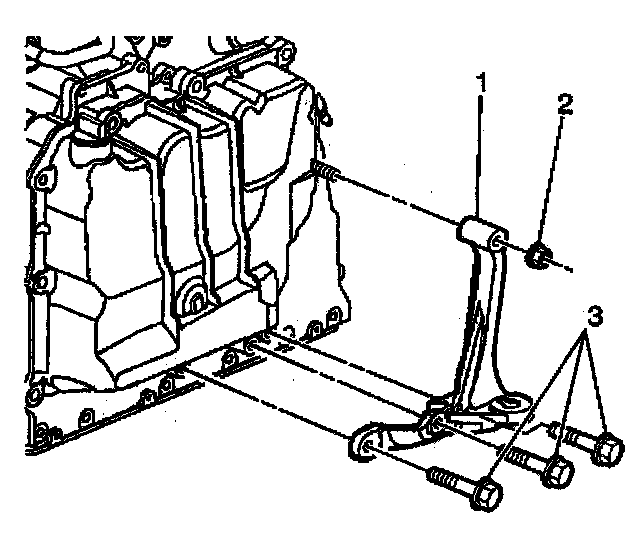

5. Remove the transmission mount bracket mounting bolts (3) and nut (2).
6. Remove the transmission mount bracket (1).

Installation Procedure





1. Install the transmission mount bracket (1) to the transmission.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the transmission mount bracket mounting bolts (3) and nut (2).
^ Tighten the bolts and nut to 50 Nm (37 ft. lbs.).
3. Raise the engine and transmission assembly into position.





4. Install the nut (1) to the mount and mount bracket.
^ Tighten the mount nut to 75 Nm (55 ft. lbs.).
5. Remove the engine assembly support jack.
6. Lower the vehicle.
