Deflector Replacement - Instrument Panel Air
DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIRREMOVAL PROCEDURE
1. Grasp the center of the air outlet deflector.
IMPORTANT: The air outlet deflectors are not interchangeable, note the deflector location during removal.

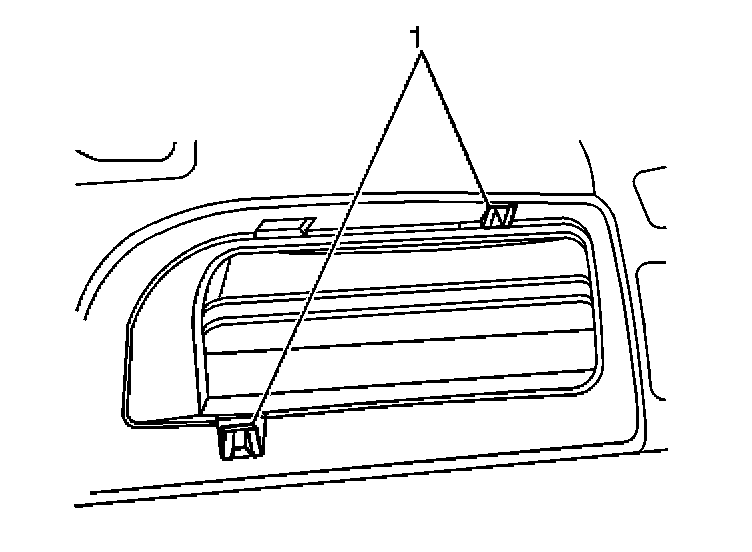

2. Using a small flat-bladed tool, release the retainers (1) from the inside of the air outlet deflector, while pulling the deflector away from the I/P.

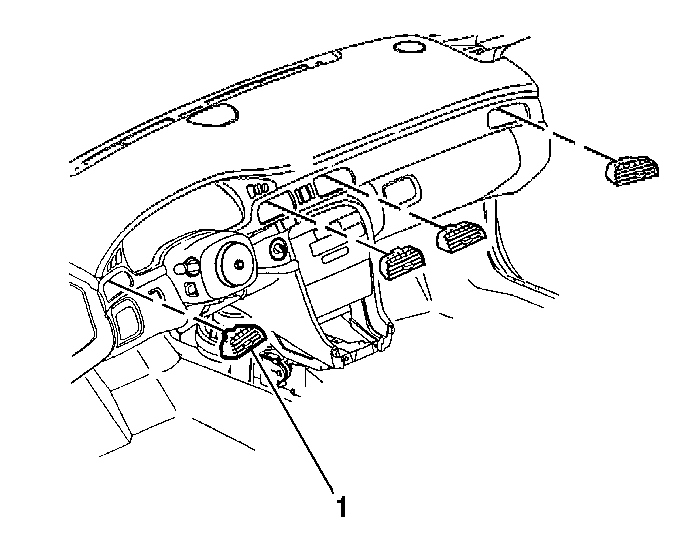

3. Remove the air outlet deflectors (1).
INSTALLATION PROCEDURE
1. Align the air outlet deflector (1) with the I/P opening.
2. Push the air outlet deflector (1) into the I/P opening until the retainers are engaged.
3. Verify proper operation and movement of the air outlet deflector.
