Ignition Coil(S) Replacement - Bank 2
IGNITION COIL(S) REPLACEMENT - BANK 2TOOLS REQUIRED
J 43301 Coil Pack Remover
REMOVAL PROCEDURE

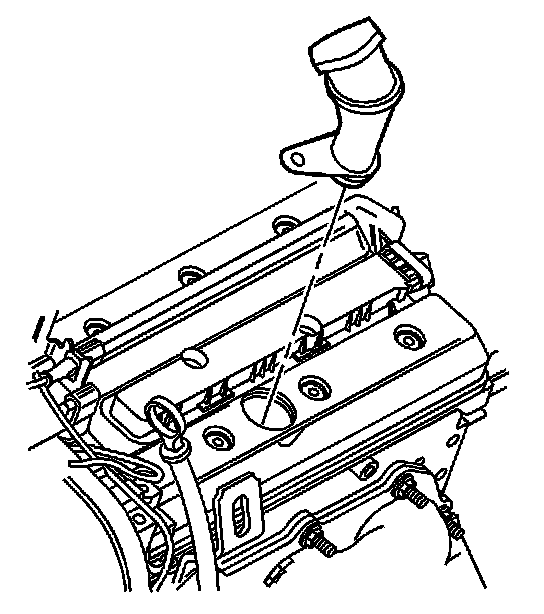

1. Remove the oil filler spout by unlocking the tab and twisting counterclockwise.

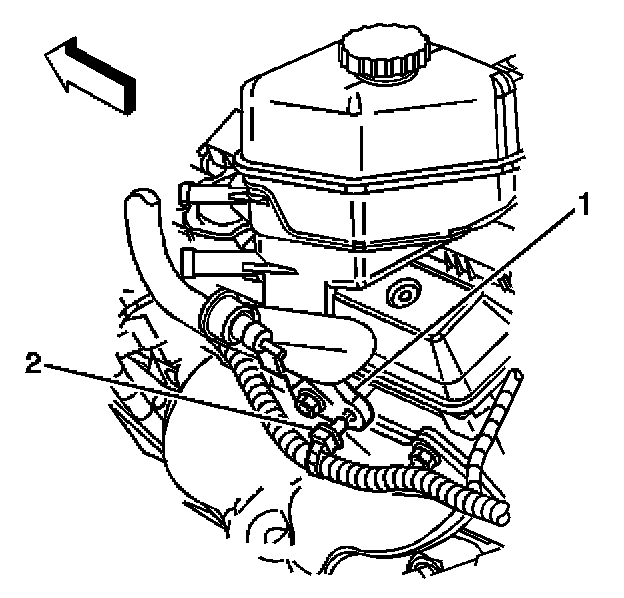

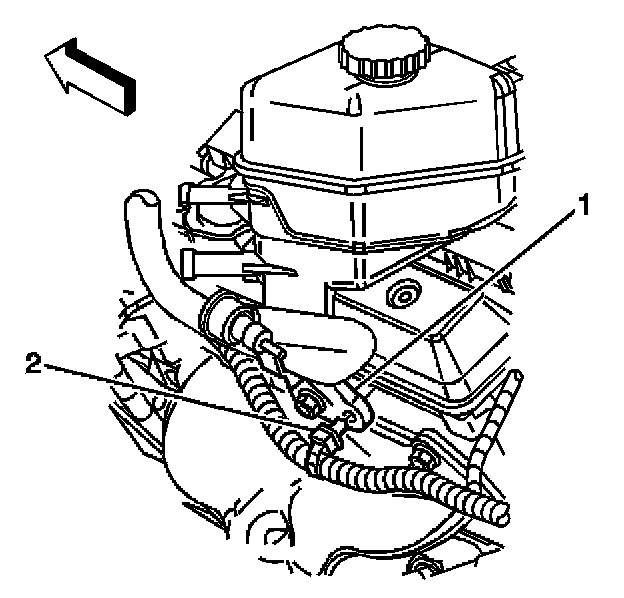

2. Disconnect the following from the remote power steering fluid reservoir (1):
- The vacuum brake booster hose
- The wiring harness (2)

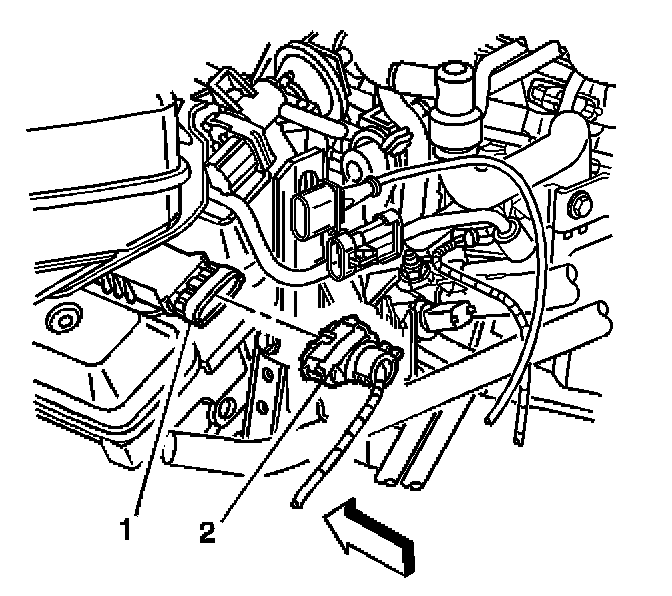

3. Disconnect the vacuum brake booster hose from the vacuum source.

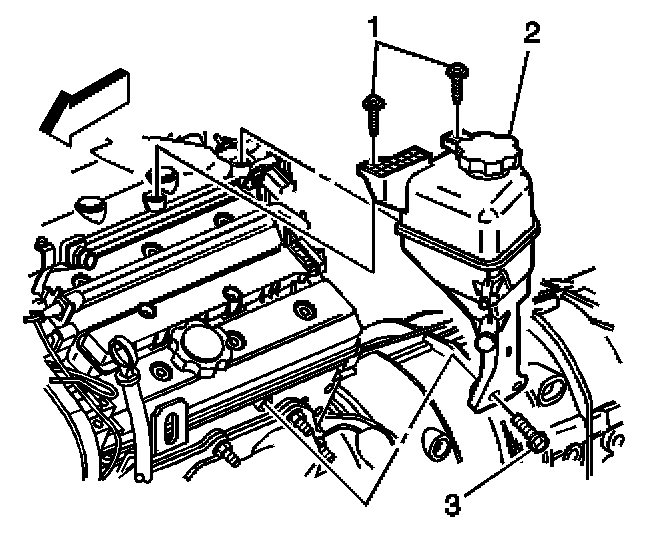

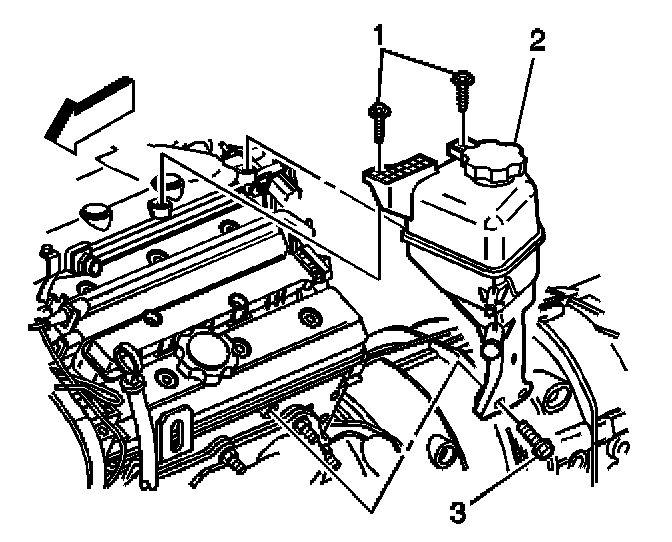

4. Remove the remote power steering fluid reservoir mounting bolts (1, 3) ONLY, and position aside.

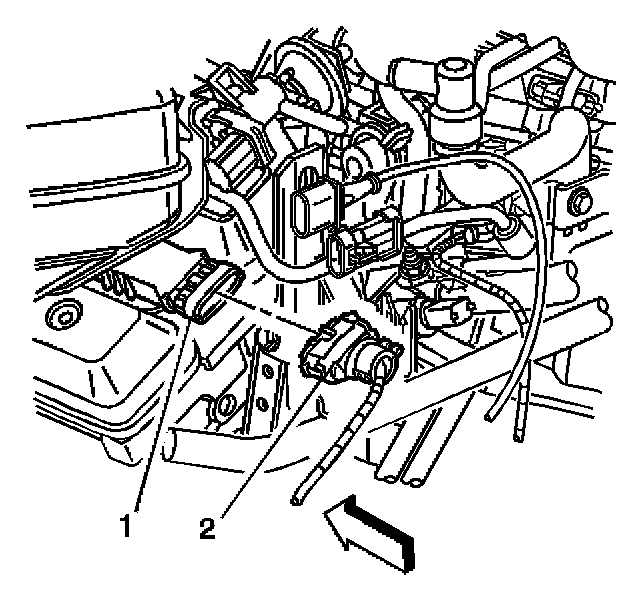

5. Disconnect the electrical connector (2) from the coil pack (1).

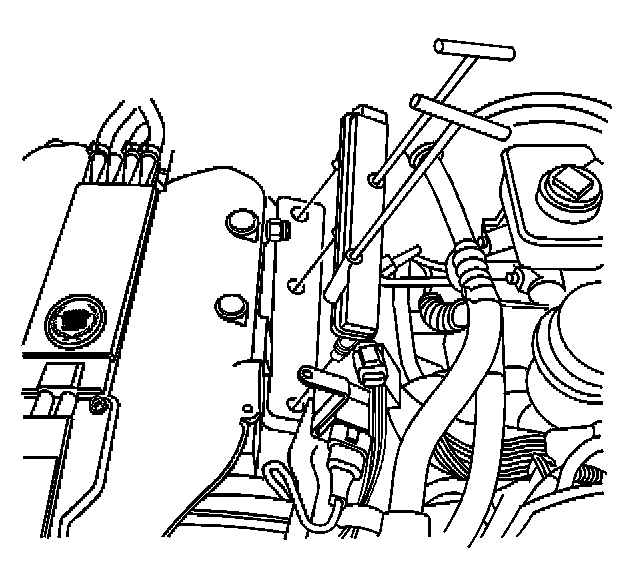

6. Remove the coil pack retainer bolts.
IMPORTANT: DO NOT overtighten the J 43301.

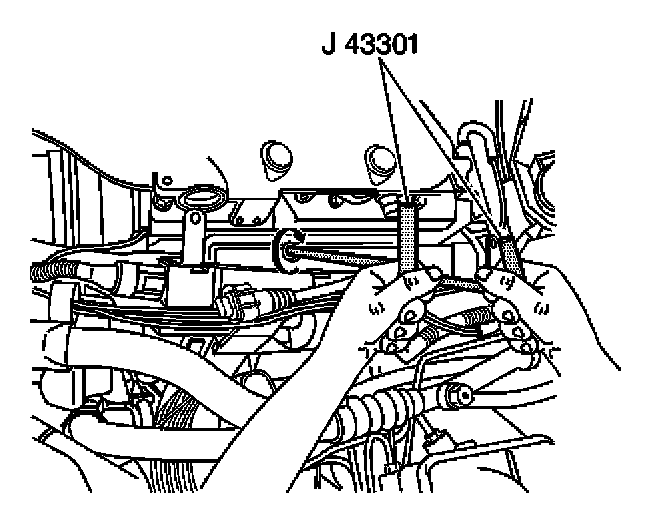

7. Thread the J 43301 into the coil pack.
8. With even pressure, lift and remove the coil pack from the cam cover.
INSTALLATION PROCEDURE

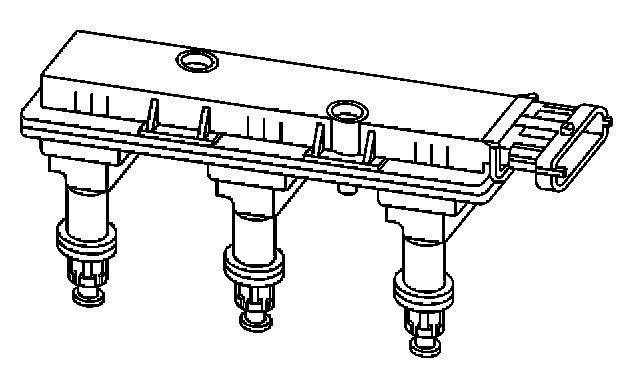

1. Inspect the coil pack seals and spark plug boots for damage or wear.
Replace as necessary.
2. Align the spark plug boots with the spark plugs.
3. Carefully press and seat the coil pack in place.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the coil pack retainer bolts.
Tighten
Tighten the coil pack retainer bolts to 8 N.m (71 lb in).
5. Connect the electrical connector (2) to the coil pack (1).
6. Install the remote power steering fluid reservoir mounting bolts (1, 3).
Tighten
- Tighten the remote power steering fluid reservoir to intake plenum mounting bolts (1) to 9 N.m (80 lb in).
- Tighten the remote power steering fluid reservoir to cylinder head mounting bolt (3) to 25 N.m (18 lb ft).
7. Connect the following to the remote power steering fluid reservoir (1):
- The vacuum brake booster hose
- The wiring harness (2)
8. Connect the vacuum brake booster hose to the vacuum source.

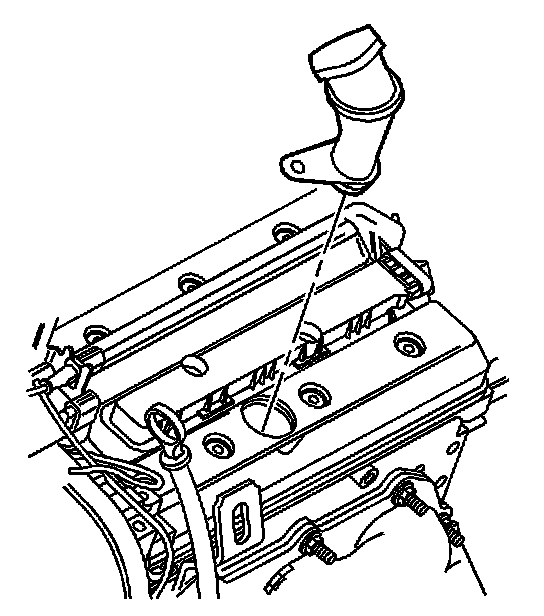

9. Install the oil filler spout by twisting clockwise and snapping in place.
