Pilot Bearing: Service and Repair

Pilot Bearing Replacement (CTS)

Tools Required
^ J23907 Slide Hammer with Bearing Adapter

Removal Procedure
1. Remove the clutch.

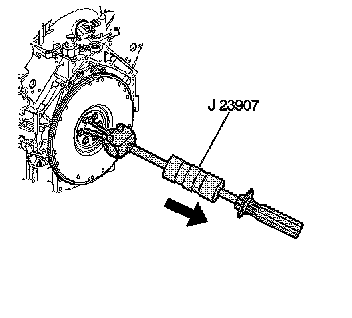

2. Using the J23907 remove the clutch pilot bearing.

Installation Procedure

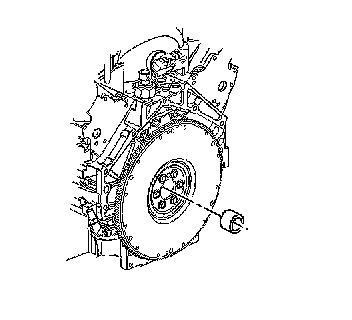

1. Using a suitable size socket, install the clutch pilot bearing.
2. Install the clutch.
