Discharge Air Temperature Sensor / Switch: Locations

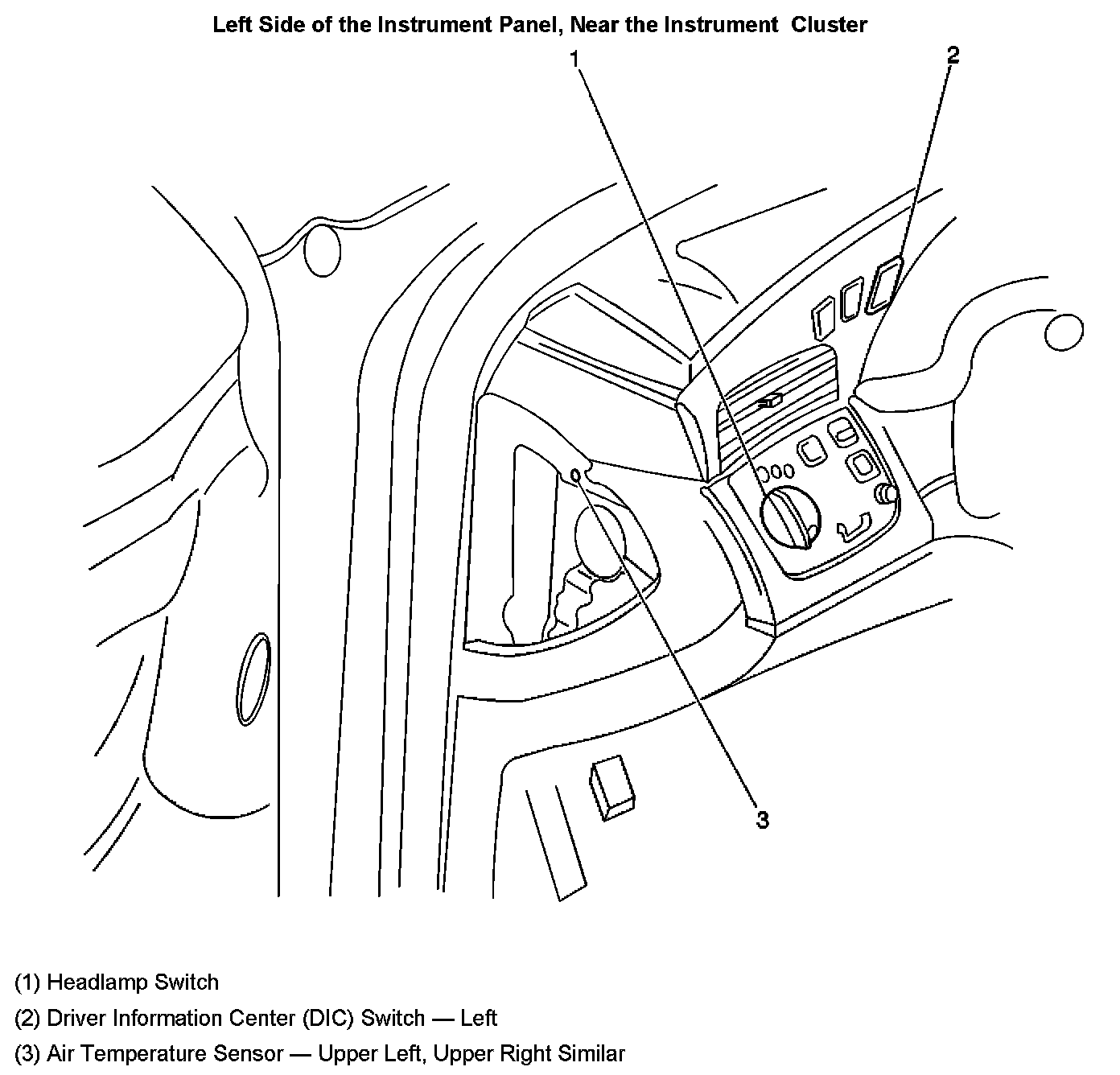

Left Side Of The Instrument Panel, Near The Instrument Cluster:

Center Front Of The Passenger Compartment, Under The Front Console:

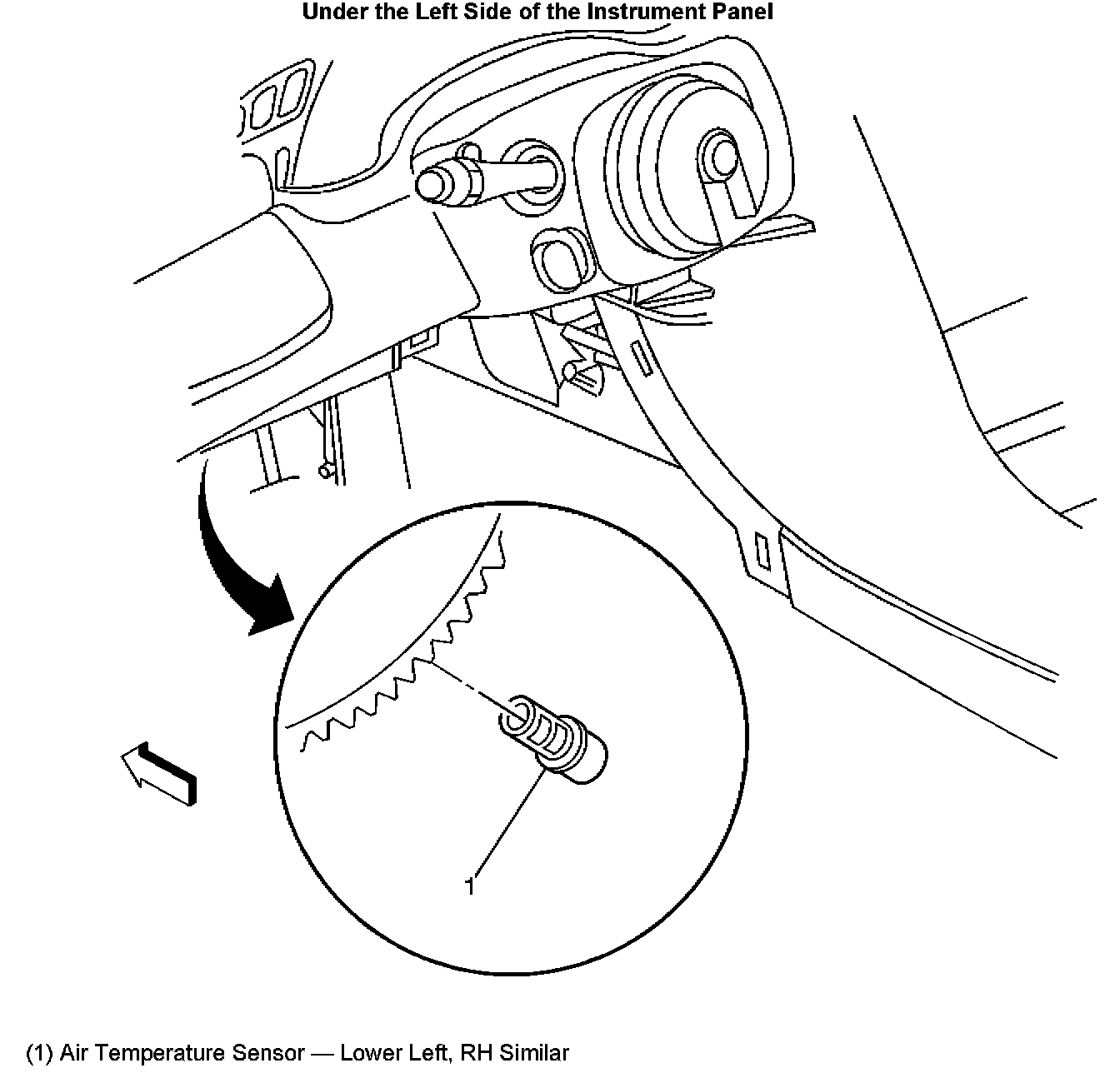

Under The Left Side Of The Instrument Panel:
