Power Seat Switch
>>
Seat Adjuster Switch - Passenger
Seat Adjuster Switch - Passenger

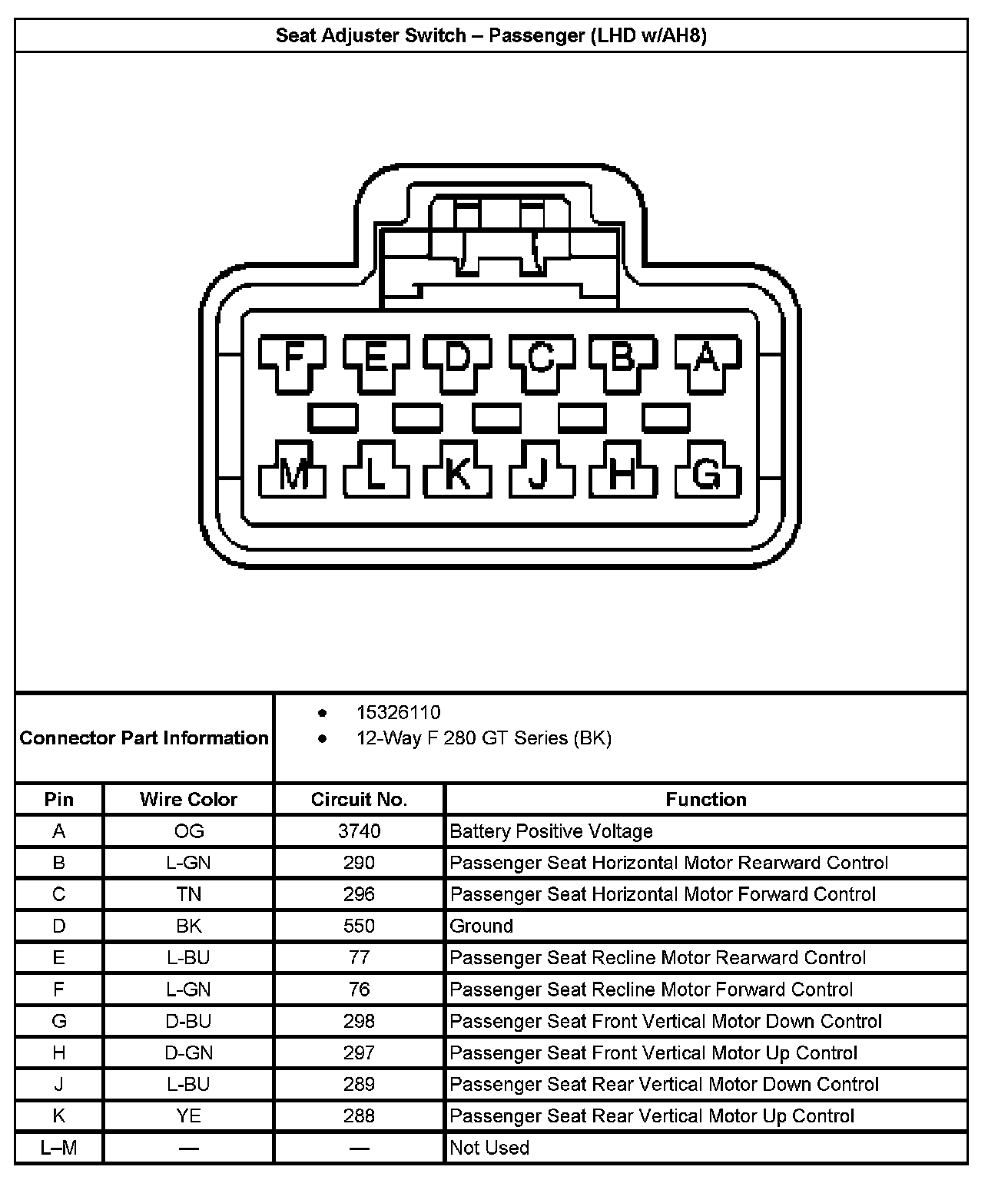

Seat Adjuster Switch - Passenger (LHD with RPO Code AH8):

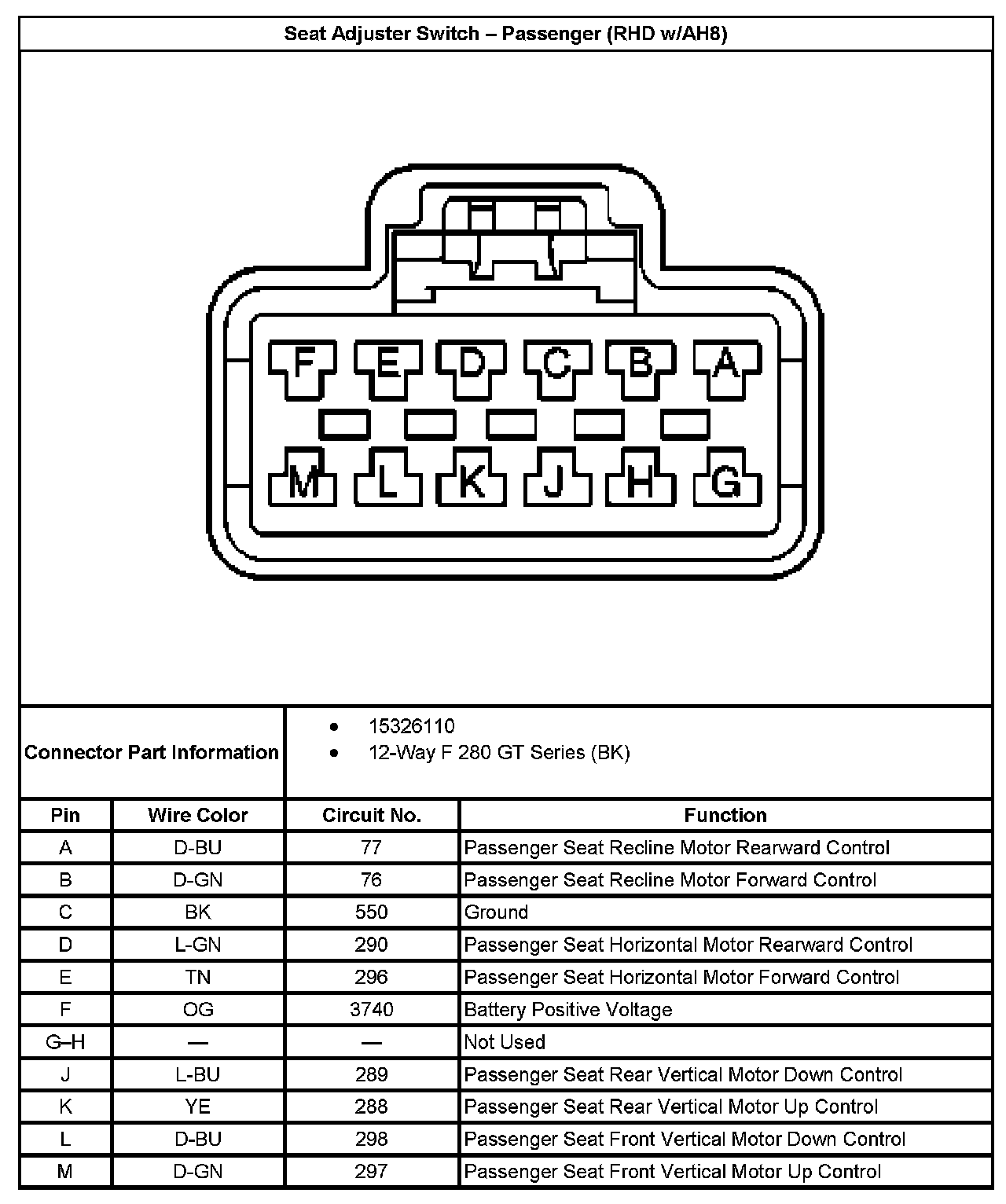

Seat Adjuster Switch - Passenger (RHD with RPO Code AH8):
