Transmission Mount: Service and Repair

Transmission Mount Replacement - Rear
Removal Procedure
1. Remove the exhaust system.
2. Support the transmission with a suitable jack and a block of wood.
3. Remove the transmission support.

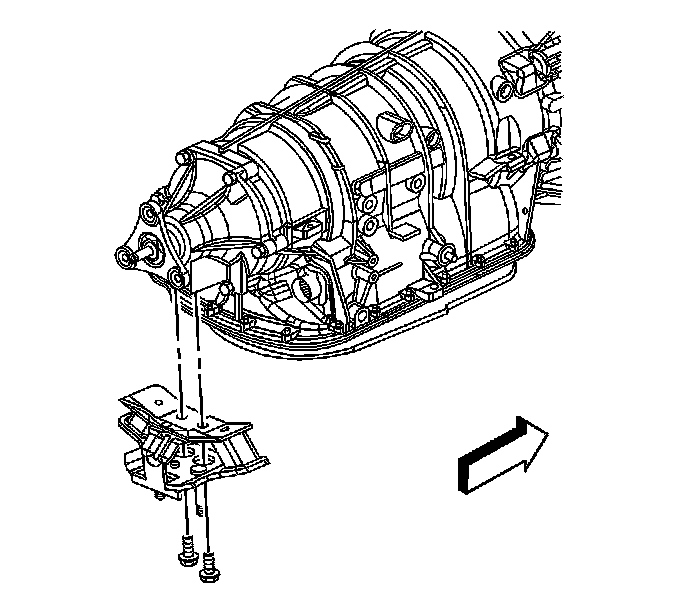

4. Remove the transmission mount bolts.
5. Remove the transmission mount from the vehicle.

Installation Procedure
1. Install the transmission mount to the vehicle.





2. Notice: Install the transmission mount bolts.

Tighten the bolts to 60 Nm (44 ft. lbs.).
3. Install the transmission support.
4. Remove the support from under the transmission.
5. Install the exhaust system.
6. Lower the vehicle.
