Scan Tool Output Controls

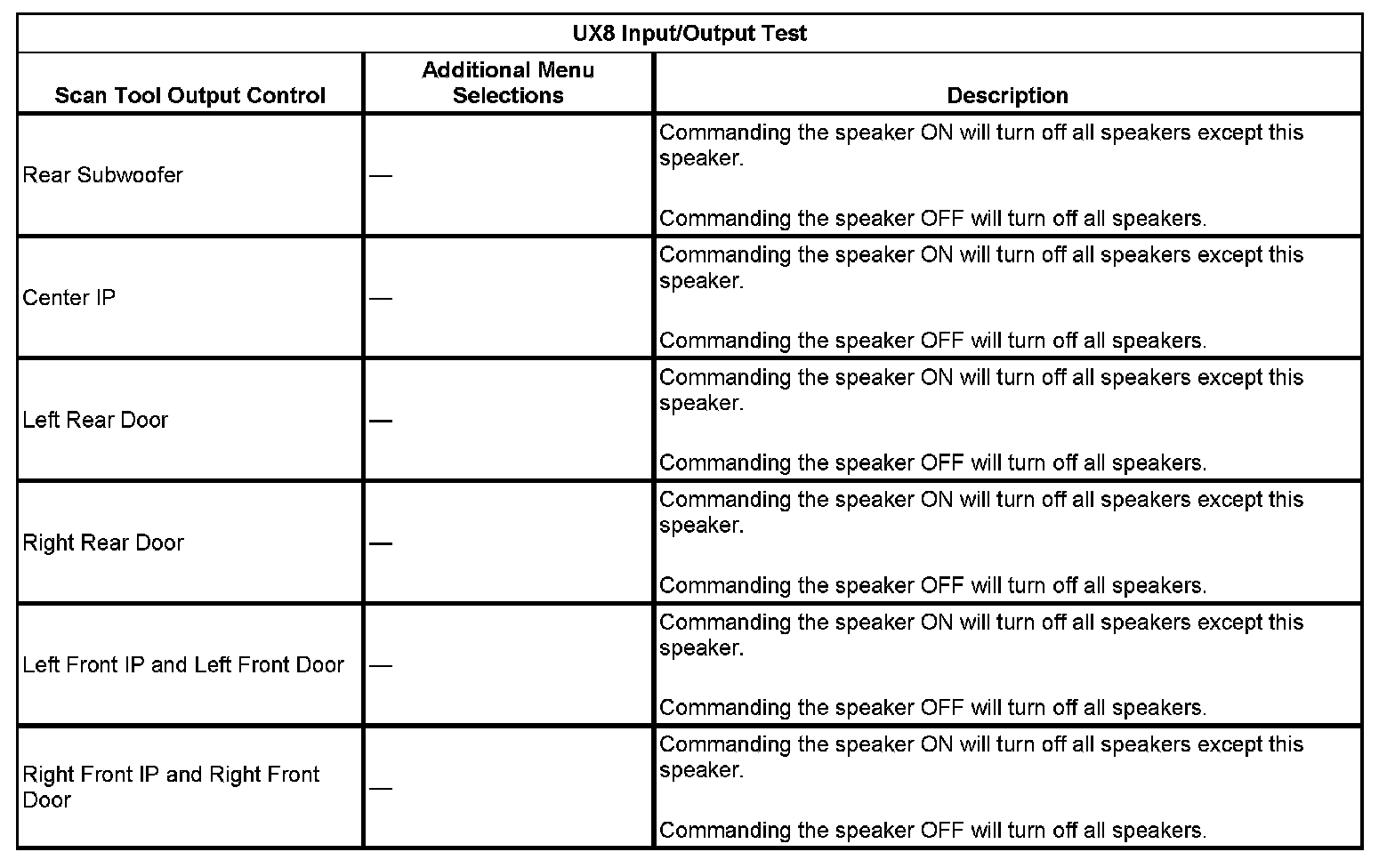

UX8 Input/Output Test:

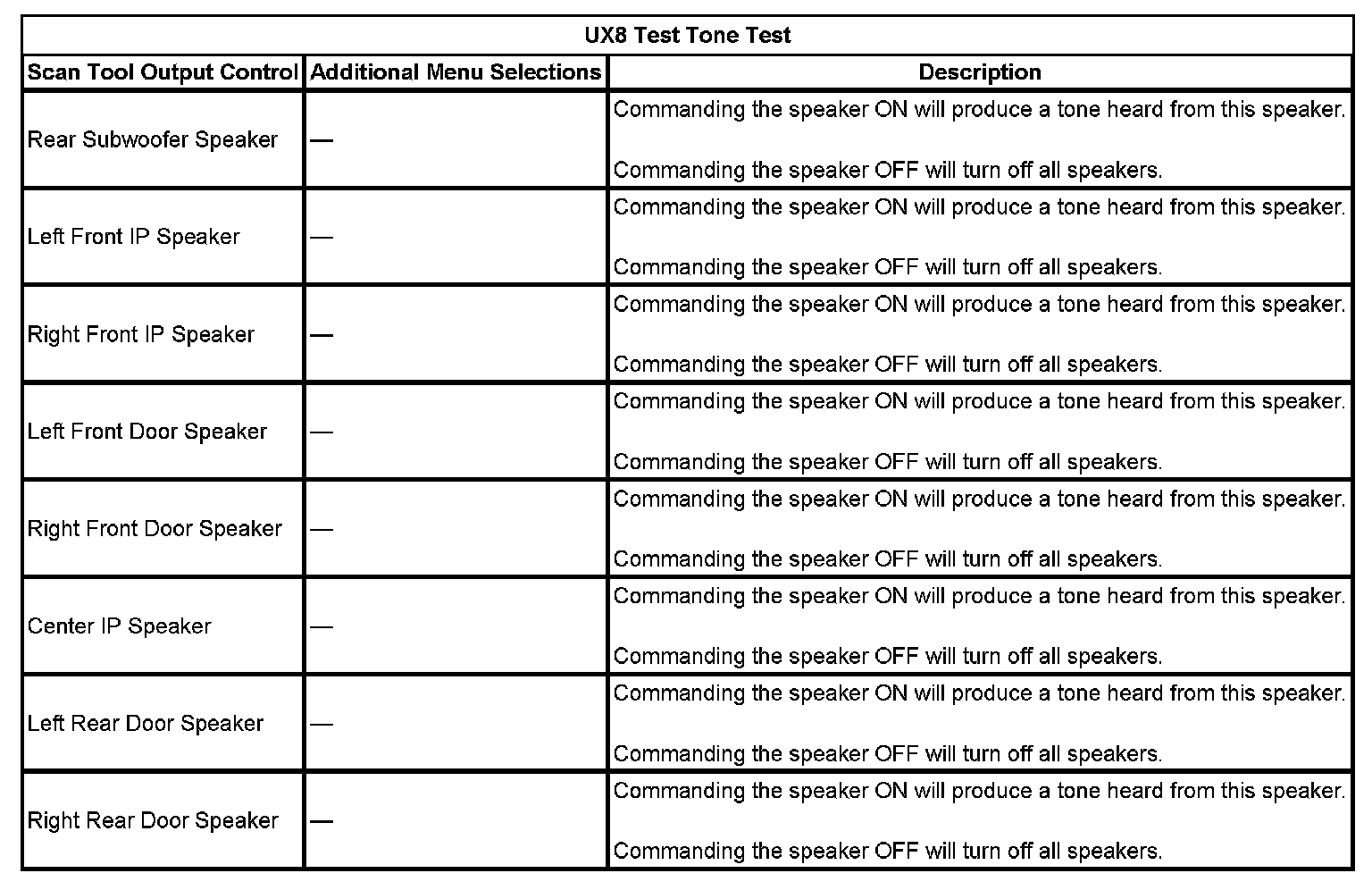

UX8 Test Tone Test:

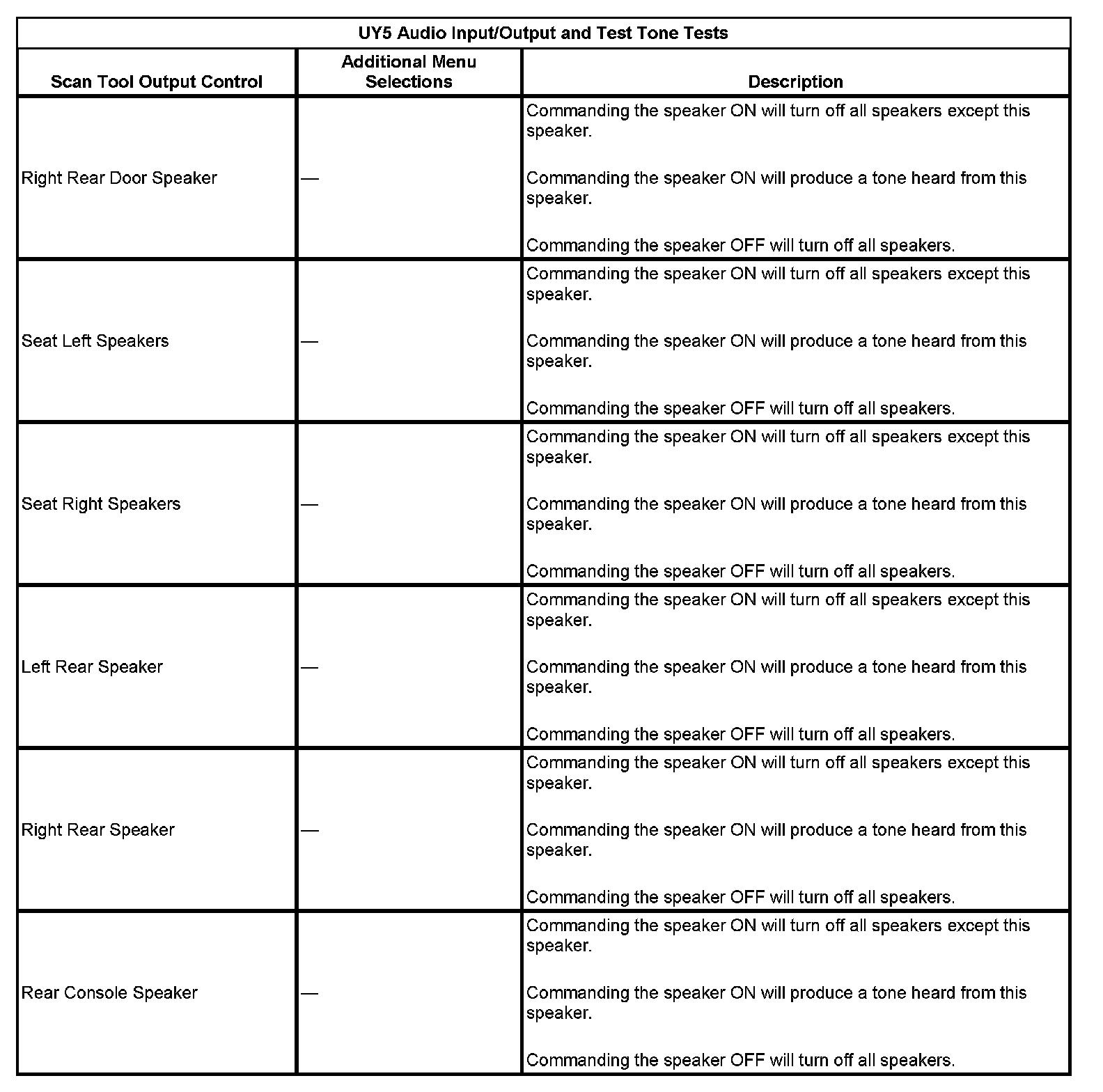

UY5 Audio Input/Output And Test Tone Tests:

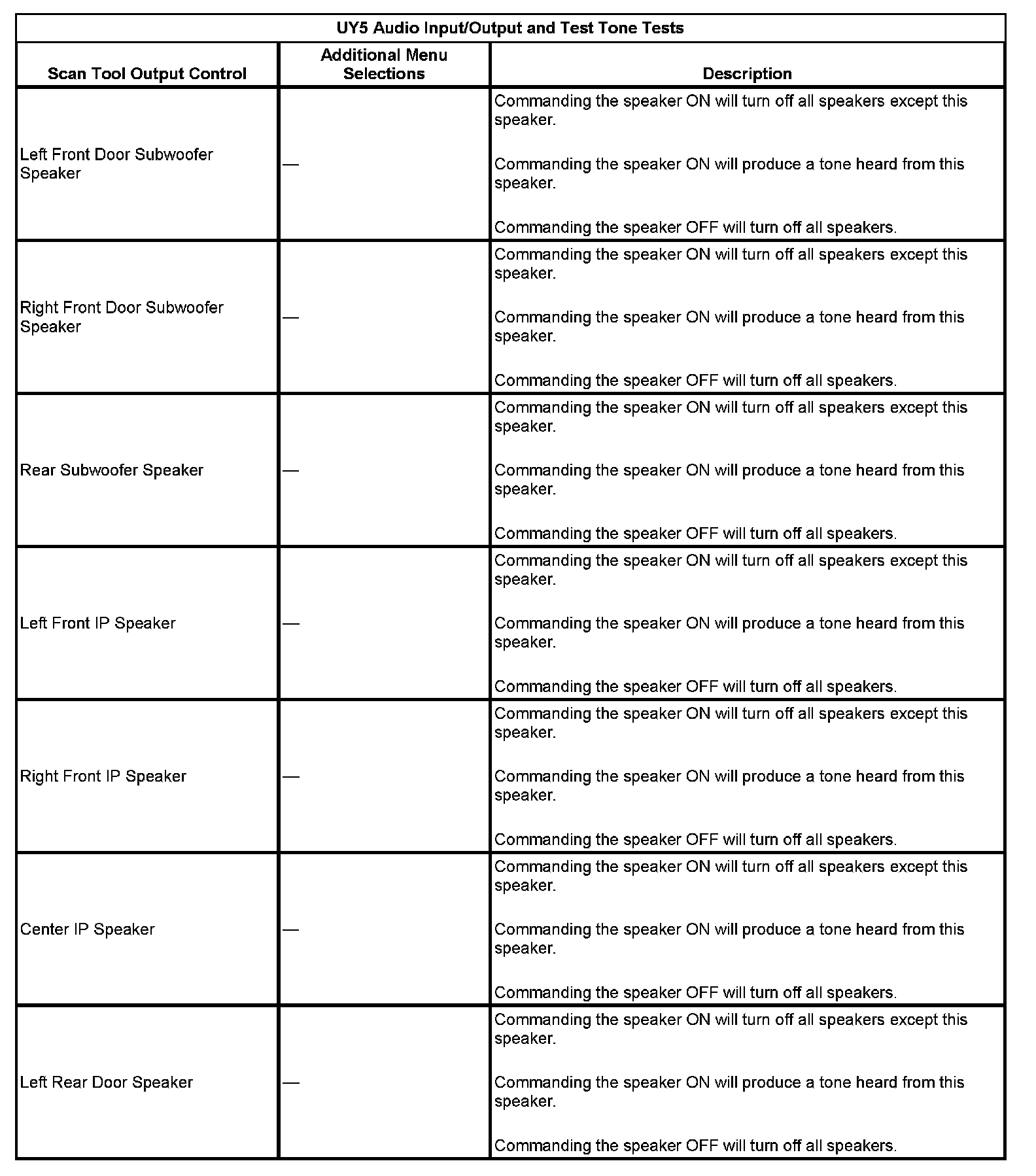

UY5 Audio Input/Output And Test Tone Tests:
