Convertible Top
>>
Folding Top Front Compartment

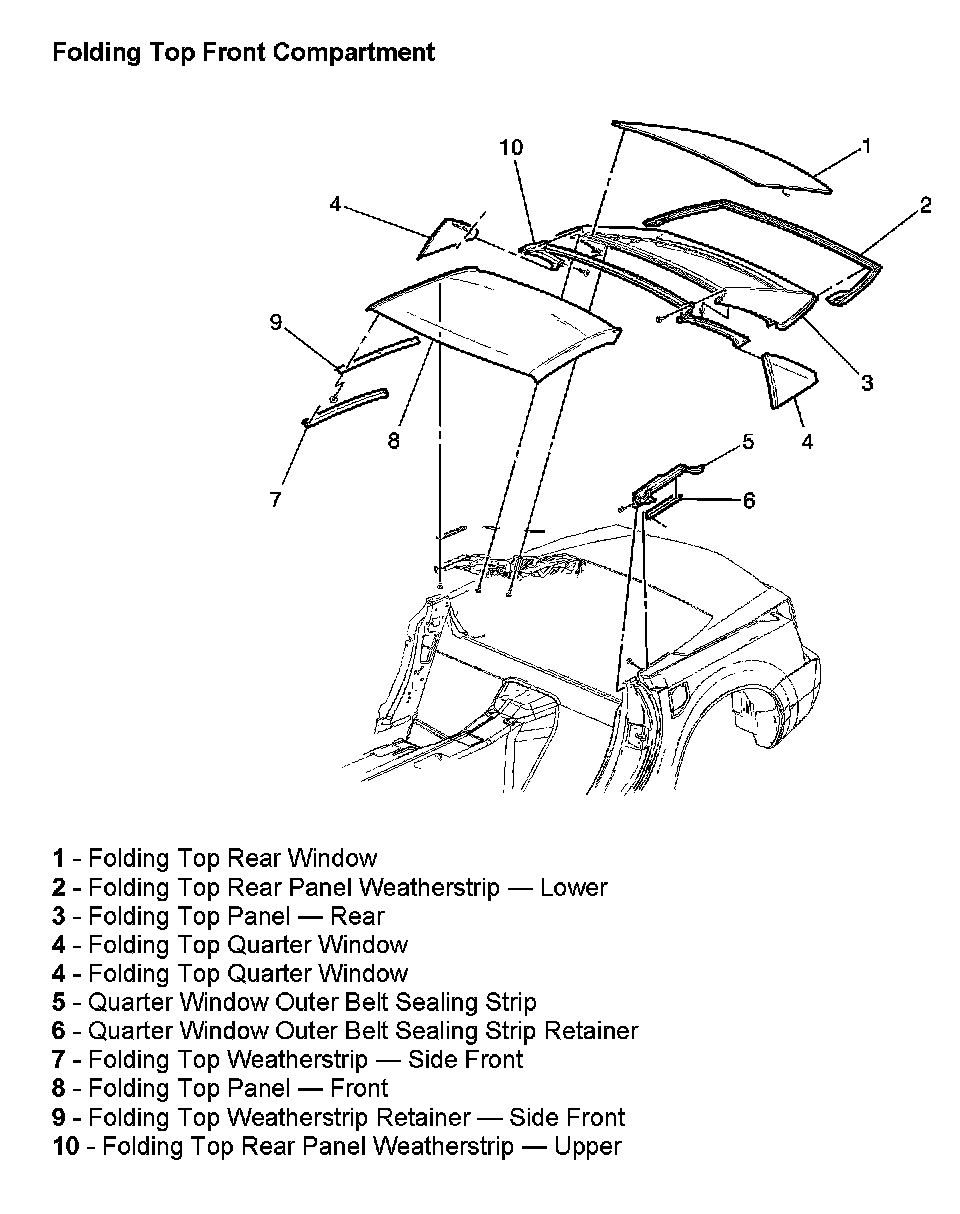

Folding Top Front Compartment
Folding Top Front Compartment:
