Tie Rod End: Service and Repair

Rack and Pinion Outer Tie Rod End Replacement (LY7)

Tools Required

J 24319-B Steering Linkage and Tie Rod Puller

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel.

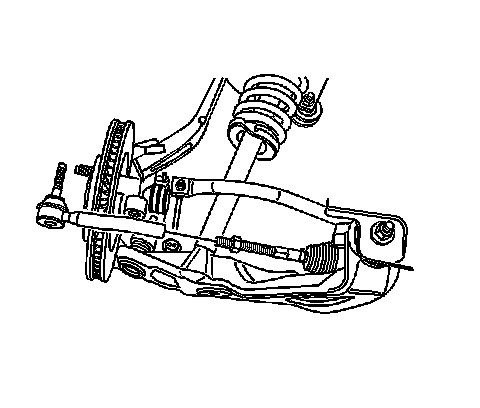

3. Loosen the outer tie rod jam nut (1).





4. Remove the outer tie rod retaining nut.





5. Using J 24319-B disconnect the outer tie rod from the steering knuckle.





Important: Note the number of turns during removal for installation.

6. Remove the outer tie rod from the inner tie rod.

Installation Procedure





Important: Use the same number of turns that was used during removal.

1. Install the outer tie rod to the inner tie rod. Do not tighten the jam nut at this time.





2. Connect the outer tie rod to the steering knuckle.

Notice: Refer to Fastener Notice.

3. Install the outer tie rod retaining nut.

Tighten the nut to 70 N.m (52 lb ft).

4. Install the tire and wheel.
5. Lower the vehicle.
6. Adjust the front toe. Refer to Front Toe Adjustment.
