Interior - Buzz Noise From Choke Relay

85-115
6C
AUG., 1985
Subject: CHOKE RELAY BUZZ
Model and Year: 1982-85 CELEBRITY & CITATION WITH LE2 AND LH7 2.8L V6 ENGINE
TO: ALL CHEVROLET DEALERS
Some vehicles may exhibit a choke relay "buzz" condition when the ignition key is turned "off" when the A/C heater mode selector is in the "off" position (no blower operation). This condition has been thoroughly investigated and found to be the relay rather than the generator.

This "buzz" condition can be eliminated by replacing the old relay, P/N 14039662, with a new relay, P/N 14089568, which has a diode in series with the relay coil.

This new relay is an interim release for the 1985 models.

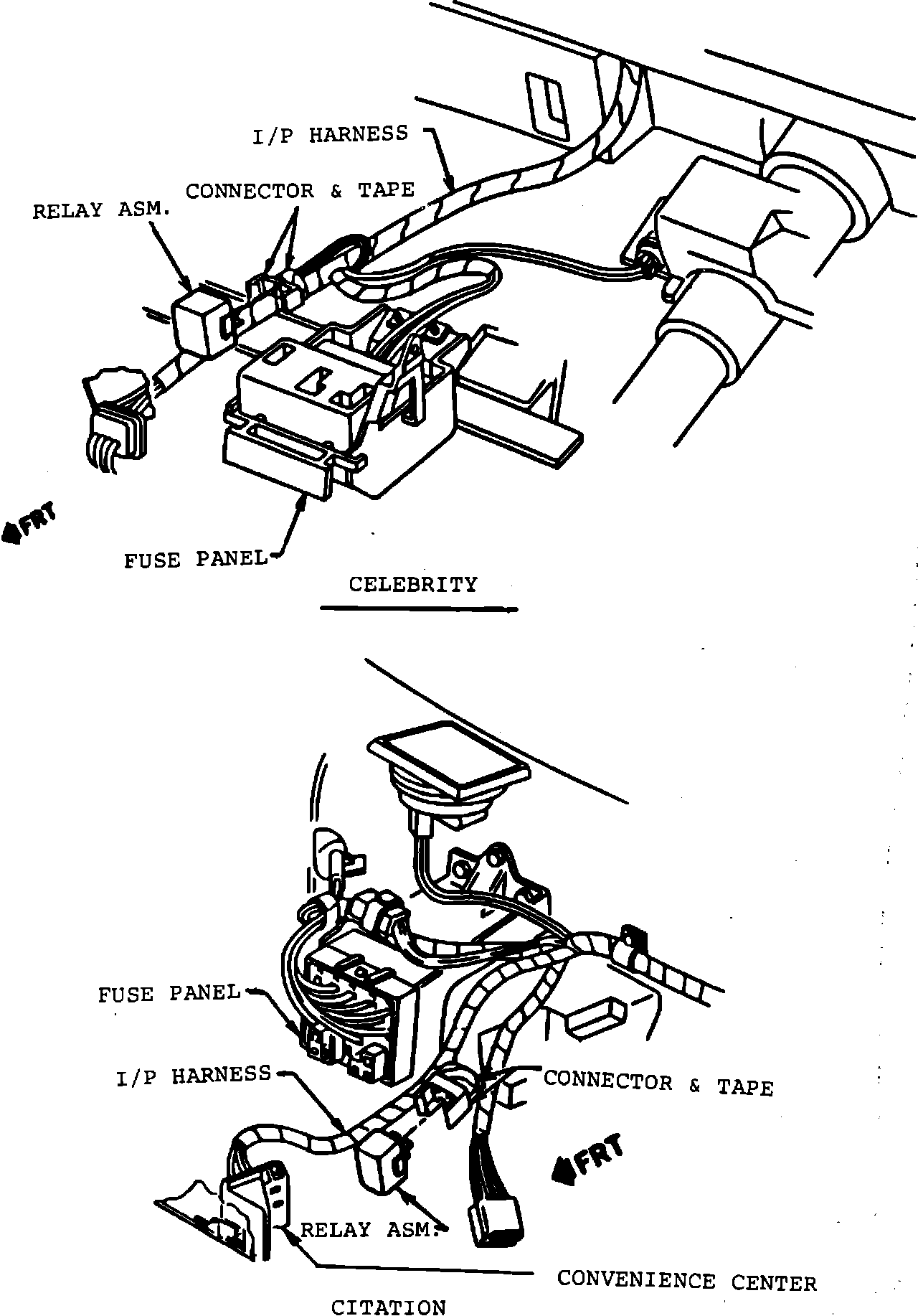

ILLUSTRATION:

The illustrations show the location of choke relay of both Celebrity and Citation.
