A/T - No Reverse or Neutral to Reverse Delay Engagement

Number: 83-T-87

Section: VII C

Date: September, 1983
Subject: No Reverse or Neutral to Reverse
Delayed Engagement 1980-1983 THM 125/125-C

CLUTCH ASSEMBLY:

Some 1980 thru 1983 THM 125/125-C transaxles may exhibit a no reverse or neutral to reverse delayed engagement condition.

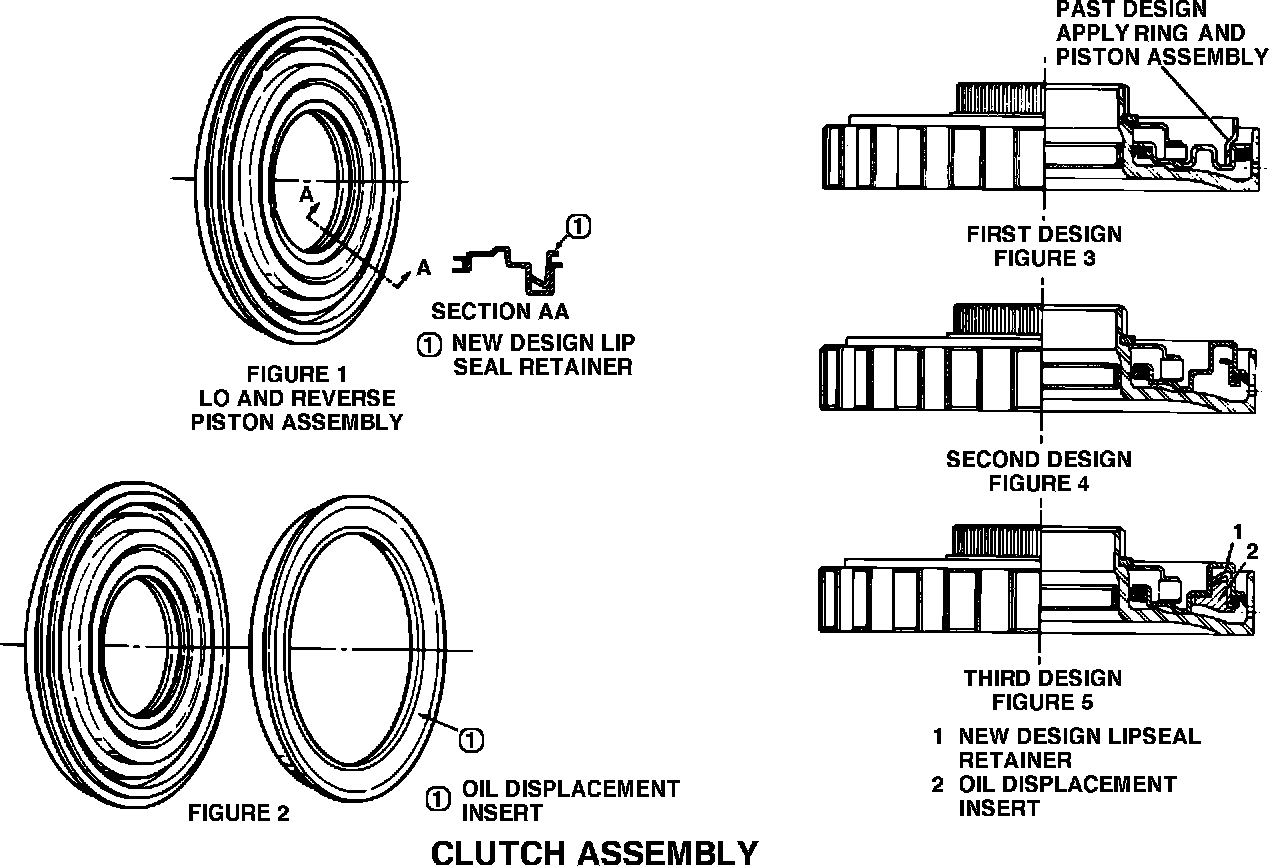

To correct these conditions, two changes in the low and reverse clutch assembly were introduced in late March 1983. The low and reverse piston assembly is being produced with a third design lip seal retainer and an oil displacement insert was added to the low and reverse clutch assembly. This insert displaces oil and quickens the apply of the low and reverse clutch.

When servicing any 1980 thru 1983 THM 125/125-C transaxle for a no reverse or a neutral to reverse delayed engagement, refer to the following chart:
Type of Low and
Condition Reverse Clutch Asm. Correction

No reverse - Lip Seal Replace the low and re-
Retainer has separated verse clutch assembly
from the low and reverse First Design with Service Package
piston assembly #8653915. Also add
the oil displacement insert (part number 8643490

Neutral to Reverse First Design Replace the low and re-
Delayed Engagement verse clutch assembly
with Service Package #8653915. Also add the oil displacement insert (part number 8643490)

No Reverse - Lip Seal Replace the second de-
Retainer has separated sign low and reverse
from low and reverse Second Design piston with a third
piston assembly design low and reverse
piston (part no. 8653916)

Neutral to Reverse Second Design Add the oil displacement
Delayed Engagement insert (part No.
8643490) to the low and
reverse clutch assembly
