Home
>>
Chevrolet
>>
1983
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Brake Warning Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

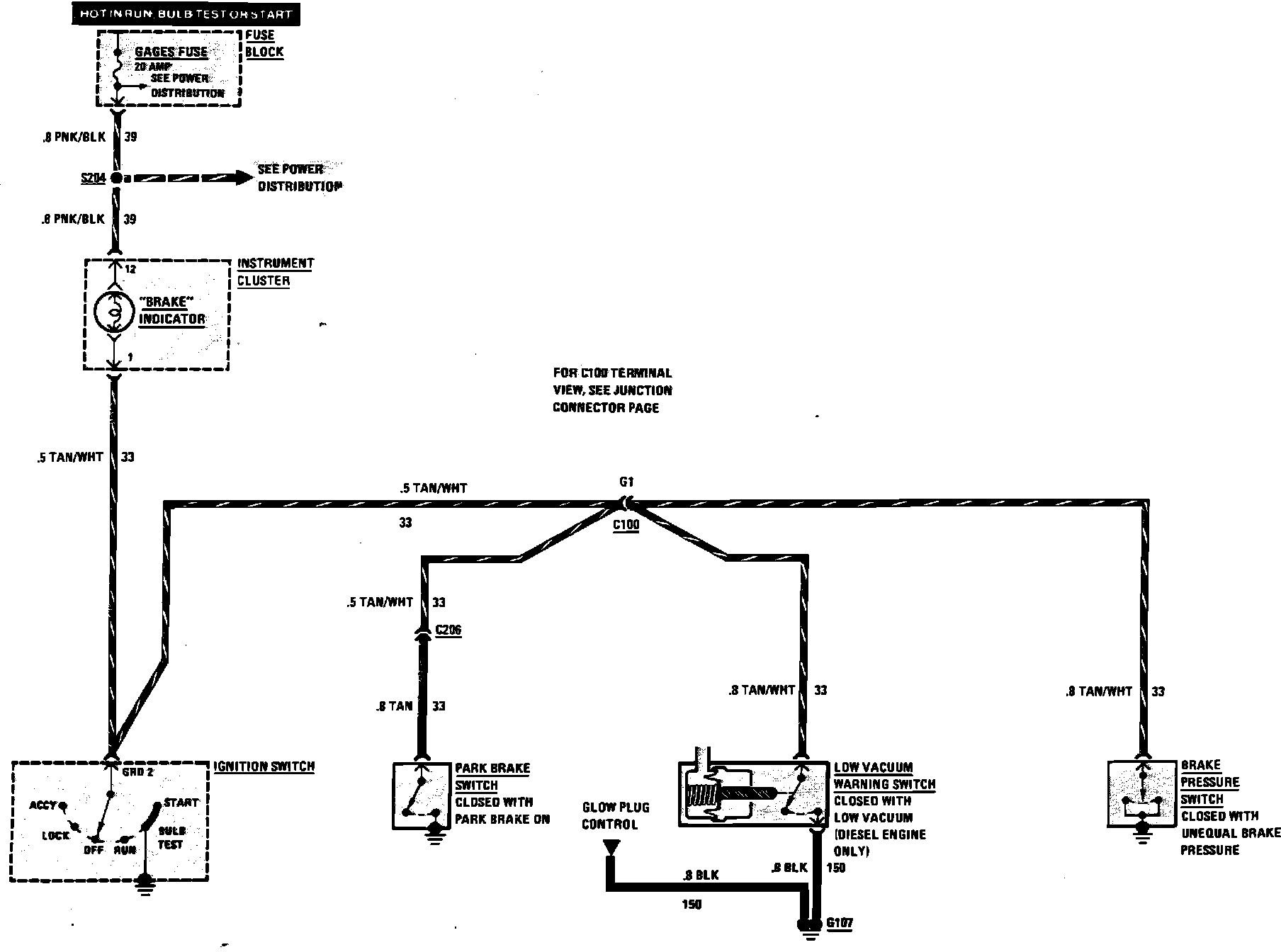

Brake & Low Vacuum Warning System Wiring Circuit:
